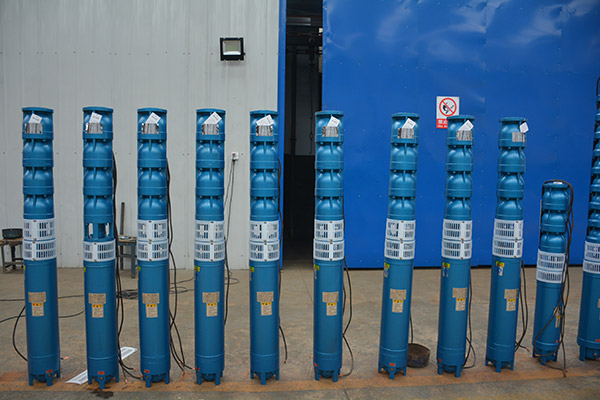

15KW 20HP 80M3/H 40M Lift Head Submersible Deep Well Pump

250QJ80-40 15KW 20HP 80M3/H 40M Lift Head Submersible Deep Well Pump Date

Pump Type: 250QJ80-40 Submersible Deep Well Pump
Rated Flow: 80 m3/h
Rated Head: 40m
Power: 15 kw
Voltage: 3 phase 380V
Frequency: 50Hz
Pump Diameter: 234mm
Out Diameter: 100mm
Material of Pump: cast iron body, 45# or 3Cr13 stainless steel shaft
Cable: 3m copper wire standard cable
Max. Immersion depth: 200m
Protection: IP68
Nos. of start per hour: max 20 at regular intervals.
Sand slinger and lip seal.
Insulation: Class F
Rated ambient temperature: 30°C with min.
Cooling flow 0.08 m/s of water flow speed
Standard installation position: vertical and horizontal
Installtion Accessorie/Set: 4 inch (Well plate,holder, short pipe, outlet pipe,elbow)

Control Panel:

Type: CP18.5KW
Start Ways: soft start
Control Way: one bye one
Power: 18.5kw

15KW 20HP 80M3/H 40M Lift Head Submersible Deep Well Pump Manufacturer

Our large stockpile and ability let us supply various types of industrial pumps, agricultural pumps, utility pumps, domestic pumps and special application pumps consisting range from 0.8 kw to 750 kw . Shenlong is able to meet the needs of all customers including engineers in construction projects, water supply projects, agricultural projects, water and wastewater projects and salt water projects in the shortest time possible with high quality and a suitable competitive price.
