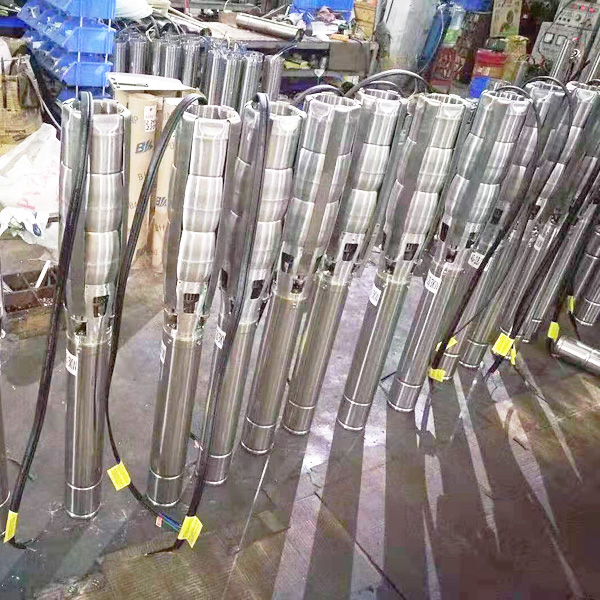

5 Inch Centrifugal Submersible Water Pump

5″ Bore well Submersible Pumpsets are made of hard wearing parts which makes the pumpsets highly durable .Mix flow submersible pumpsets are fitted with stainless steel impellers which ensures better hydraulic efficiency.These pumpsets are fitted with water filled rewindable submersible motors with stators made of low watt loss laminations so as to ensure higher efficiency .Dynamically balanced rotors and specially designed thrust bearings enables vibration and noise free operation with minimum wear and tear. Pumps with 4″ Submersible motor combination are also available on request.

5 INCH STAINLESS SUBMERSIBLE PUMPS

1. All metal materials are 100% SS304, the structure is corrosion resistant, clean and environmental friendly, and will not cause secondary pollution to the water quality.

2. It is equipped with check valve to prevent the impact of backflow water pressure when the electric pump stops. Drain holes can also be set on the check valve seat according to the customer’s needs to slowly drain the water in the pipeline to prevent the pipeline from freezing in winter.

3. All stainless steel impeller has obviously higer wear-resistant and longer service life than the ordinary plastic impeller and brass impeller, so that the pump has high efficiency, good stability and long service life.

4. Stainless steel sand net to prevent sand or large particulate matter into the pump body.

5. Special thrust bearing is installed to effectively prevent the damage in the process of starting the water pump and transportation.

Submersible Deep Well Pumps 5 Inch Diameter

SLAPK 5 inch deep well pump fits 6″ ID casing easily. It is manufactured for an application that requires higher flow or higher head beyond a 4″ pump’s specification.

HP: 10HP
Voltage: 460V Three Phase
Cycle: 60 Hz
Operating Amperage: 14.5 A
Motor RPM: 3450 RPM
Stages: 13
Maximum Head(cut off): 660 ft.
Rated Flow: 50GPM
Maximum Flow(0-200 ft.): 70 GPM
Open Flow vs Depth: 60GPM @ 320ft; 50GPM @ 420ft; 40GPM @ 520ft.
Suction Port: Center Suction
Discharge Port: 2 inch NPTF
Built-in Check-valve: Yes, Stainless Steel
Housing Material: Stainless Steel
Discharge and Suction Port Material: Cast Iron
Impeller Material: Thermal Plastic
Motor Enclosure: Body – Stainless steel; Top – Cast Iron
Duty: Continuous or up to 20 restarting cycles / hour
Control Box: Control Box (Control Panel) Optional
Weight: 95 lbs.
Dimensions/Length: 49.75″

MULTI STAGE CENTRIFUGAL SUBMERSIBLE PUMP 5 INCH – PENTAIR (ITALY)

Model Dominator 5 Inch 140/45B M AUT
Rated voltage 230 V
Motor power 1.1 hp (0.8 kW)
Absorbed power 1.6 hp (1.2 kW)
Max. capacity 140 l/min (8.4 m3/h)
Max. height 50 m
Max. under the water level 17 m
Connections Outlet 1.1/4 inch
Max. liquid temperature 40oC
No load speed 2850 rpm
Pump body Stainless steel



Impellers
Diffusers
Mechanical seal Graphite
Degree of protection IP 68
Insulation class F
Made Italy

Mastra 5 inch stainless steel submersible pump – 5SP series 15 m³/h rated flow centrifugal water pump

Metal parts for 3SP, 4SP, 5SP, 6SP, 8SP and 10SP series of submersible pump such as impeller, diffuser, pump outlet and suction support etc. are made of wearable and anticorrosive stainless steel AISI304 through advanced moulding and punching craft procedures. Rubber bearing is made of wearable rubber with low friction. The connection method between coupler and motor is in compliance with standard of NEMA. Our impeller and diffuser are designed and manufactured according to the requirements of high efficiency, high reliabitity and long service life.

5″ Submersible Pumpset ( 115mm Ø )

State of the art design delivers optimum performance and reliability in the toughest conditions.
Rubber & bronze bearing provide for low friction and high wear resistance.
Easy assembling, dismantling. Easily serviceable pump & rewindable motors
Suction screen and coupling are made of stainless steel.
High pumping efficiency for reduced running costs.
Light weight and compact.

×
