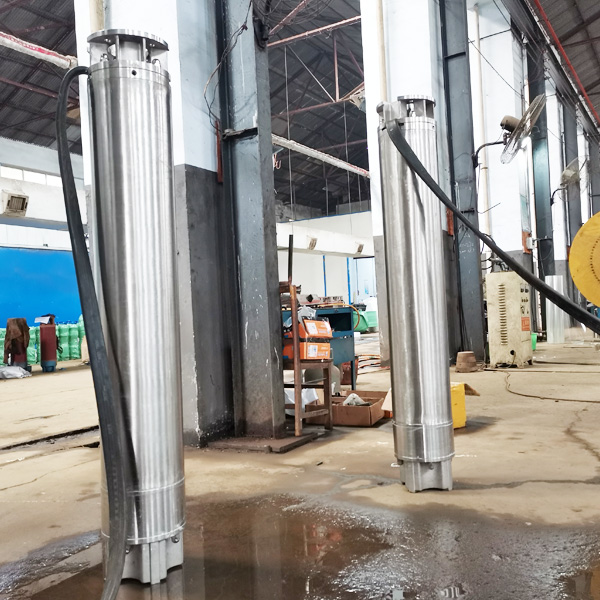

6″ Water Cooling Submersible Electrical Motor NEMA Standard

Degree of protection : IP 68
Insulation Class: B
Ambient temperature : 450C
Minimum Cooling flow along motor:- 15 cm/sec (4.0 kW to 15.0 kW)
30 cm/sec (16.5 kW to 37.0 kW)
Water pH: 6.5 -8.0.
Maximum number of starts per hour : 20
Maximum submerged depth: 350 mts.
Rotation : CCW and CW.
Ratings : Three phase 1.1 kW – 37.0 kW
Motor protection : Select thermal overload protection with trip time < 10 sec. at 5 x ln.
Standard motor cable : Suitable for operation in drinking water.

6″(inch) Water Cooling Submersible Electrical Motor NEMA Standard Description

APK Motors are designed for long service life and years of dependable operation. Innovative design and robust characteristics make this the perfect motor for your pumping applications.

Combined with exceptional insulation and a patented epoxy fill resin, these motors exceed NEMA requirements for high water temperature by 18°F (-7.7°C). Designed with internal lubrication and cooling blend of water, antifreeze, and an antirust mixture, Hitachi submersible motors are unique in providing the industry with innovative and robust design features that will extend the serviceable life of your installation.

6″(inch) Submersible Motors (Water Filled) Features

Easily rewindable (wet wound) submersible motor with PP insulated winding.
Water lubricated radial and axial thrust bearing.
Corrosion resistant Stainless Steel jacket
Non-contaminating water filling.
High efficiency electric design, lower operating cost.
Tropicalized design (Lower winding temperature.)
6” NEMA coupling flange.
Pressure compensation diaphragm.
Continuous duty.

6″ Water Cooling Submersible Electrical Motor NEMA Standard Specifications

MOTOR SLEEVE: Stainless steel construction
CASTINGS: Baked epoxy-coated gray iron
FASTENERS: Stainless steel
SHAFT: NEMA splined stainless steel
FLANGE: NEMA standard type
ROTOR: Double epoxy-coated
THRUST BEARINGS: Kingsbury-type420 stainless steel
MECHANICAL SEAL: Nitrile rubber(NBR), grease packed
DIAPHRAGM: Nitrile rubber
SAND CAP: Polyurethane
SAND SLINGER: Stainless steel
LEAD WIRE / CABLE: Double insulated, heat and water resistant,167°F/75°C, 600V

6 Inch Submersible Motors Manufacturer

APK’s 6-inch submersible motors are typically used in large demanding water wells requiring high flow rates or deeper installations. These motors are tough, built to last, and come in a variety of construction options.

These motors provide large amounts of water for irrigation, community water systems, and factories where large flows or pressures are required. We understand how important it is to produce reliable systems to avoid significant costs due to failure or downtime.

×
