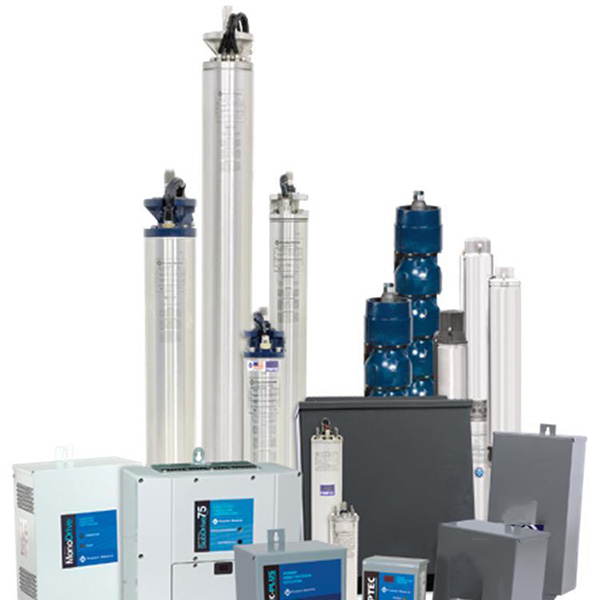

Submersible motor 8 inch 3 phase for deep water well from 40 – 200 hp, three-phase 380 – 575 Volts 60 and 50 Hz. These motors are built for vertical operation in 8” diameter or larger water wells. Temperature and time rating are continuous in 86 °F (30 °C) water at 1/2 ft./sec. flow past motor. Rotation is electrically reversible.
E-mail: marketing@apkpump.com
WhatsApp: +86 175 3718 7726
Submersible motor 6-Lead (Y-D) Designs
316 Stainless Steel Designs
shaft seal standard on 150-200 hp and is an available option on 40-125 hp. All 316SS motors have shaft seal as standard
Non-vertical application designs available
Other voltage and Hz design points available
| MODEL | PRODUCT | kW | HP | PHASE | VOLTS | HZ | SF | LEAD |
| 8″ WATER WELL MOTOR – 3 PHASE (WITH 1 LEAD) | ||||||||
| 2396006021 | 8″ 3P | 30 | 40 | 3 | 460/380 | 60/50 | 1.15/1.0 | DOL (3) |
| 2396016021 | 8″ 3P | 37 | 50 | 3 | 460/380 | 60/50 | 1.15/1.0 | DOL (3) |
| 2396026021 | 8″ 3P | 45 | 60 | 3 | 460/380 | 60/50 | 1.15/1.0 | DOL (3) |
| 2396036021 | 8″ 3P | 55 | 75 | 3 | 460/380 | 60/50 | 1.15/1.0 | DOL (3) |
| 2396046021 | 8″ 3P | 75 | 100 | 3 | 460/380 | 60/50 | 1.15/1.0 | DOL (3) |
| 2391056004 | 8″ 3P | 100 | 125 | 3 | 460/380 | 60/50 | 1.15/1.0 | DOL (3) |
| 2391068504 | 8″ 3P | 110 | 150 | 3 | 460/380 | 60/50 | 1.15/1.0 | DOL (3) |
| 2391078504 | 8″ 3P | 130 | 175 | 3 | 460/380 | 60/50 | 1.15/1.0 | DOL (3) |
| 2391088504 | 8″ 3P | 150 | 200 | 3 | 460/380 | 60/50 | 1.15/1.0 | DOL (3) |
The Franklin submersible pump utilizes high grade stainless steel materials for the most demanding applications. Its stainless steel impellers and diffusers are made to resist corrosion. Heavy duty stainless steel shell assures permanent alignment of all components to increase longevity and enables higher pressures than strap designs. PTFE floating wear ring, ceramic bearing journal and Nitrile rubber fluted bearing ensure durability against wear for long-lasting performance and reliability. This pump is suitable for operation in a horizontal position, and has a space saving compact design. It is also easy to install as well as dismantle for service in the field if necessary.
-Model: Franklin 400SR100S86-1384
-Horsepower: 100 HP 8″ Motor Required
-Material: 316 Stainless Steel
-Gallons Per Minute: 400
-Stages: 13
-Discharge Size: 4″ NPT
-Model: Franklin 275STS125D8X-1286 #97080275912 Submersible Turbine Pump
-Horsepower: 125 HP 8″ Motor Required
-Gallons Per Minute: 275
-Stages: 12
-Discharge Size: 6″ NPT
-Model: Franklin 275STS125D8X-1284 Submersible Turbine Pump
-Horsepower: 125 HP 8″ Motor Required
-Gallons Per Minute: 275
-Stages: 12
-Discharge Size: 4″ NPT
-Model: Franklin 475SR100S86-1186
-Horsepower: 100 HP 8″ Motor Required
-Material: 316 Stainless Steel
-Gallons Per Minute: 475
-Stages: 11
-Discharge Size: 6″ NPT
-Model: Franklin 475SR125F86-1486
-Horsepower: 125 HP 8″ Motor Required
-Material: 304 Stainless Steel
-Gallons Per Minute: 475
-Stages: 14
-Discharge Size: 6″ NPT
Standard or Nonstandard:Standard
Pump Housing:SS 304+Iron Cast
Pump Impeller:Axial Flow(Aluminum Bronze)
Pump Seal:Double Mechanical Seal
Motor:Dry Type Submersible Induction Motor, 4 Pole
Protection Class:IP 68
Motor Type:Induction motor,Isulation Class F
Submerged Depth:5m
Warranty:1 Year
Application:Irrigation and Agriculture
Application:Water Distribution
Power Source:Electric
Structure:Propeller Pump
Certification:ce
Certification:Coc
Place of Origin:CN
Brand Name:SLAPK OR OEM
Model Number:L-200A
Outlet Size:8inch/200mm
Voltage:380v or customized
Power:5.5kw
