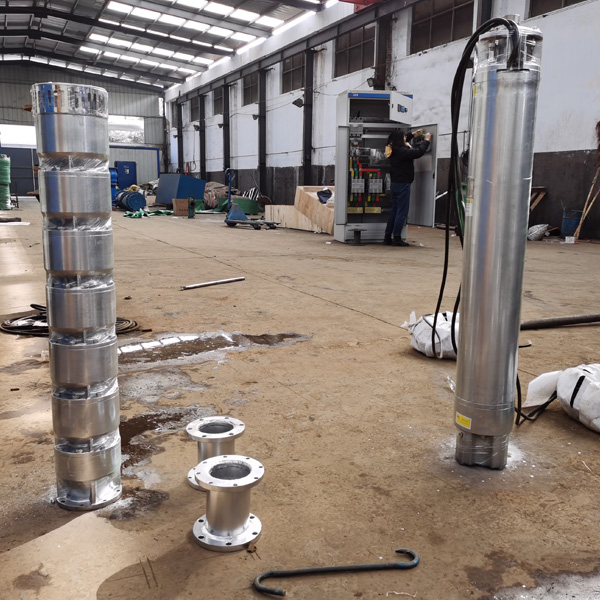

8 Inch Heavy Duty Deep Well Submersible Pump

30HP TS8-450-03 460V 3-Phase, 8″ Pump-end and 6″ Motor, Stainless Steel Impellers

HP: 30HP
Voltage: 460V Three Phase
Cycle: 60 Hz
Operating Amperage: 35.4A
Motor RPM: 3450 RPM
Stages: 3
Maximum Head (cut off): 300 ft.
Maximum Flow( 0-100 ft.): 580 GPM
Rated Flow: 450GPM
Free Flow Rate: 500GPM @ 175ft; 450GPM @ 195ft; 400GPM @ 202ft; 300GPM @ 238 ft; 200GPM @ 260ft.
Suction Port: Center Suction
Discharge Port: 5 inch NPT Female
Built-in Check-valve: Yes, S.S. 304
Housing Material: Stainless Steel 304
Impeller Material: stainless steel 304
Motor Enclosure: Stainless steel 304
Discharge and Suction Port Material: Stainless Steel 304
Motor Bearing / Lubrication: Water lubricated thrust bearing, water filled lubrication(user must fill up distilled water into motor)
Duty: Continuous or allow maximum 15 restarting cycles / hour
Control Box: Three phase power switch with overload protection is required(not included)
Net Weight: 230 Lbs.
Shipping weight: 280 Lbs. (ship with LTL Freight only, see detail)
Dimensions/Length(pump and motor assembly): 76″ (190cm)

Complete nominal 8″ pump end with 6″ motor bracket, and 6″ motor.

Fit 8″ ID well casing, overall maximum diameter is 7 inches.

Control box (control panel) is not mandatory, but a three phase power switch with overload protection is required.

8″ All Stainless Steel Submersible Water Well Pumps

The all stainless steel 8″ WS Series is made entirely of corrosion and abrasion resistant stainless steel and is designed for efficient, dependable performance to ensure a long and trouble free life span.

An excellent choice for use on the most demanding residential, commercial and municipal jobs.

Heavy duty, built in check valve for maximum performance and longer life.

Motor mounting specification is in accordance with NEMA standards.

8 Inch Submersible Deep Well Water Pumps For Sale

As for 8 inch borehole pumps, we have many detailed models and specifications for sale. They differ on their motor power, head and flow capacity. Each of them fits various using situation. We promise to offer you the highest quality 8 inch borewell water pumps. There are two types of pump shafting, one is cast iron 8 inch submersible pumps, and the other is stainless steel 8 inch submersible pumps. Cast iron type is famous for its wear resistance. For preventing it from corrosion, we paint special corrosive resistance materials on pump casting and thus it is able to resist corrosion for quite a long time. Besides, stainless steel type is excellent in corrosive resistance, so it can be used for transferring light corrosive fluid and hot water.

Submersible pump-end 8 inch SR Series from Franklin Italia made

Submersible pump-end 8 inch SR Series up to 97 m3/h designed for industrial and agricultural applications, the SR Series submersible pump utilizes high grade stainless steel materials for the most demanding applications.

Designed for industrial and agricultural applications, the SR Series 8 inch submersible pump-end up to 97 m3/h. Submersible pump utilizes high grade stainless steel materials for the most demanding applications.

8 inch submersible pump-end for deep water well SR series

Energy efficient hydraulic design for cost effective operation. 8 inch submersible pump-end integrated Teflon floating wear ring, ceramic bearing journal and Nitrile rubber fluted bearing ensure durability against wear for long-lasting performance and reliability.
