1. Capacity : up to 1000 m3/h
2. Head : up to 800m
3. Speed : 1450rpm to 3600rpm
4. Power : up to 600kw
5. Voltage : 220V to 480V
6. Temperature range : Within 80 Deg C
7. Sump depth : ≤100m
E-mail: marketing@apkpump.com
WhatsApp: +86 175 3718 7726
Flow: 46-432m3/h
Lift: 17-460m
Well diameter: 10 inch(250mm)
Power: 13kw-220kw
Temperature: ≤105℃
Material: Stainless steel or cast iron
25hp clean water submersible pump is powered by electricity, AC submersible motor normally. If you or your clients would like to powered by solar panels, connecting an inverter from AC to DC.
25hp water submersible pump is pumping clean water or sea water, from deep well, river, tank, vessel, reservoir, lake and so on, which applied for agricultural farmland irrigation, hills and mountain, mine industry, clean drinking water, fountain projects.
| Model | Motor Power | Flow Range | Head Range | |
| QJ(H) Series | kw | hp | m3/h | m |
| 200QJ(H)20-175/13 | 18.5 | 25 | 18-22 | 150-210 |
| 200QJ(H)25-154/11 | 18.5 | 25 | 23-27 | 138-184 |
| 200QJ(H)32-117/9 | 18.5 | 25 | 29-35 | 90-132 |
| 200QJ(H)40-104/8 | 18.5 | 25 | 37-43 | 89-124 |
| 200QJ(H)50-78/6 | 18.5 | 25 | 46-54 | 63-93 |
| 200QJ(H)80-55/5 | 18.5 | 25 | 74-86 | 47-63 |
| 250QJ(H)50-80/4 | 18.5 | 25 | 46-54 | 68-92 |
| 250QJ(H)63-60/3 | 18.5 | 25 | 58-68 | 51-69 |
| 250QJ(H)125-32/2 | 18.5 | 25 | 116-134 | 27-37 |
| 250QJ(H)140-30/2 | 18.5 | 25 | 130-150 | 26-34 |
| 300QJ(H)200-20/1 | 18.5 | 25 | 186-214 | 17-23 |
1. External casing : Cast Iron ; Cast Steel ; SS AISI 304 316 316L ; Bronze
2. Impeller : Cast Iron ; Cast Steel ; SS AISI 304 316 316L ; Bronze
3. Diffuser : Cast Iron ; Cast Steel ; SS AISI 304 316 316L ; Bronze
4. Wear ring : Cast Steel ; SS AISI 304 316 316L ; Bronze
5. Shaft AISI : SS AISI 304 316 316L 420 430; UNS2205
6. Delivery casing : Cast Steel ; SS AISI 304 316 316L ; Bronze
7. Suction lantern Forged brass
8. Strainer : SS AISI 304 316 316L
9. Motor-External casing AISI 304 316 316L
10.Bearing bracket forged brass
11.Seal lubrication oil oil food machinery and pharmaceutics use
12.Motor: The pumps are coupled directly to an asynchronous, high efficiency DAFU induction motor of suitable size, which is quiet running, closed and externally ventilated, suitable for continuous duty.
13.Insulation class B.
14.The thermal cutout relay (motor protector) is incorporated in single phase motors.
15.Protection IP 68.
16.Delivery casing with built-in non-return valve
17.Voltage and frequency available on request.

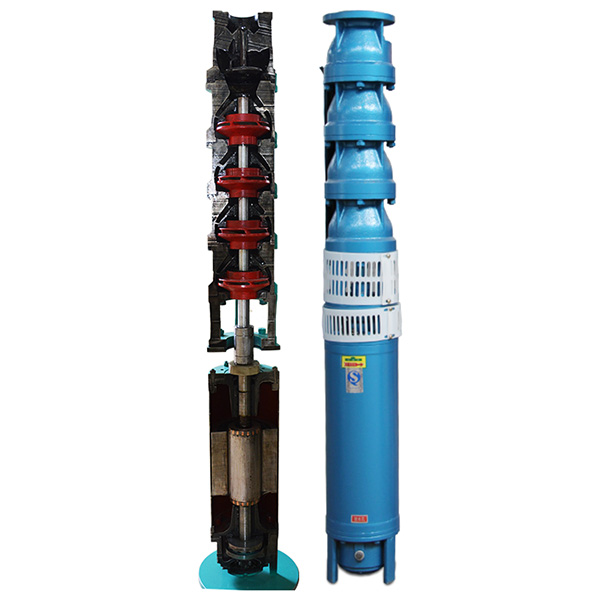

At present, submersible pumps can be divided into two branches according to their appearance, one is cast iron submersible pumps, the other is stainless steel submersible pumps.
Pumps covered by iron have great toughness and are high wearable. On the contrary, stainless steel cast pumps can well avoid the risk of being rusted when used for a long time, and they can better resist hot water and corrosion.
As for appearance, cast iron submersible pumps can be painted into different colors to make a division, usually submersible water well pumps are painted blue and submersible sewage pumps black, so we could make clear about their sorts from appearance. However, stainless steel submersible pumps are normally silver gray, they are designed to be more good looking, simple and elegant. Both of them weight the same, so you could choose one of them or both for different needs.
There are many cast iron water pump for sale now in our company, if you have the intention to buy or have any questions about our products and our company, please leave your message below, we will contact you as soon as possible.
