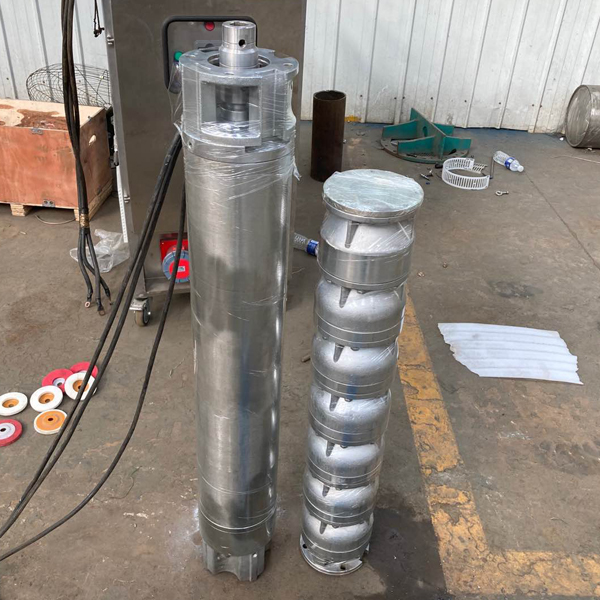

Electric Submersible Pump Clean Water 20HP

20hp Electric Deep Well Pump

Our submersible well water pump uses water cooler 3 phase submersible motor, clean water is filled in for cooling down heated motor and lubricating shaft bearing. Pressure regulating film at the bottom of motor is used to adjust inflation water pressure difference inside caused by increasingly heated motor. Oil filled motor and water filled motor, two types.

QJ series submersible pump including QJ deep well (borehole) submersible pumps, QJH stainless steel submersible pumps, QJT bottom-suction submersible pumps and QJR hot water submersible pumps.

Submersible Pump Motor (20 HP, 3 Phase, 460 Volts, 6″ Diameter)

6-inch submersible motors are typically used in large demanding water wells requiring high flow rates or deeper installations. These motors are tough, built to last and come in a variety of construction options.

Electric 6″ Submersible Motors Basic Features

Double Flanged NEMA Mounting Design
Stainless Steel Splined Shaft
High-Capacity Kingsbury Type Water Lubricated Thrust Bearing
Full 3450 RPM 60 Hz Design Point
External Sand Slinger on Shaft
Mechanical Face Seal at Shaft Exit
Copper Bar Rotor
All Models Variable Frequency Drive (VFD) Compatible
316 Stainless Steel: Special Construction Option for Acid, Low PH and Seawater Applications. All 316 SS Motors Included a Subtrol Heat Sensor.
Sand Fighter:Models Include Subtrol Heat Sensor on 40, 50 and 60 HP Models.

20HP 15kw submersible pump for sale

Submersible borehole pump, suitable for pumping clean water. Can be installed vertically or horizontally. All steel components are made in stainless steel, EN 1.4301 (AISI 304), that ensures high corrosive resistance. This pump carries drinking water approval. The pump is fitted with a 15 kW motor with sand shield, mechanical shaft seal, water-lubricated journal bearings and a volume compensating diaphragm. The motor is a canned type submersible motor offering good mechanical stability and high efficiency. Suitable for temperatures up to 40 °C.

20HP Electric Submersible Pump Manufacturer

Reliable and cost effective pumps enable SLAPK to remain an industry leader in the Rental and Construction markets. All SLAPK electric submersible pumps are built for continuous duty with pump models available for every type of application. From clean water to dirty water and everything in between SLAPK is sure to have a pump that will fit your needs. Included in SLAPK pumps product mix are clean water pumps, sump pumps, trash pumps, slimline pumps, automatic pumps, and low level pumps that will pump down to floor level. Our customers know that while many pumps may look the same, only SLAPK incorporates the most durable components into the final manufactured product.
