Water Pump Direct Sale
Professional Submersible Pump Manufacturer
Water Pump Direct Sale
Professional Submersible Pump Manufacturer
Structure: multistage Material: cast iron/stainless steel
Capacity: 2-1000 m3/h Head: 10-1000 m
Motor power: 0.55kw-400kw Rated voltage:380v/660v
Easy to install, operate and maintain, less space demand, no pump house needed
Simple structure, less cost, Submersible
E-mail: marketing@apkpump.com
WhatsApp: +86 175 3718 7726
Submersible pump for the single-suction multi-stage vertical centrifugal pump: submersible motor for the closed water-filled wet, vertical three-phase cage asynchronous motor, motor and pump through the claw or single drum coupling directly; equipped with different specifications of the three Core cable; starting equipment for different capacity levels of air switch and self-decompression starter, the water pipe for the different diameter of the steel pipe made of flange connection, high-lift pump with gate control.
Before opening the pump, the suction pipe and pump must be filled with liquid. After the pump is pumped, the impeller rotates at high speed, and the liquid rotates with the blade.
Under the action of centrifugal force, it leaves the impeller outward and the liquid is gradually slowed down and the pressure gradually increases from the pump Export, discharge pipe outflow.
At this point, at the center of the blade at the center of the liquid is thrown to the surrounding and the formation of both no air and no liquid vacuum low pressure area, liquid pool in the pool of atmospheric pressure under the action of the suction pipe into the pump, the liquid is so continuous Constantly being sucked up from the liquid pool and continuously flowing out of the discharge pipe.
Due to the multi-stage impeller structure, the series of submersible water pumps for deep well have high lift head and wide application range. They are widely used in farmland irrigation and drainage, garden sprinkler irrigation, underground water pumping, water tower water supply and other occasions.

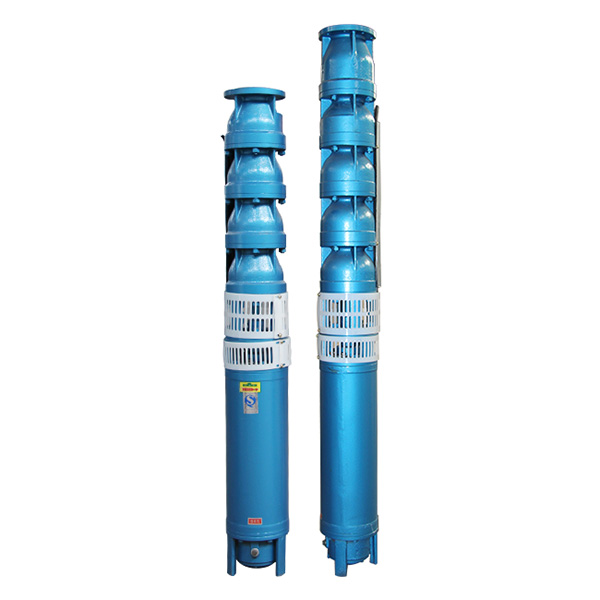

High Pressure Deep Well Water Pump , Borehole Submersible Pump Deep Well Large Capacity
Submersibler Deep Well High Quality Pump is one of the most popular products in SLAPK. Both our products and service have attracted many customers all over the world.
Over 30 years experience of manufacturing pumps and motors .
100 percent copper wire.
100 percent testing system.
Frontier technology.
The motor starts up low voltage and the current is far less than traditional hardware startup technology.
Professional International Trade Sales Team, superior customer care.
