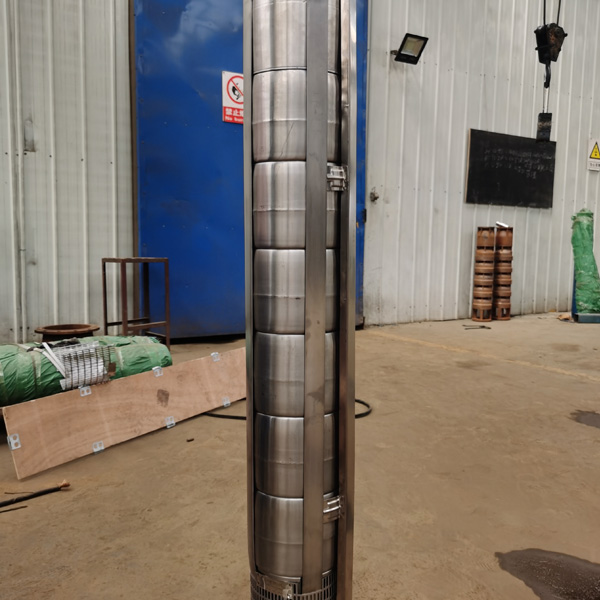

Industrial 4 Inches Submersible Well Pump

4 Inch Deep Well Pumps

This 4 Inch Submersible Pump is the most economical, energy-efficient pump for 4″ wells or larger. It provides the optimum amount of water and pressure for general home and farm use.

The SP series includes 4 inch submersible well pumps that cover a wide range of features. From high head to high flow, we’re sure you can choose a pump that suits your needs.

The single phase 3-wire well pump package comes with a pump-end, motor and a corresponding control box; 2-wire pump does not require a control box; Three phase package comes with a pump-end and a 3-phase motor, control panel is not included.

Continue the selection process by choosing a voltage and phase that you have available. Be sure to choose the correct voltage and phase.

Industrial 4 Inches Submersible Well Pump Features & Benefits

Designed for durability and reliability, 4” submersible pump models carried by SLAPK feature stainless steel construction, impellers engineered to resist abrasion from sand, FDA compliant non-metallic parts, and are built for longevity and field serviceability.

Four performance ranges: 35, 45, 60, and 90 gpm
2″ NPT discharge, with and without an internal stainless steel wafer-style check valve
Stainless steel discharge head and motor bracket
High flow hydraulic staging allows for maximum pump output, exceeds all energy efficiency standards, and provides increased product longevity
Ceramic shaft sleeve and rubber discharge bearing eliminates sand wear
Intermediate bearing for increased shaft stability when pump lengths dictate on high horse, high performance constructions
Impeller eye and hub seals for improved performance and efficiency
Stainless steel hex pump shaft, shell, and shaft coupling
High capacity upthrust assembly for protection during start-up and operation (35, 45, 60, and 90 gpm models)

4 Inch Agriculture Irrigation Deep Well Pump System

The main part of pump is made of stainless steel and copper alloy with characters of high efficiency, energy-saving, high wear resistance, anti-rust, beauty appearance and easy installation. Suit for domestic, civil and industrial applications, including for the water supply irrigation, wash down system and pressure boosting.

Industrial 4 Inches Submersible Well Pump Operating Condistion

Minimum well diameter: 3.5″
Maximum fluid temperature up to: +35 ºC
Maximum sand content: 0.25%
Maximum immersion depth: 80m

Industrial 4 Inches Submersible Well Pump Specifications

Rewindable motor or fully enclosed shielding motor
Single-phase: 220V-240V/50Hz
Three-phase: 380V-415V/50Hz
Dimension complied with NEMA standard
Curve tolerance accord with ISO9906
