Power: 1.1kw-7.5kw (1hp-10hp)
Flow: 10-250m3/h
Head: 6-121m
Material: cast iron/stainless steel 304/316/316l
Install: vertical or horizontal
E-mail: marketing@apkpump.com
WhatsApp: +86 175 3718 7726

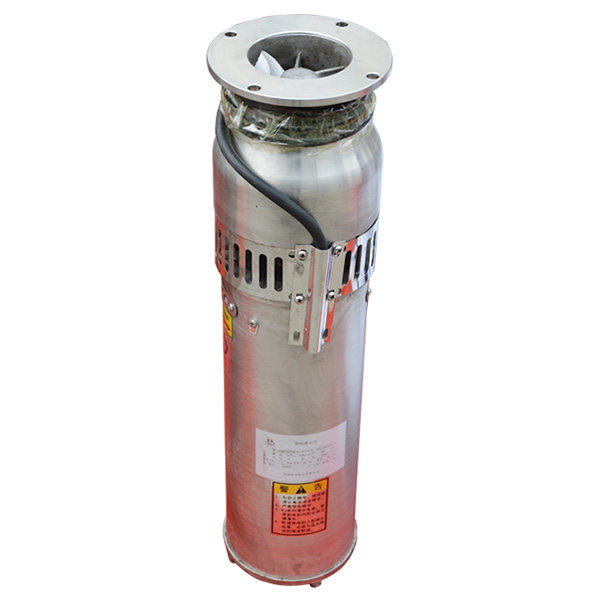

| Model | Flow | Head | Power | Discharge Dia. |
| QS series | m3/h | m | kw | mm |
| QS15-14-1.1 | 15 | 14 | 1.1 | 50 |
| QS40-6-1.1 | 40 | 6 | 1.1 | 80 |
| QS25-9-1.1 | 25 | 9 | 1.1 | 65 |
| QS25-12-1.5 | 25 | 12 | 1.5 | 65 |
| QS40-9-1.5 | 40 | 9 | 1.5 | 80 |
| QS10-40/3-2.2 | 10 | 40 | 2.2 | 50 |
| QS15-26-2.2 | 15 | 26 | 2.2 | 50 |
| QS25-17-2.2 | 25 | 17 | 2.2 | 65 |
| QS65-7-2.2 | 65 | 7 | 2.2 | 90 |
| QS15-34/2-3 | 15 | 34 | 3 | 50 |
| QS25-25-3 | 25 | 25 | 3 | 65 |
| QS100-6-3 | 100 | 6 | 3 | 90 |
| QS10-65/5-4 | 10 | 65 | 4 | 50 |
| QS10-81/6-4 | 10 | 81 | 4 | 50 |
| QS30-30/2-4 | 30 | 30 | 4 | 65 |
| QS65-13-4 | 65 | 13 | 4 | 90 |
| QS80-12-4 | 80 | 12 | 4 | 90 |
| QS10-95/7-5.5 | 10 | 95 | 5.5 | 50 |
| QS30-40/3-5.5 | 30 | 40 | 5.5 | 90 |
| QS65-18-5.5 | 65 | 18 | 5.5 | 90 |
| QS220-5-5.5 | 220 | 5 | 5.5 | 150 |
| QS10-121/9-7.5 | 10 | 121 | 7.5 | 50 |
| QS20-65/5-7.5 | 20 | 65 | 7.5 | 65 |
| QS30-54/3-7.5 | 30 | 54 | 7.5 | 65 |
| QS32-48/4-7.5 | 32 | 48 | 7.5 | 65 |
| QS50-36/3-7.5 | 50 | 36 | 7.5 | 90 |
| QS100-15-7.5 | 100 | 15 | 7.5 | 125 |
| QS250-8-7.5 | 250 | 8 | 7.5 | 150 |
I f you need more information of other types fountain pump, just contact me, will answer you at once when I am online. REMEMBER contact me
Grundfos SP range of 4″ – 10″ single or three phase submersible borehole pumps with hydraulic design, constructed entirely from corrosion resistant stainless steel AISI 304.
The Grundfos SP range can handle flows of up to 470 m3/h and heads up to 810m this guarantees a high-quality water supply which is reliable and efficient.
SP pumps provide low long-term costs and high operating reliability regardless of the application.
Groundwater supply to waterworks
Irrigation in horticulture and agriculture
Groundwater lowering
Water pressure boosting
Industrial applications
Fountains
Thermal waters, pools and springs
Maximum Head: 27m
Maximum Flow: 107m³/h
Power: 5.5kW 7.5HP
Current: 11.7A
Voltage: 380V – 415V
Motor Speed: 2 Pole
High flow heavy duty submersible sewage pumps designed for freestanding as well as guide rail and duck foot installations in the mining, municipal, abattoir, and agricultural industries. These sewage submersible pumps are designed with an inlet cutter plate and a single channel impeller that allows for the pumping of stringy solids.
Liquid type: clean water
Uses: industrial
Applications: water supply systems, fire-fighting sets, air conditioning systems, washing systems, pressure systems, cooling systems, irrigation pumps
typology: surface
Family: standardized centrifugal pumps
Performance Range:
Flow rate up to 6000 l/min (360,0 m³/h)
Head meter- 51m
Phase- Three Phase
Application Limit:Temperature of the liquid from -10 °C to +90 °C
Ambient Temperature da -10 °C to +40 °C
Manometric suction lift up to 7 m
Max. pressure in pump body 10 bar (PN10)
Continuous service S1
