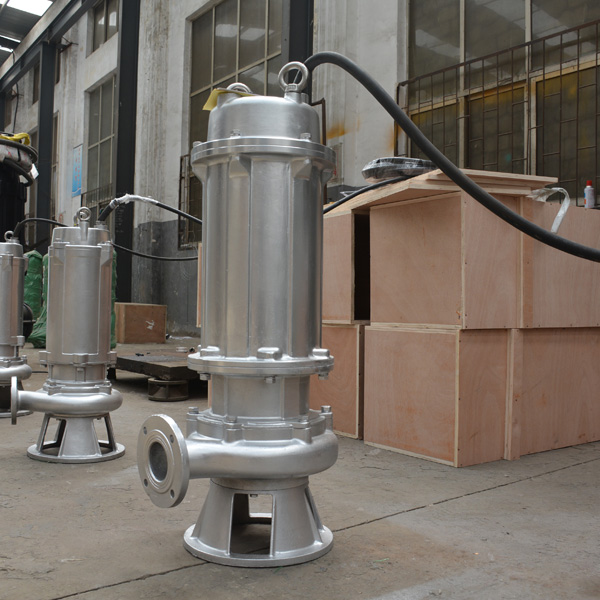

An automatic submersible sump pump includes a float or a switch which activates or de-activates the pump when water level reaches factory pre-set threshold. All sump pump switches can be divided into regular (integral, built-in, wired directly to, etc.) and piggyback switches. The later are not wired directly into the pump and have a separate receptacle+plug combination instead of the typical plug. This piggyback type connector plugs into the electrical outlet first, while the sump pump itself is plugged into the piggyback outlet. This option allows to run the sump pump in automatic mode. When piggyback switch is bypassed (not used) and pump is plugged directly into the electrical outlet, it runs in manual mode and can be used for manual dewatering and applications described above.
Vertical Mechanical Float – plastic or foam float which moves on a shaft parallel to the sump pump and is best for narrow basins or where the space is limited.
Wide Angle Float – most commonly a hollow cylindrical float made from hard plastic with mechanical switch inside, attached to the sump pump by own power cord. It requires more space in order for the float to move freely, but is also less effected by floating debris then all other switch types.
Diaphragm Switch – electrical switch which detects water and activates and deactivates the pump accordingly.
Switch or float regulates when to activate and deactivate the sump pump and each automatic sump pump has factory pre-set ON and OFF levels. “ON” level indicates the water level at which the pump activates, while “OFF” level indicates the level at which the pump turns off. For diaphragm switch models, this level is non-adjustable. For vertical float sump pumps, only the OFF level can be adjusted on select models. Models with wide angle float typically allow for adjusting both levels by increasing or decreasing the unsecured portion of the cord with the float.
Great pumping performance with a larger water capacity.
Electricity-saving motor and easy to do the maintenance.
BUILT-IN AUTOMATIC FLOAT KEY SWITCH.
Motor: Quality motor with a level of protection IP68, suitable for continuous duty.
Thermal Protector: Single phase model with built-in thermal protector prevents any burning damage to the motor.
Motor Casing: Rugged cast iron motor housing with a good cooling feature.
Pump Casing: Tough cast iron casing guarantees longer servicing life.
Impeller: Excellent durability, semi-open type impeller design, prevents clogging by mud, sand, etc.
Suction Cover: Easily replaceable.
Triplex Seals: Equipped with double mechanical seal with one oil seal.
The better pumping performance results in less electricity consumption, large water volume, convenient usage, and maintenance.
The manual version: the SC series submersible cast iron sump pump is also available.
Next Generation Sensor Technology automatically turns this pump on when the presence water is detected. The pump continues to work until water is drained down to 3/8 in., then shuts off by itself. Ideal for basements, flat roofs or flooded yards. Comes with 25 ft. of tether rope for easy positioning.
Never worry about flooding again – this fully automatic pump uses Next Generation Sensor Technology to detect the presence of water, and automatically turns off when water is drained to 3/8 in.
