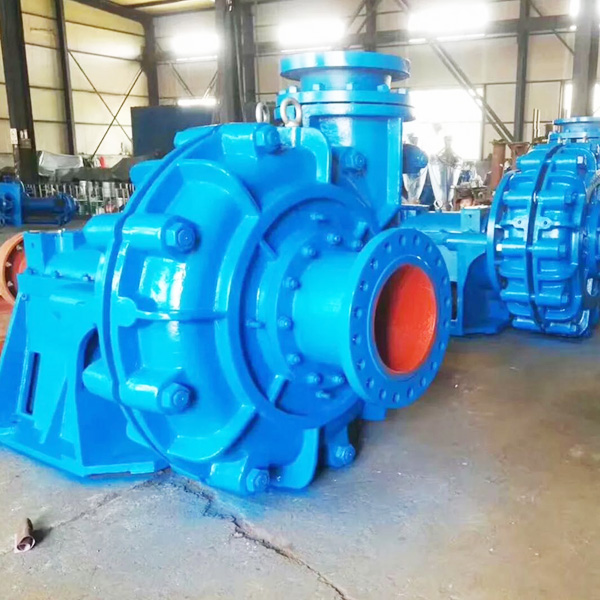

High Head Gravel Slurry Pump

High head slurry pump

H series high head slurry pumps are end-suction, split-case, centrifugal slurry pumps provide excellent wear life while maintaining efficiency during the wear cycle providing the best total operating cost.

This series are widely used in industries, such as Ball mill discharge Rod mill discharge, Ni acid slurry, Coarse sand, Coarse tailings, Phosphate matrix, Minerals concentrate, Bottom/fly ash, Lime grinding, Oil sands, Mineral sands, Fine tailings, Phosphoric acid, Coal, Flotation, Process chemical, Pulp and paper, FGD, Wastewater

High Head Slurry Pumps HDH

HDH Series slurry pumps are cantilevered, horizontal slurry pumps, centrifugal slurry pumps. They are designed for the handling of highly abrasive, high-density slurries. This series pump may also be installed in multistage series.

HDH series product belongs to heavy duty high head slurry pumps, which adopts thick materials and high chromium materials of main wear parts, featuring excellent abrasion resistance. Even if working in high abrasive condition, our product still maintains long service life and high performance to price ratio.

Besides, with the structure of double casing, our heavy duty slurry pump is easy to disaaemble and replace the spare parts with low cost of maintenance.

Gravel Sand Slurry Pumps HDG

1) Cantilevered, horizontal, centrifugal, one stage, single casing

2) High head gravel pump, large capacity, high efficiency.

3) Good NPSH performance.

4) Sand slurry pump application area is wide:

They are designed for handling more abrasive with solids slurry in the river dredging, dewatering, Sand reclamation, Sugar beet , explosive sludge in metal melting, grudging in dredger etc.

5) Long bearing life: The bearing assembly is with large diameter shaft and short overhang.

6) Wear resistant wet parts: The wet parts are made of high chromium abrasion resistance alloys. (more than 26% Chrome alloy).

7) The frame plate for pumps have replaceable wear-resistant metal liners or rubber liners. The impellers are made of wear-resistant metal or rubber which ensure good performance of the gravel pump.

8) Easy adjustment of impeller: An impeller adjustment mechanism is provided below the bearing housing.

9) Wide choice for packing way: Centrifugal seal, mechanical seal and packing seal are available.

10) The shaft seals could be adoptable of gland seal or expeller seal

11) The gravel pump discharge can be positioned at interval of 45 degrees by request and oriented to any eight positions to suit installations and applications.

Gravel pumps high strength, centrifugal slurry pump

SLAPK offers a variety of solutions stocked pump including pumps gravel high strength and other centrifugal slurry pump. Gravel pump high strength is used for a wide variety of applications in different industrial areas. Our company can provide high gravel pumps resistance assured with high quality and high efficiency.

Construction of this pump is simple centrifugal slurry coating connected by tie wraps and wet wide canal. The wetted parts are made of Ni-resistant and highly abrasion resistant chromium alloy. These pumps gravel high strength has the advantage of easy and simple installation, good yield of NPSG and abrasion resistance.
