Single Stage Horizontal Slurry Water Pump

Publish Time:

Slurry Pump Is A Single Stage Horizontal Heavy Duty Centrifugal – China

Slurry Pump is a single-stage, single-suction and horizontal heavy duty centrifugal slurry pump with a cantilever design, heavy duty slurry pumps are mainly used in solids containing applications.

Depending on process conditions, equipment should be suitable for highly abrasive or corrosive liquids.

Packing Seal is a general shaft seal.

It applys to various pumping conditions, PTFE and Graphite materials of Packing can be used in high corrosive slurries or high temperature conditions.

Using ceramic shaft sleeve, For high abrasion conditions, The ceramic shaft sleeve is available.

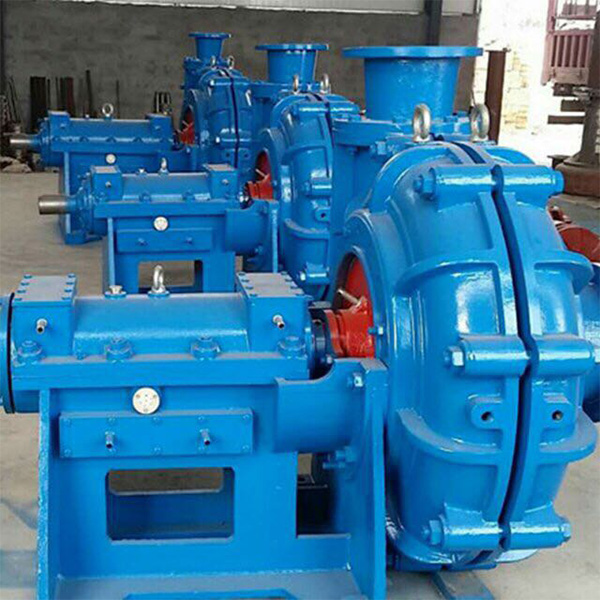

Single Stage Horizontal Slurry Water Pump

Single-stage Horizontal Slurry Pump

Single-stage Horizontal Slurry Pump(ZJ series slurry pump) is single-stage, single-suction, horizontal, cantilever, and centrifugal with double casing structure, It is used to transport highly abrasive slag slurry medium. The maximum slurry weight concentration Cw of the solid-liquid mixture allowed to be transported is: ash (slag) slurry and coal slurry 45%; ore slurry and heavy medium 60%, the maximum conveying particle diameter Up to 60mm.

The machine can adopt direct connection, belt, hydraulic, frequency conversion speed control and other transmission forms, and can also be connected in series or parallel according to user needs. Moreover, on-time delivery, custom service and practical solution are provided by APK. Please feel free to contact us for your special requirements!

Corrosion-Resistant Slurry Pump Submersible Sand Pump Mining Sewage Pump manufacturer:

The ZJ slurry pump of APK China industry is a double pump shell structure, that is, the front and rear pump shells are equipped with replaceable metal lining, including front and rear guard plates, sheath and impeller. The front and rear pump casings are of vertical split structure, and their materials are ordinary gray cast iron, nodular cast iron or cast steel respectively. The front and rear pump casings are connected by bolts, and the rear pump casing is connected with the bracket. The discharge outlet of the pump can generally rotate 360 degrees in eight directions. The front and rear cover plates of the slurry pump impeller are equipped with back blades to reduce leakage and improve the service life and efficiency of the pump. The impeller of ZJ slurry pump is connected with the shaft by threads, which is more convenient for disassembly and assembly.

MG Heavy Duty Slurry Pump

Flow capacity up to 5400m3/h
Head scope up to 109m
Minimum inlet and outlet diameter: 6″x 4″
Maximum inlet and outlet diameter: 18″x 16″
Maximum distributed particle diameter: 254mm

Part Description Material Specification Material Options
Shaft 4140 Mild Steel Available on Request
Bearing Housing Cast Iron
Column Mild Steel
Upper Strainer Rubber Cast Iron
Lower Strainer Cast Iron
Back Liner 27% Chrome White Iron
Pump Casing 27% Chrome White Iron Rubber Lined White Iron
Impeller 27% Chrome White Iron Rubber
Discharge Pipe Mild Steel Rubber Lined Mild Steel/ Composite
Adaptor Plate Mild Steel
Bolts Zinc Plated Steel
