SS316 Material Long Transfer Pump Industrial Pumps

316 Stainless Steel for Chemical Pumps

Stainless steel is a low carbon steel containing chromium. The chromium provides corrosion resistance, in part by creating a film on the surface of the steel that allows the steel to “heal itself” if it is damaged.

316 stainless steel is considered an austenitic stainless steel and has a high nickel content. 316 stainless steel is one of the more commonly used austenitic stainless steels. Austenitic stainless steels are often used when a product of system will need to withstand corrosive environments.

316 stainless steel is built to last—it can pump toxic and corrosive chemicals just as well as it can work with water and wort. 316 stainless steel is known for it for its strength and durability across a wide-range of chemical pumps.

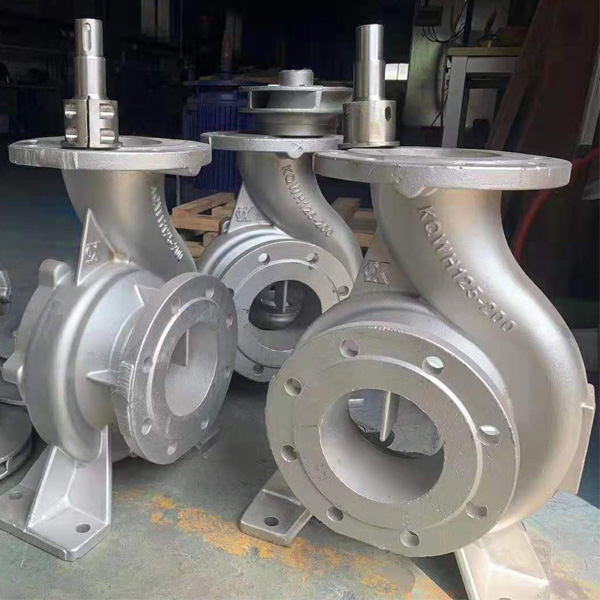

SS 316 Centrifugal Chemical transfer Pumps

Complete SS 316 Horizontal Centrifugal pumps with High head & High discharge design. Front openable Suction casing for easy operation and maintenance. Hydraulically balanced impeller for better efficiency and lower power consumption. Fabricated from SS 316 rolled steel sheet give better surface finish and low liquid friction. Sealing by Mechanical seal of either Carbon, Ceramic, Silicon or Pure Teflon gland packing.

Ideally suitable for mild chemical transfer from underground to overhead tank, unloading from tanker, washing and cleaning of parts, Food and dairy products, beverages etc.

All CFP series pumps are available in Bare Shaft and Monoblock design with std. TEFC motors OR Flameproof motors.

SS316 Material Long Transfer Pump Features & Application

simple & Front open design
All contact parts of SS-316 material
Best in class efficiency with high head and high capacity
Available in monoblock & Bare type
Sealing by Mechanical Seal of Carbon, Ceramic, SC, TC, & Pure Teflon Packing
