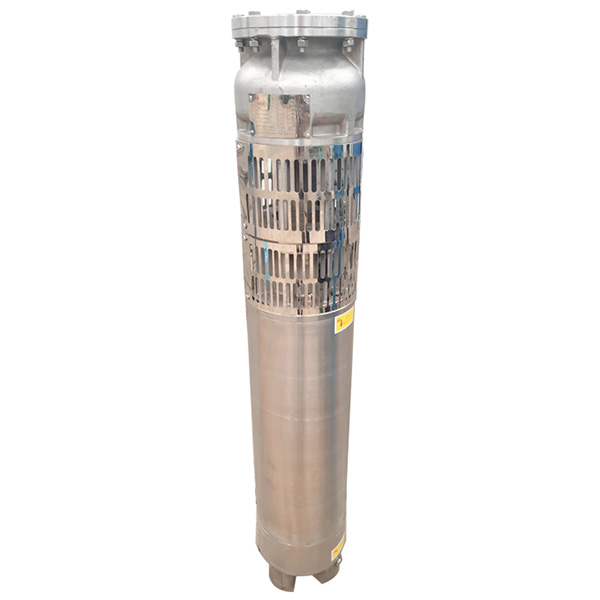

stainless steel centrifugal submersible water pump circulate water and transfer liquids. They are commonly used in commercial and industrial applications, such as filtering water, boosting water pressure, and aerating ponds and fountains. Corrosion resistant pumps move chemicals and resist damage from acids or chemicals. Booster pumps increase pressure in city mains or residential buildings, and can maximize filtration operations in pond systems.
Pump Casing in Stainless steel, diffusser and impeller in Noryl, stainless steel shaft , cast iron suction and outlet.
Flow from 5 to 70 m3/h.Head up to 400mPower from 5.5 to 50HP
CDL is a kind of vertical non-self priming multistage centrifugal pump,which is driven by a standard electric motor. The motor output shaft directly connects with the pump shaft through a coupling. The pressure-resistant cylinder and flow passage components are fixed between pump head and in-and outlet section with tie-bar bolts.The inlet and outlet are located at the pump bottom at the same plane.This kind of pump can be equipped with an intelligent protector to effectively prevent it from dry-running, out-of-phase and overload.
| CDL CDLF Series Technical Specifications | |
| Product Name | Vertical Multistage Centrifugal Pipeline Pump |
| Frequency | 50Hz/60Hz |
| Capacity Range | 50Hz: 0.4~240m3/h; 60Hz: 0.6~240m3/h |
| Head | 50Hz: Max. 300m; 60Hz: Max: 260m |
| Motor | 0.37~110Kw |
| Material | Stainless Steel 304 316 |
| Flange | DN25~DN150 |
| Liquid Temperature | -15~120 degree C |
| Motor | Full closed, air-blast, 2 pole standard motor |
316 stainless steel centrifugal units pump continuously producing high flow rates under low head conditions. Designed for continuous low-pressure circulation and transfer of non-flammable liquids, utility, boiler feed, general transfer, filtration, cooling towers, condensate return, marine applications, fountains, boosters, water circulation, irrigation, spraying systems, jockey pump service, chemical processing, aggressive liquid applications and other general purpose pumping compatible with pump component materials where no suction lift or no self-priming is required.
Capacities to 170 GPM, Heads to 74 ft
1/3 to 3 HP AC, NEMA 56J Frame and Base, ODP and TEFC, Single and Three-Phase Motors
Clog-Resistant, Semi-Open Metallic Impellers
Maximum Casing Working Pressure is 200 PSI
Standard Pump Models (at 3450 RPM) will Handle Specific Gravities to 1.1 (at 100 SSU or less)
Standard Pump Models (at 3450 RPM) will Handle Viscosity to 100 SSU (at 1.1 Specific Gravity or less) and up to 200 SSU (Specific Gravity of 1.0 or less)
3/4″ to 2″ Female NPT Inlet and Outlet Ports
Discharge Port can be Rotated at 90-Degree Intervals
Handles Temperatures to 250° F
Pumps are Equipped with a Carbon Ceramic Viton Mechanical Seal having 316 Stainless Steel Components
