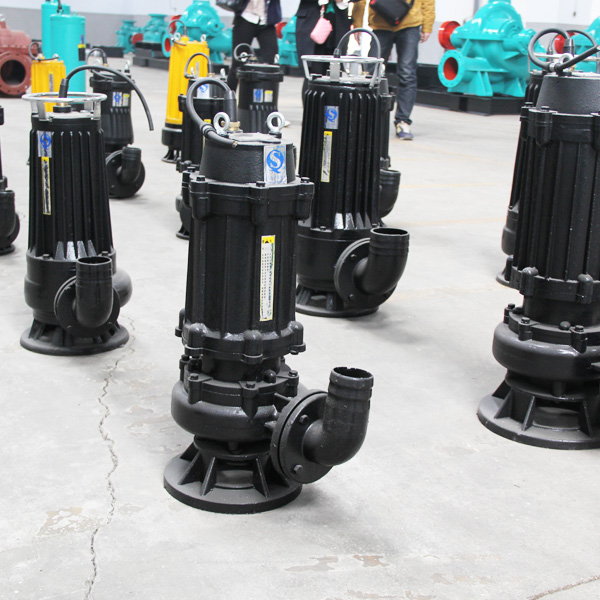

Vertical Submersible Water Pump V Series Sewage Vertical Pump

V SERIES STAINLESS STEEL SUBMERSIBLE SEWAGE PUMP

1. V series stainless steel submersible sewage pump
2. POWER:0.18~2.2kw
3. MAX HEAD:5~20M
4. MAX FLOW:5~30m3/h
5. MOTOR CASING:stainless stee

V series stainless steel sewage pumps are suitable for pumping clean water. They are particularly suitable for domestic applications such as supply water from well, pool etc, the automayic distribution of water by surge tanks and pressure switch, gardening and increasing of water pressure.

40m Head Vertical Submersible Sewage Pump

The V series 40m head vertical centrifugal submersible sewage pump is mainly used for municipal works, industrial buildings, hotels, hospitals, civil air defense, mines etc. Trades to drain off the sewage, waste water, rainwater and living water in cities containing solid grains and various long fabrics.

Type	Outlet Dia. (mm)	Capacity (m3/h)	Head (m)	Power (kw)	Efficiency (%)
50V15-8-0.75	50	15	12	0.75	52
50V25-36-7.5	50	30	15	7.5	48
65V30-10-2.2	65	30	10	2.2	62
65V30-35-7.5	65	30	35	7.5	50
80V50-8-2.2	80	50	8	2.2	60
100V80-7-3	100	80	7	3	64
150V150-10-7.5	150	150	10	7.5	72
200V300-10-15	200	300	10	15	74
250V500-10-30	250	500	10	30	72
300V700-19-55	300	700	19	55	75
350V1100-25-110	350	1100	25	110	76
400V2000-23-185	400	2000	23	185	80
500V3000-15-132	500	3000	15	185	72
600V4000-20-315	600	4000	20	315	77

Cast Iron Submersible Sewage Pumps – Series 5050

Whether residential or commercial, the DuraMAC 5050 cast iron series of sewage pumps can handle your pumping needs with ease. The energy efficient 1/2 horsepower split capacitor motor works beautifully in conjunction with the cast aluminum Vortex impeller pumping up to 80 gallons per minute, including handling up to 2″ of solid waste. Offering you the choice of a vertical float switch for narrow basins, a tethered float switch for larger pumping basins, or no switch, you can choose the style that best fits your sewage pumping needs without sacrificing the quality or performance you’ve come to rely upon with all SLAPK products.

Industrial Vertical Pumps Products

The range of Flowserve vertical pumps covers wet-pit, double case, submersible, slurry and solid handling, sump and concrete volute configurations. They comply either with ISO, ASME or API standards, and guarantee reliable and efficient processes. Numerous sizes, hydraulics and material combinations are particularly well suited for use in applications where uncompromising reliability and efficiency over a wide flow range are key.

Vertical Submersible Centrifugal Pumps

Our submersible pump lines include the SMF, the SHS and the NE for drainage, sewage, dewatering and industrial applications.

Capacity up to 40,000 gpm (9,000 m³/h)Head up to 240 ft (73 m)

SHS – Solids Handling

Submersible pump with a single impeller, non-clog suction design and single volute case. The SHS does not need any extra device to adapt to existing discharge elbows, making it the best choice for solids handling application in different industries.

These pumps are capable of pumping liquids with solids from 3” to 6” in diameter. Applications include water, wastewater, sewage, pulp and paper, mining, and many other industrial and municipal applications, in either single or parallel operation.

SMF – Vertical Submersible

Designed to exceed the highest standards of reliability, the SMF is built to handle large quantities of water. It offers a wide range of optimized hydraulic coverage with a reduced number of basic designs to suit any customer requirement, ensuring the best energy performance on the market. This results in savings in total life-cycle costs and reduced environmental footprint.

The SMF is available in two standard material versions: cast iron and ductile iron, but other materials are available on request. It is also equipped with a premium efficiency submersible dry motor, which is cooled with the same pumped liquid.

NE – Submersible Non-Clog

The NE is a single stage, single suction pump with overhung non-clogging impeller designed for pumping municipal and industrial wastewater, sewage, effluent, and liquids containing solids and fibers.

Its outstanding solids handling capability, guarantee maximum operating time and substantial reductions in maintenance cost caused by pump jamming or clogging. It is designed for continuous pumping under the most difficult operating conditions.
