Rated speed: 990, 1480 or 2960r/min
Voltage: 380V, 6KV or 10KV
Inlet and outlet diameter: 150~600mm (in accordance with B/T17241.66-1998 flange standard)
Flow: 68~39750m ³/h
Head: 6~230m
Temperature: fluid temperature ≤80 ℃, ambient temperature≤40 ℃
Working pressure: 1.0MPa (G)(Hsp ≤75m) or 1.6MPa (Hsp>75m)
Medium: clean water

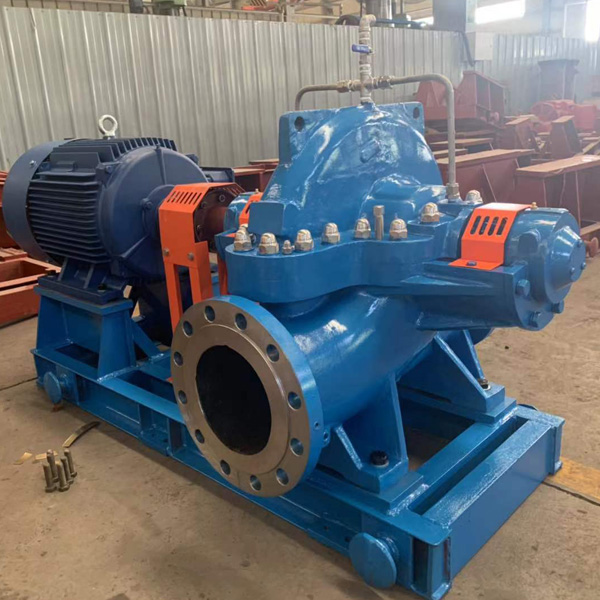

WASB Type split-case single-stage double-suction centrifugal pump has remarkable characters as follows: full range of models, stable performance high efficiency and easy to repair.
WASB Type horizontal split case double suction centrifugal pump fall into more than 40 categories, nearly 400items. We change the impeller diameter to increase the efficiency. We nearly can meet all customer’s needs of the head and flow.
Both inlet and outlet of this pump are placed under the axial line, horizontally and vertical to the axial line, the pump casing is opened in the middle so it is unneccessary to remove the water inlet and outlet pipelines and motor(or other prime movers). The pump moves CW viewing from the clutch to it. The pump moving CCW can also be made, but it should be specially noted at order.
The main parts of the pump are: pump casing, pump cover , impeller , shaft, dual-suction seal ring, muff, bearing and couping etc.
WASB series is a new generation of single stage double suction centrifugal split case pump with high performance and reliability, it is mainly applied to liquid transferring occasions like water works, air conditioner circulation water, heat supply pipe network system, building water supply, irrigation, drainage pump station, power station, industrial water supply system, fire fighting system, ship industry, water supply and drainage for mines, etc.
These pumps are typically used to carry low-viscosity liquids such as clear water and unsaturated wastewater from industrial processes at average heads.
HSC pumps can be used for higher flow rate applications that are not suitable for end suction pumps, such as fire pumps, portable water distribution, plant make-up water, pipelines, cooling water, and other industrial process flows with fairly thin fluids.
Depending on your specific application, you can opt for either the single stage HSC pump with a head of up to 550 feet at 140,000 gpm, or the multi-stage HSC pump with a maximum head of 2.200 ft, max. operating pressure of 740 psi, and flow range of up to 2,000 gpm, which is suitable for heavy duty, high pressure applications.
Keep in mind that HSC pumps are not suitable for transporting thick or viscous liquids, as well as those containing solids.
New split case pump
Original design by PURITY (patented)
Available complete with electric motor or diesel engine
Easily back pull-out from driver
Pump case with anti-corrosive coating HT250
Impeller in stainless steel AISI 304 or HT250
Shaft in stainless steel AISI 304 or galvanized iron
Quality bearing,mechanical seal/gland packing
