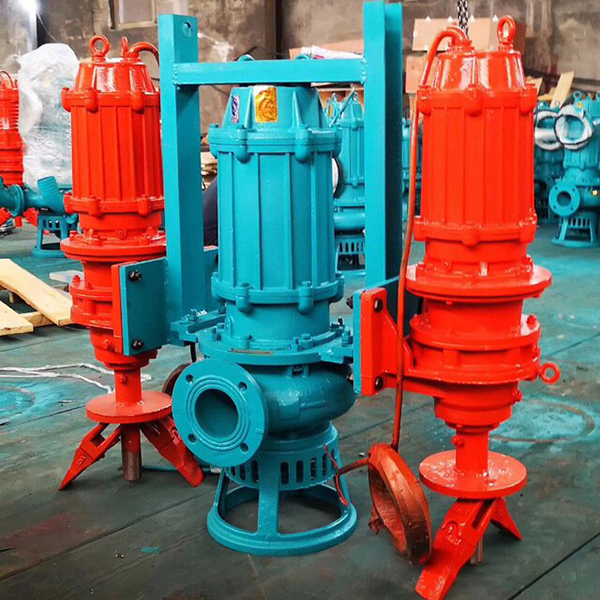

Wear Resistant Submersible Sand Dredge Pump for River Saltwater Sea

River Sea Submersible Sand Dredge Pump

Submersible sand pumps are in use worldwide in all types of industries, including small sand winning projects for reclamationorsand supply. Oil, Gas & Cable industry for special application in seabed trenching, soils removal, seabed pile removal/installation.

a) Wear parts are all constructed with abrasion resistant materials – chromium alloy, so pumps have better stability & longer service life.

b) Unique mechanical seal device can prevent the electric motor from high pressure water and impurities, thus high suction efficiency can be ensured.

c) Easy installation, operation and cost saving, since no additional vacuum pump or pump house is needed.

d) In addition to the main impeller, a pair of agitation impeller is equipped to help break and mix the sludge.

e) Professional technology support is provided during the whole process of the usage and maintenance.

High efficiency wear resistant marine sand pump

Marine sand pump can pumping sand and gravel equipped on dredger ship or boat. Our marine sand pump is passed through the trial test and industrial operation test, it has the characteristics of energy saving, high hydraulic efficiency, good wear resistance and reliable operation in the delivery of solid particles. The ship sand pump is suitable for inland river dredging, coastal embankment , coal mines, power plants and other enterprises to transport solid particles containing slurry, medium particles up to 50-80 mm. The dredger sand pump is also used to pump sand or slurry in the river, lake, sea and reservoir, land reclamation, pumping iron ore, gold sand.

Wear Resistant Submersible Sand Dredge Pump for River Saltwater Sea Technical Datesheet

NO.	Pump Type	DISCH. DIA	CAP	Head	Power	Rotation speed	Eff	Biggest particles discontinuous pass through
		(mm)	(m³/h)	(m)	(kw)	(r/min)	(%)	(mm)
1	DMD150-22-22	150	150	22	22	980	60	32
2	DMD200-15-22	150	200	15	22	980	60	45
3	DMD300-20-37	150	300	20	37	980	58	28
4	DMD150-24-45	100	150	24	45	980	61	65
5	DMD250-35-55	150	250	35	55	980	53	36
6	DMD280-20-55	150	280	20	55	980	54	110
7	DMD300-30-55	150	300	30	55	980	55	36
8	DMD600-15-55	250	600	15	55	980	62	32
9	DMD400-25-75	200	400	25	75	980	62	29
10	DMD500-25-90	200	500	25	90	980	65	25
11	DMD800-25-110	300	800	25	110	980	66	50
12	DMD1000-18-110	300	1000	18	110	980	68	50
13	DMD780-26-110A	300	780	26	110	980	68	30
	DMD780-26-110B	300	780	26	110	980	68	50
14	DMD800-35-132	300	800	35	132	980	70	42
15	DMD1000-22-132	300	1000	22	132	980	71	50
16	DMD1250-15-132	300	1250	15	132	980	70	56
17	DMD1250-25-160	350	1250	25	160	980	70	56
18	DMD1000-30-160	300	1000	30	160	980	70	53
19	DMD1750-15-185	350	1750	15	185	980	70	56
20	DMD1500-20-200	350	1500	20	200	980	71	56
21	DMD2000-20-200	400	2000	20	200	980	72	56
22	DMD670-42-220	200	670	42	220	980	66	150
23	DMD1250-35-220	350	1250	35	220	980	70	45
24	DMD1000-50-250	300	1000	50	250	980	68	45
25	DMD1500-35-250	350	1500	35	250	980	72	50
26	DMD1750-30-250	350	1750	30	250	980	70	55
27	DMD1500-40-280	350	1500	40	280	980	70	50
28	DMD1750-40-315	350	1750	40	315	980	70	55
29	DMD2000-35-315	400	2000	35	315	980	72	60

Submersible Dredge Pump

DMD series Submersible dredge pump is the kind of heavy duty submersible pump that is applied for the dredging process to transport underwater sand, slurry, sludge, gravel or other sediments to specified place. SLAPK offers a variety of wear resistant submersible dredge pumps with large spherical passages which can handle up to 60% solids. DMD series submersible dredge pump can be hydraulically or electrically driven according to working conditions and has excellent suction properties, because it can be submersed to extremely highly mixed densities, many optional suction heads and accessories are also available for your different dredging works. DMD series submersible dredger pump has the characteristics of compact structure, portable installation, high chrome wearing component, heavy duty mechanical sealing system, overload thermal protection system and versatile accessories which make it flexible for dredging applications.

Sand Gravel Pump, Electric Dredge Pump, River Dredge Pump

Sand gravel pumps are suitable for many operations, including sand, gravel, and rock suction, sand mining, sediment pumping, and metal smelting slag transportation. They are widely used in a variety of settings, including reservoirs, lakes, rivers, and the sea. Their highly variable nature requires them to be versatile, hardy, and able to withstand many types of media under potentially harsh conditions.

Dredge pumps are generally used to simulate the principle of water flow scouring in nature. The sand gravel pump creates high pressure in the water, passing through it and is used to carry out sand and soil digging. The high-speed water column impacts the soil and sand, wets and disintegrates it, and mixes into the mud, which is then lifted by a vertical sand suction pump and transported to the sand field through a pipeline.
