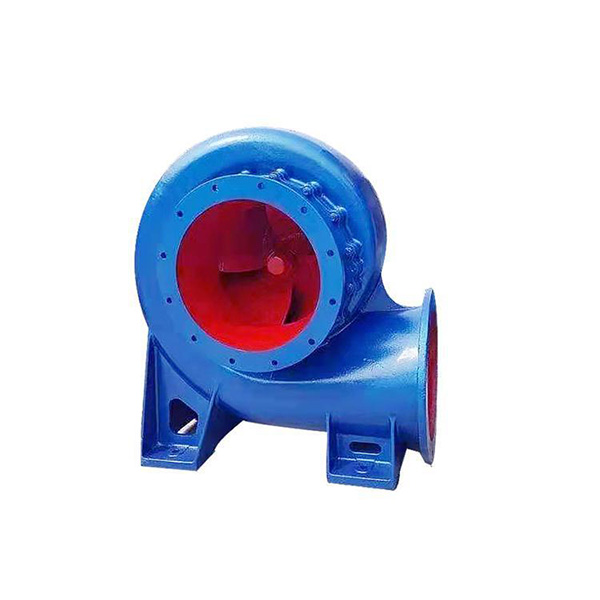

18.5KW 400 M3/Hr 8 Inch 200HW-12 Mixed Flow Pump

18.5kw 200HW-12 Mixed Flow Pump are horizontal, single stage, single suction, volute type mixed flow pumps. Applicable to the delivery of clean water or other physical and chemical properties similar to clear water. The temperature of the liquid to be transported is not higher than 50 degrees celsius. Widely used in farmland irrigation and drainage, industrial and urban water supply and drainage and other occasions.The utility model has the advantages of simple structure, reliable use, convenient decoration, high efficiency, small size and light weight.

200HW-12 Mixed Flow Pump Flow 400 M3/Hr At 12 M Suction/Discharge 8 Inch Data

Type: 150HW-8
Power(KW): 18.5KW
Speed(rpm): 1450
Flow(m3/h): 400m3/h
Head(m): 12
Outlet size: 8inch
Inlet size: 100mm
Shaft power: 14.68 kw
Efficiency: 83.5%
Voltage: 3 phase 380V
Frenquency: 50HZ
Pump case: Cast iron
Shaft: 3Cr13
Impeller: Cast iron
Seal type: Gland packing
Suction Casing: Cast iron
Delivery Casing: Cast iron
Weight: 115kg

18.5KW 400 M3/Hr 8 Inch 200HW-12 Mixed Flow Pump Quality Control And Test

We can manufacture an extra sample to clients for inspection when casting the core parts of 200HW-12 Mixed Flow Pump to ensure the material meets your standards.

The strict QC team can guarantee that there is no casting defects affecting the pump’s life span.

With a large testing center for pump performance, the high performance of the pump is ensured.

ISO quality management system.
