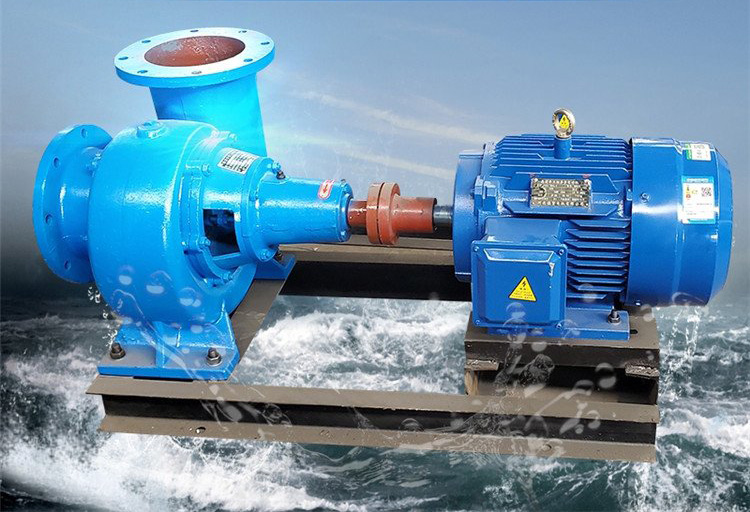

5.5KW 200 M3/Hr 6 Inch Mixed Flow Pump

The 5.5KW 200 M3/Hr 6 Inch 150HW-8 Mixed Flow Pump is horizontal, single stage, single suction volute type pump; it is suitable for transporting clean water or similar chemical liquid whose temperature is under 50°C. The mixed flow pump has the features of simple structure, reliable in operation, easy installation, high efficiency, small dimension, light weight., and it is in high efficiency and energy saving type, mainly used for sugar factory, paper making factory and can also be used for floods and rain water drainage.

150HW-8 Mixed Flow Pump Flow 200 m3/hr at 6 M Suction/Discharge 6 Inch Data:

Type: 150HW-8
Power(KW): 5.5KW
Speed(rpm) 1450
Flow(m3/h): 200m3/h
Head(m): 6.8
Outlet size: 6inch
Inlet size: 6inch
Shaft power: 4.78 kw
Efficiency: 82%
Voltage: 3 phase 380V
Frenquency: 50HZ
Pump case: Cast iron
Shaft: 3Cr13
Impeller: Cast iron
Seal type: Gland packing
Suction Casing: Cast iron
Delivery Casing: Cast iron
Weight: 70kg

150HW-8 Mixed Flow Pump Flow 200 m3/hr at 6 M Suction/Discharge 6 Inch Model Specification

150—HW—8
150——pump inlet and outlet diameter mm
HW——horizontal volute mixed flow pump
8——Design lift, M

150HW-8 Mixed Flow Pump Manufacturer:

200 m3/hr 150HW-8 Mixed Flow Pump is Shenlong’s main product, and Shenlong Pump produces many types of centrifugal pump, multistage centrifugal pump, end suction pump, vertical centrifugal pump, horizontal centrifugal pump,and fire pump, diesel engine fire pump, electric fire pump, integrated prefabricated pumping station, trailer pump, fire trailer pump, non-negative pressure water supply equipment, fire water supply equipment, diving sewage Pump, self-priming sewage pump, WQ non-clogging sewage pump, ISG, IRG, IHG, ISGD series vertical pipeline pump, ISW, ISWD series horizontal centrifugal pump, DL vertical multistage pump, GDL type removable pipe multistage pump, fire pump, LG-disassembled high-rise building water supply multistage pump, frequency conversion water supply equipment, etc. If you want to know more about the 200 m3/hr 150HW-8 Mixed Flow Pump, Please feel free to contact us!
