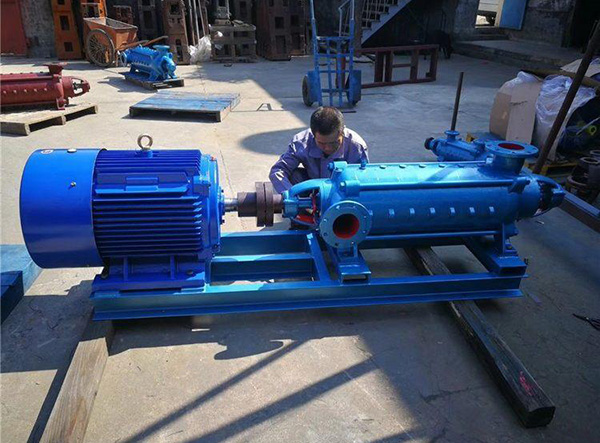

A customer in Bangkok, Thailand purchased a 132KW 180HP multistage centrifugal pump
E-mail: marketing@apkpump.com
WhatsApp: +86 175 3718 7726
Brand: Shenlong APK
Type: DG46-50×12
Power: 132KW
Speed(rpm): 2950
Flow: 55m3/h
Head: 540m
Outlet size: 80mm
Inlet size: 80mm
Shaft power: 129.2 kw
Multistage: 12 stage
Voltage: 3 phase 380V
Frenquency: 50HZ
Pump case: Ductile iron
Shaft: 3Cr13
Impeller: Ductile iron
Seal type: packing seal
Suction Casing: Ductile iron
Delivery Casing: Ductile iron
Coupling: One set
Coupling guard: One set
Weight: 540kg
132KW 180HP DG type horizontal single-suction multi-stage segmental centrifugal pump, the chemical and physical properties for conveying water or similar Yu Qingshui liquid, suitable for the medium and low-pressure boiler or high-pressure boiler feed water, can also be applied to plant, the city of high-pressure water supply and drainage. The medium temperature is -20 ℃ ~ 150 ℃, inlet allowed pressure is less than 0.6 Mpa. This series of pumps are adopted country it is recommended to use the hydraulic model of high efficiency and energy saving products. With high efficiency, wide range of performance, safety and smooth running, low noise, long service life, easy installation and maintenance, etc.
| Level | Flow Q | Head | Speed | η | shaft power | Motor | Impeller | Pump | Moter | |||
| H | n | (%) | N | NPSHr | Diameter | weight | weight | |||||
| (m) | (r/min) | (kw) | (m) | D | (kg) | (kg) | ||||||
| m³/h | L/s | power(kw) | Type | (mm) | ||||||||
| 2 | 111 | 2950 | 16.78 | 30 | Y180M-2 | 208 | 262.7 | 240 | ||||
| 100 | 19.88 | |||||||||||
| 92 | 21.52 | |||||||||||
| 3 | 166.5 | 25.19 | 37 | Y200L2-2 | 281.5 | 260 | ||||||
| 150 | 29.83 | |||||||||||
| 138 | 32.28 | |||||||||||
| 4 | 222 | 33.59 | 45 | Y225M-2 | 300.3 | 325 | ||||||
| 200 | 39.77 | |||||||||||
| 184 | 43.04 | |||||||||||
| 5 | 277.5 | 41.98 | 55 | Y250M-2 | 319.2 | 395 | ||||||
| 250 | 49.71 | |||||||||||
| 230 | 53.8 | |||||||||||
| 6 | 333 | 50.38 | 75 | Y280S-2 | 338 | 500 | ||||||
| 30 | 8.66 | 300 | 54 | 59.65 | 2.5 | |||||||
| 276 | 64.56 | |||||||||||
| 7 | 388.5 | 58.78 | 90 | Y280M-2 | 356.8 | 550 | ||||||
| 46 | 12.78 | 350 | 63 | 69.6 | 2.8 | |||||||
| 322 | 75.32 | |||||||||||
| 8 | 444 | 67.2 | 90 | Y280M-2 | 375.7 | 550 | ||||||
| 55 | 15.28 | 400 | 64 | 79.52 | 3.2 | |||||||
| 368 | 86.08 | |||||||||||
| 9 | 499.5 | 75.56 | 110 | Y315S-2 | 394.5 | 875 | ||||||
| 450 | 89.48 | |||||||||||
| 414 | 96.84 | |||||||||||
| 10 | 555 | 83.97 | 132 | Y315M-2 | 412.3 | 950 | ||||||
| 500 | 99.42 | |||||||||||
| 460 | 107.6 | |||||||||||
| 11 | 610.5 | 92.37 | 132 | Y315M-2 | 432.2 | 950 | ||||||
| 550 | 109.36 | |||||||||||
| 506 | 118.36 | |||||||||||
| 12 | 666 | 100.8 | 132 | Y315M-2 | 451 | 950 | ||||||
| 600 | 119.28 | -160 | (Y315L-2) | -1070 | ||||||||
| 552 | 129.12 | |||||||||||
