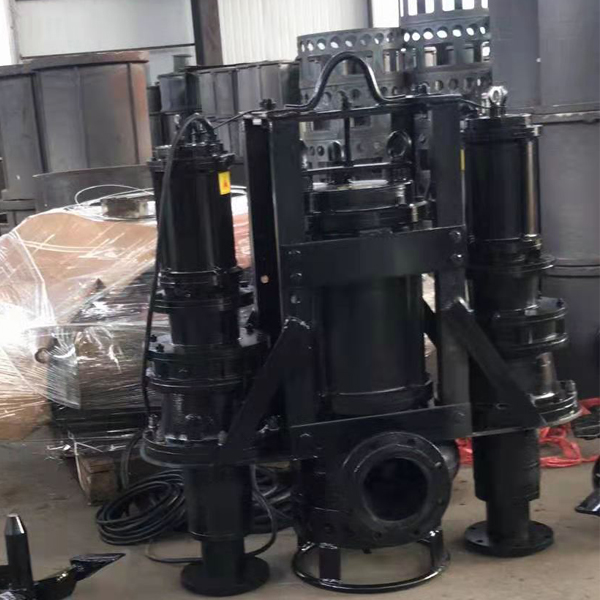

Abrasion Resistant Submersible Agitator Pump has external agitator can be added assist the mixial of sand, solids, sludge, muddy with water. It was designed to handle a wide range of slurries and abraisive particles in submersible applications in industiral and mining organization.
The sand source conditions and construction requirements of each place are different. When customers select submersible sand pumps, they not only consider the flow rate, head, power and speed of the sand pump. The type of sand pump must be limited according to the sand conditions at the site. The type is more suitable, and the elimination method can also be used to determine the most suitable pump type. Each pump has its own advantages and disadvantages. Therefore, in the selection process, the on-site personnel and the selection engineer must combine the best products to achieve the expected results. At the beginning of design, the concept of the submersible sand pump was very advanced, and there were few restrictions on use. Therefore, many customers blindly selected and there were many problems. The SLAPK industry technical team designed a variety of options for users to choose from. This makes the submersible sand pumps ideally suitable for most dredging and desalting ore dressing projects.
| Power(kw） | Motor Speed | Ratio | Agitator Speed | N.m | Weight(kg) |
| 0.75~1.1 | 1500 | 29 | 52 | 200 | 50 |
| 2.2 | 1500 | 29 | 52 | 400 | 80 |
| 4 | 1500 | 29 | 52 | 800 | 185 |
| 5.5 | 1500 | 35 | 43 | 1600 | 300 |
| 7.5 | 1500 | 35 | 43 | 1600 | 330 |
| 11 | 1500 | 35 | 43 | 3000 | 440 |
| 15 | 1500 | 35 | 43 | 3000 | 480 |
| 22 | 1000 | 71 | 21 | 16000 | 760 |
| G Clean Water Performance | ||||||
| Type | Max.Power | Flow | Head | Max Efficiency | NPSHr | Maximum Particle |
| kw | m3/h | m | % | m | mm | |
| 6x4D-G | 60 | 2.2-23.3 | 3-54 | 58 | 2.5-3.5 | 82 |
| 8x6E-G | 120 | 4.2-55.6 | 6-52 | 60 | 3-4.5 | 127 |
| 10x8F-G | 260 | 16.7-77.8 | 10-54 | 65 | 3-7.5 | 178 |
| 12x10G-G | 600 | 12.5-122.2 | 10-60 | 65 | 1.5-4.5 | 220 |
| 14x12G-G | 600 | 2.8-20 | 8-72 | 68 | 2-8 | 241 |
| 18x16G | 600 | 13.9-333.3 | 8-50 | 72 | 3-6 | 254 |
a)Power supply: generator or industry electric power, and the capacity of the substation transformator is two to three times of the rated capacity of the motor.
b)Temperature of the medium: The temperature of the medium cannot exceed 60Celsius, and the medium does not contain inflammable or explosive gases.
c)Max weight density of the solid particle: The maximum weight concentration of the solid particles in the medium: the maximum weight concentration of the ash is 45% and the maximum weight concentration of the slag is 60%.
d)Submerged depth: not more than 35 meters.
e)The unit works in the medium vertically, and the working status is continuous.

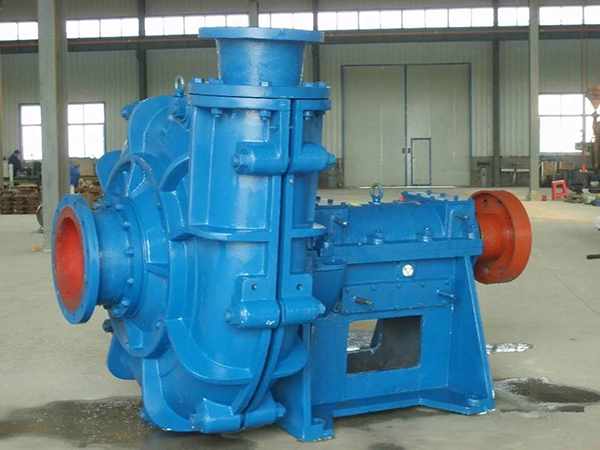

Sand gravel pumps are designed for continuously handling the most difficult higher abrasive slurries which contain too big solids to be pumped by a common pump. They are suitable for delivering slurries in mining, explosive sludge in metal smelting, dredging in dredger and course of rivers, and other fields. Type WS(G) pumps are of high-head ones.
Construction of this pump is of single casing connected by means of clamp bans and wide wet-passage. The wet-parts are made of Ni-hard and high chromium abrasion–resistance alloys. The discharged direction of pump can be oriented in any direction of 360°.
This type of pump possesses the advantages of easy installing and operation, good performance of NPSH and abrasion-resistance.
Typies of driver: V belt driver, gearbox driver, elastic coupling driver, fluid couplings driver, frequency conversion driver, silicon controlled rectifier speed regulation etc.
All the pumps and pump parts are interchangable with G series sand gravel pumps. Such as
6/4D-G, 8/6E-G, 10/8F-G , 12/10G-G, 14/12G-G
