lime-slurry-mixingLime, or calcium hydroxide CaO, is a versatile mineral used by a large number of companies in a wide variety of applications including steel manufacturing, construction, water treatment and more. Lime slurry, in particular, is a free-flowing material that can be difficult to pump because it is inherently abrasive, corrosive, has high particulate, and high viscosity. Lime can be combined with certain additives to produce other metals and lime slurry is also a key ingredient in mortar and plaster. Lime slurry also does not dissolve in water, thereby leaving jagged shards in suspension which can cause havoc on pipes and pumps. Lime also has a nasty habit of scaling or forming into hard crusts around crevices or the interior walls of pipes. This leaves lime pump operators in a position of having to scrape out their pipelines, introduce caustic chemicals, or replace the entire system periodically to avoid complete shutdown due to limescale issues.
Lime slurry can be an unforgiving material to pump because it is inherently abrasive, corrosive, has high particulate, and high viscosity. Learn how the SLAPK Pump is a top choice for lime slurry pumping.

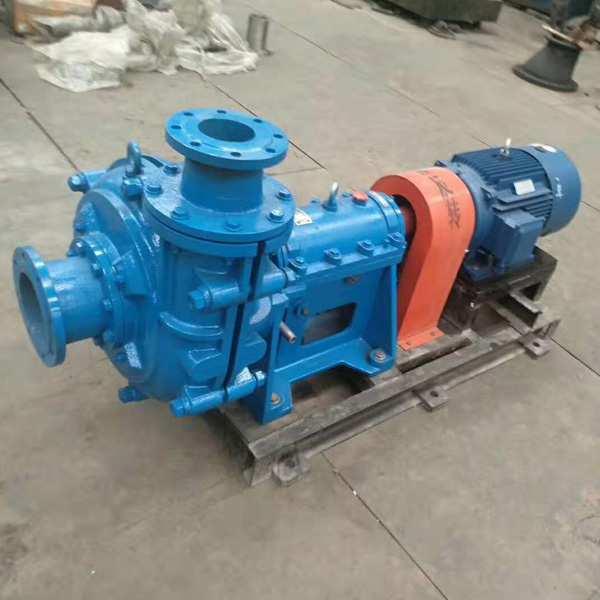

The SLAPK Slurry Pump was designed to excel in the harshest applications and makes it a superior pump for lime slurry applications. The large internal flow path enables the pump to pass extremely large solids, and the recessed rotor reduces the potential for wear due to the abrasive nature of lime slurry. Added to this, the unique ability to provide a turbulent flow means that the operation of the SLAPK Pump avoids allowing the lime slurry to settle at the bottom of the liquid path, which can decrease excessive limescale issues internal to the pump.
Discharge Size: 20mm ~250mm
Inlet Size: 32mm~300mm
Capacity: 4~2000m³/h
Head: 2~160m
Maximal Efficiency: 65%
NPSH: 0m~3.5m
Allowable Max Motor Power: 710 KW
Allowed Max Particle Size: 20mm
Seal Type: mechanical seal/dynamic seal/packing seal
RPM: 1450r/min~2900r/min
The capacity range of this pump is 4~2000m3/h, and the head range is 2~160m. This can meet most of customers’ requirements. The advanced design improves efficiency and reduces the costs.
YCZ-series chemical process pump adopts integral casting closed impeller, which has strong adaptability to working conditions, thus, the pump has high efficiency.
YCZ-series chemical process pump are in accordance with ISO5199 and GB/T5656 standards.It follows the structural standard of industrial process pump. The pull-back design makes disassembly and maintenance safety, convenient and reduce the maintenance and repair costs.
LP(R) type pump is a centrifugal slurry pump, suitable for conveying abrasive or corrosive slurry.Pump generally invade the poor or pit work.The pump is divided into LP type and LPR type, with the same structure. The LP type flow parts and shaft are made of metal material.
The pump body, impeller and guard plate of LP pump are made of wear-resistant materials, with sample structure and easy installation, pump body with bolts fixed in the branch of the rack, the upper end of the bracket is placed with the bearing body which is adopted double row tapered roller bearings, the driving end uses a single row cylindrical roller shift which can bear maximum load of pump, and can easily change pulley to fit the speed of the pump to meet different working conditions. With split mounting plate on the bracket, it can be conveniently fixed on the steel frame foundation or concrete one. The pump should be immersed in the slag slurry when it works, the pump body suction inlet with a filter which can prevent large particles.
The structure or LP and LPR are almost same except the LPR type are lined with corrosion resistant rubber for the parts immersed in the slag slurry, the rubber parts include shaft, pump body, impeller,guard plate and filter screen, the connecting bolts of the lower part of the immersion are protected by rubber sleeve.
These parts are all standard parts and fit to most standard slurry pumps perfectly and interchangeable with most brands pump parts. High chrome metal and rubber parts for slurry pump series (AH, HH, SP, G, L, ZJ, M models) are avalaible. Various kind of centrifugal mining slurry pumps spare parts, such as Slurry Pump
Here we list some OEM part codes for reference:
Impeller: 127, 147, 145, etc., such as C2127, D3147, E4147, F6147, G8147, G10147, FAM1247…
Volute liner, C2110, D3110, E4110, F6110, G10110, G12110, …
