Submersible sand pumps, also known as submerged suction pump and submersible slurry pump, is designed and developed by SLAPK. Our submersible sand pumps is originally used in tailing handling and high-strength working environment for coal slag delivery. The main components of submersible sand pumps like impeller are as the same structural prototype as horizontal slurry pump impellers. The advantages of submersible sand pumps are simple operation, self-mixing operation, strong anti-abrasiveness, energy saving, environmental friendly, low noise and low failure rate. In recent years, Taian ocean pump co,. Ltd has developed the innovative products such as submersible sand pumps with a high-pressure water jet, large-particle submersible sand pump, submersible sand pump with side cutters, hydraulic driven submersible sand pump with side cutters, stainless steel submersible slurry pump and deep-well submersible sand pump. These sand pump products can satisfy the construction requirements with different working conditions. At present submersible sand pumps have been widely used in sand extraction, landfilling, river dredging, tailings processing and other projects.
Sand water pump is a class of centrifugal pump designed to pump liquid containing solid particles and which may also contain solvents, acids, alcohols, or petroleum. This kind of slurry pump is often subject to additional wear and are commonly more robust than other water pumps. So it is designed to withstand extensive additional wear with robust structures such as large impeller diameter, shafts, bearings, and internal dimensions. There are many sand water pumps excavating river sand and gravel every day in the Yellow River Basin. The sand-laden water in the Yellow River wears extremely seriously on the flow surface of the sand water pump, especially the wear on the impeller of the sand water pump, which affects the safe and effective work of the sand water pump. Short impeller life and frequent replacement result in high usage cost of sand water pump and low production efficiency. Therefore, it is very meaningful to propose economical and effective anti-wear measures to solve the wear-resistant problem of the sand water pump equipped on the sand dredger.
High chrome alloy: A05, A07, A33, A49, etc.
Natural rubber: R08, R26, R33, R55, etc.
Other material as per requests, like stainless steel, duplex stainless steel, Nickle alloy, Alloy 20, etc.
These parts are all standard parts and fit to most standard slurry pumps perfectly and interchangeable with most brands pump parts. High chrome metal and rubber parts for slurry pump series (AH, HH, SP, G, L, ZJ, M models) are avalaible. Various kind of centrifugal mining slurry pumps spare parts, such as Slurry Pump
Marine sand pump can pumping sand and gravel equipped on dredger ship or boat. Our marine sand pump is passed through the trial test and industrial operation test, it has the characteristics of energy saving, high hydraulic efficiency, good wear resistance and reliable operation in the delivery of solid particles. The ship sand pump is suitable for inland river dredging, coastal embankment , coal mines, power plants and other enterprises to transport solid particles containing slurry, medium particles up to 50-80 mm. The dredger sand pump is also used to pump sand or slurry in the river, lake, sea and reservoir, land reclamation, pumping iron ore, gold sand.

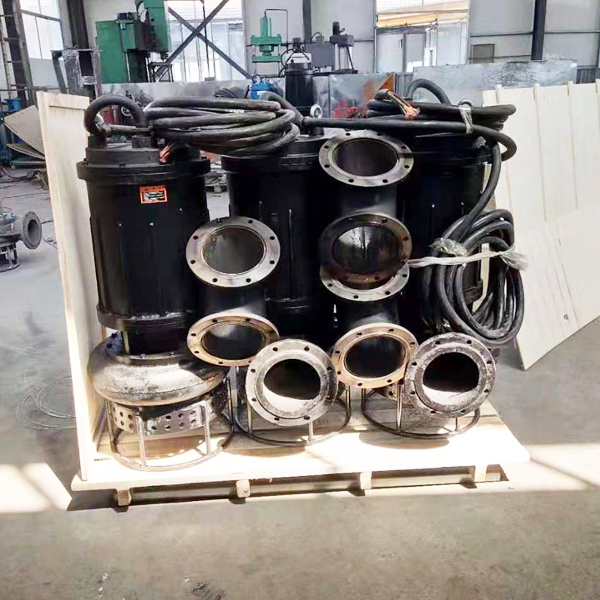

TSQ Submersible Sand Pump is hydraulic machinery, the motor and the pump of which are coaxially working submerged in medium. The wetted parts of the pump are made of high chromium wearable alloy , so the pump has good wear resistance and large flowing passage. It is applicable for conveying medium such as sludge, ore slurry, coal slurry, sand-stones containing big solid particles. The product is designed and manufactured by domestic and oversea advanced technologies. Besides the main impeller, the bottom of the pump is additionally provided with a set of agitation impeller which can spray the deposited sludge into turbulent flow,. The unique mechanical seal device can effectively balance the pressure inside and outside the oil chamber, so as to protect the reliability of the mechanical seal to the maximum extent. The motor adopts various protective measures such as overheat protection, water inlet detecting protection, and can operate safely for a long term in harsh working condition.
• The whole machine is dry submersible pump and the motor adopts oil chamber seal mode and is provided with mechanical seal inside, so high pressure water and impurities are effectively prevented from entering inner cavity of the motor.
• Besides the main impeller,there is the agitation impeller which can agitate the sludge deposited on the water bottom into turbulent flow and pump the sludge out.
• The overflowing parts such as the impeller and the agitation impeller are made from high-hardness high chromium cast steel, have wear resistance, corrosion resistance, strong drainage capacity and allow big solid particles to pass.
• Impeller, agitation impeller and other major wet parts using high wear-resistant material manufacturing, wear-resistant , corrosion resistance, non-clogging blowdown ability , can be through larger solid particles effectively.
• No limitation by suction head , high efficiency suction slag , more thoroughly cleaning
• No equipped with auxiliary mixing or spraying devices , operation more convenient.
• Agitation impeller direct contact deposition surface, control concentration through dive depth , therefore concentration control more comfortable
• The motor is submerged in water and is not limited by suction stroke. It has high sludge suction rate and thorough desilting.
