A pump company or dewatering solutions provider can partner with mine planners and engineers in the design and planning stages. A system analysis should be performed first. Then pump selection can begin. Factors to consider in mine planning include portability, easy maintenance and solids-handling.
Another consideration is pH. Pumps can be customized with durable materials of construction specifically designed for low pH and other corrosive liquids.
Pump systems are completely customizable, and the right one can only be selected after the operator or mine engineer understands the mine plan. Pump and piping design and pump control can be tailored to the mine plan. In addition to length of flow, elevation and discharge, consider layout drawings, hydraulic grade lines and pipe wall thickness. Perform friction loss calculations.
APK is specialists in delivering and supporting Slurry Equipment Solutions including pumps, hydrocyclones, valves and wear resistant linings for global mining and mineral processing, the power sector, and general industry.
The Heavy Duty Dredge Pump, is specifically designed for low head duties such as hopper dredging and barge loading. The new G Super Heavy Duty Gravel pump range is ideally suited to the extremely abrasive slurries in this type of application. Sugar Beet & Other Root Vegetables With special impellers designed to prevent damage to the solids the Dredge pump is widely used for handling Sugar Beet and other vegetable products.
Low NPSH requirements and robust design make the Dredge and Gravel pumps suitable for applications on slurries with higher than normal temperatures. This is illustrated by their wide use in Slag Granulation plants around the world.
Severe space limitations and tough operating conditions are normal in tunnelling applications. The Gravel pump’s compact design and optional impact resistant cast steel components make it ideally suited for the varied subsoils and long tunnel lengths that require a pump capable of multi staging on a high flow, high pressure, often surging application.
SS Mine Dewatering Submersible Slurry Pump is mainly composed of three parts: pump head, motor and combined seal. The water conservancy part is designed using advanced design methods. The motor and the pump are coaxially integrated into the medium, and the working flow parts (including the pump body, pump cover and impeller) are made of wear-resistant materials. The product has excellent material selection, advanced structure, wide flow channel and strong pass ability. It is widely used in metallurgy, chemical industry, mining, coal, power, building materials, municipal environmental protection and river dredging companies to transport abrasive solids containing sand, coal slag, tailing, etc. Granular liquid.
In addition to the main impeller, a set of stirring impeller is added at the bottom, which can spray the precipitated slag into a mixed liquid of water and solid particles. The water pump can realize high-concentration delivery without auxiliary devices. The unique sealing device can effectively balance the pressure inside and outside the oil chamber, so that the pressure at both ends of the mechanical seal is balanced to a great extent, ensuring the reliable operation of the mechanical seal, and greatly extending its service life. The motor can increase water detection, overheating, etc. according to user requirements. The protection device enables the product to operate safely for a long time under harsh working conditions.

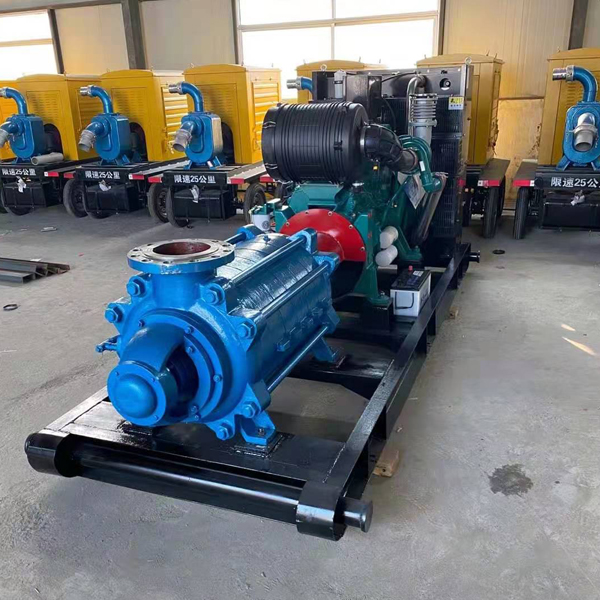

Considering all the benefits of electric-driven pumps, diesel is still the right fit for many mining applications. If no on-site power can be made available, a permanent diesel- or natural gas-driven pump is a great option. Diesel-powered centrifugal pumps come equipped with a diesel engine for stand-alone operation. These pumps will work on any site, no matter how remote. Engines should meet the latest emissions regulations and tier compliance standards.
Standard models of centrifugal pumps are often used for high-volume flow (which can reach 15,000 gpm or more), average total dynamic heads and solids-handling capabilities. Advanced lines of centrifugal pumps are better suited to applications with high or extreme high heads, or those that are used as jetting pumps. The total dynamic head of these pumps, single staged, can reach or exceed 600 feet. This means that, in a mining application, one of these high-head pumps can be sufficient to meet the pumping needs, or great heights can be achieved with just a few pumps staged together.
Safety should always be a consideration. When running diesel-driven centrifugal pumps in an underground mine, air should be vented in to balance the diesel exhaust. This safety condition is eliminated with electric-driven pumps.
Size: 12″ x 10″
Capacity: 288-2808m3/h
Head: 10-80m
Speed: 350-850rpm
NPSHr: 1.5-4.5m
Eff.: 73%
Power: Max.600kw
Handling solids: 220mm
Seal arrangement: Packing seal, Expeller seal, Mechanical seal
Materials: High chrome alloy, Cast iron, Cast steel, Stainless steel etc
APK TG12x10G Dredging Sand Pump is a single stage, single casing, centrifugal horizontal pump driven by electric motor diesel engine. Large flow passage allows large particle solids, with advantages of high efficiency, wear resistant, wide flow channel, good ability of NPSH, stable performance, easy assembly, The discharge outlet can be adjusted at any direction, It is world’s standard for dredge, gravel or large particle slurries applications.
• Advanced hydraulic model, CAD 3D design, high efficiency and obvious energy-saving
• Large dredging sand depth, high density of dredging mud, good pump NPSH and strong suction lift ability.
• Strong through-put, The dredging pump can persistently discharge gravel, high plastic soil lump,etc.
• Wide application, The sand pump can be used in various kinds of soil quality.
• The TG sand pump can be directly matched with electric motor or diesel engine.
• The TG sand pump impeller is 3 or 5 vanes for large particles delivering.
• Little hydraulic loss, high efficiency and low oil-consumption.
• Steady operating, little vibration, low noise.
• Simple & reliable constrution, easily disassembly & assembly,convenient maintainc
• Reliable sealing without leakage.
• Long operating life of wear parts
Sand pump is widely used in pumping system that move sand deposits to long distance. APK Pump is the leading sand pump machine designer, manufacturer and exporter dedicated in supplying sand pumping equipment and dredging equipment to worldwide customers. We have more than 30 talented sand pumping experts and 15000 square meters factory. More than 4 series 20 kinds of sand pumps, slurry pumps, gravel pumps, sand dredgers and related parts had been manufactured to satisfy your pumping requirements. Our main products include simple sand pump, slurry pump, gravel pump, submersible slurry pump, dredge pump, mining pumps, sand dredging pumps, small dredging equipment, dredger, dredger ship, submersible dredge, suction dredger, cutter dredger, mechanical cutter suction dredger, hydraulic cutter suction dredger, dredging equipment, sand pipe, floater, rubber hose. Product innovation and customer satisfaction are our continuous commitment to all our partners. We had been provided professional pump solutions and services to over 60 countries. Hope to be your partner.
