Water Pump Direct Sale
Professional Submersible Pump Manufacturer
Water Pump Direct Sale
Professional Submersible Pump Manufacturer
The stainless steel submersible pumps manufactured by SLAPK are designed and manufactured using the latest technological advances. Years of experience, superior design and better manufacturing techniques have resulted into development of stainless steel submersible pumps, which are efficient and reliable in operation.
The stainless steel submersible pump range from SLAPK consist of many pump sizes available with an optional number of stages to match any duty point.
Complete stainless steel, radial / mixed flow impeller, suitable for NEMA standard motor, clean water submersible pumps, available 50 Hz and 60 Hz.
| Operating Conditions | |
| Max. Liquid Temperature | 40°C |
| Flow Rate (Q) | 1 – 350 m³/h |
| Head (H) | Max 650 mt |
| Max. Sand Content | 50mg/lt |
| Motor Protection Class | IP68 |
| Max. Operating Sound | 70dB |
| Max. Starting Number | 20 (kal./sa) (starts/h) |
| Motor Rotation Direction | two sided / CW CCW |
| Stage and Impeller Stainless Steel ( AISI 304) | |
| Suction – Outlet Stainless Steel (AISI 304) | |
| Pumps can supply water from 1m³/h up to 300 m³/h | |
| Pumps are produced as standard from AISI 304 Stainless Steel. AISI 304 = DIN Nr.1.4301
For Applications with aggressive liquids, as optional AISI 316 Stainless Steel version is available |
|
| Cathodical Protection is suggested for Seawater applications. | |
| Motor Covers are as Standard Cast Iron GG25. As optional, AISI 304 and 316 versions are available. | |

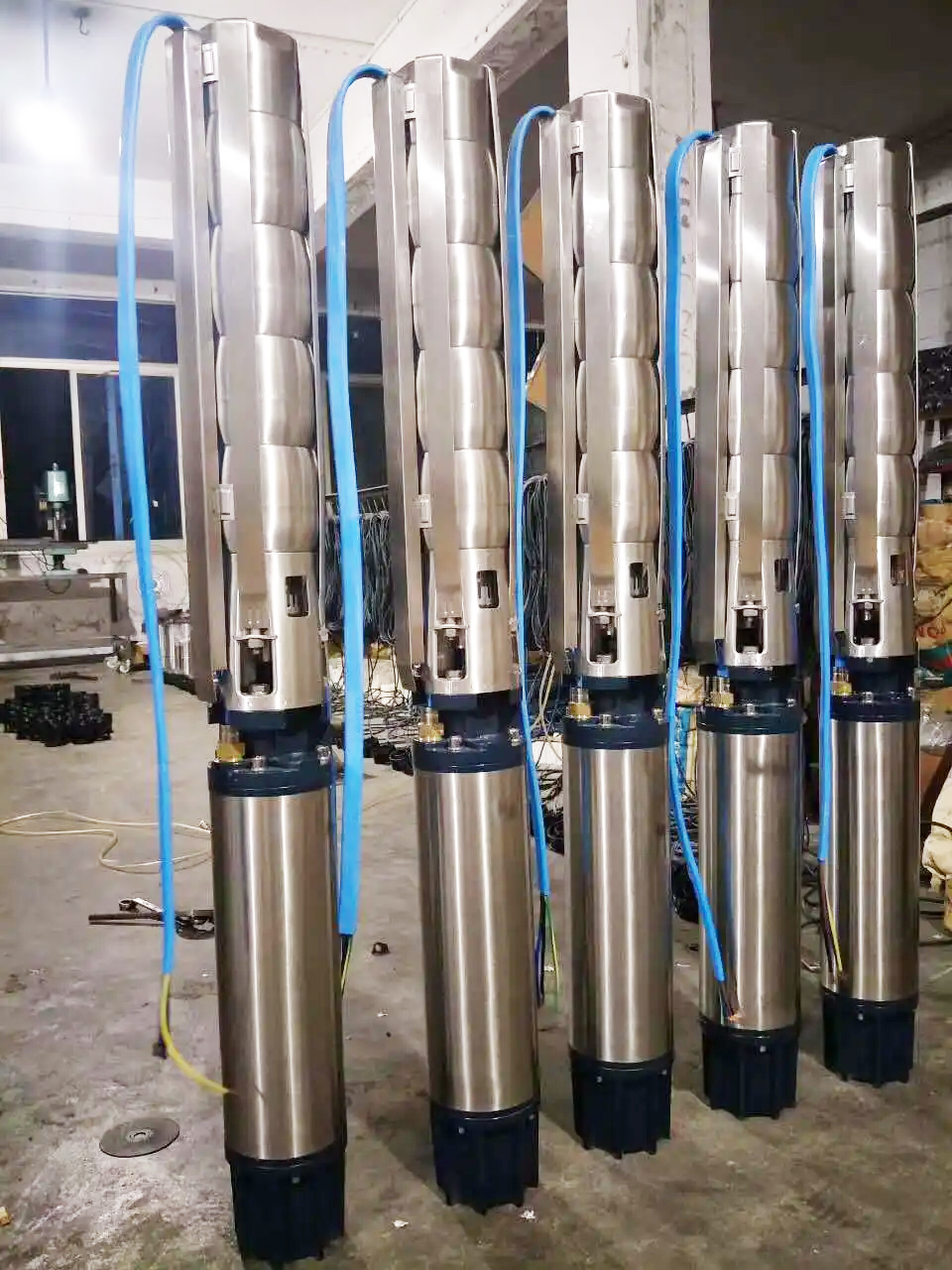

6” STAINLESS STEEL SERIESSLAPK stainless steel series deep well / bore hole submersible pumps are single or multistage type supplied with radial or mixed flow impeller for higher head and flow requirement. These pumps are made up of corrosion resistant stainless steel material for long life. The pump shaft is supported with radial bearing on each casing for prolonged life and trouble free operation. And also, we provide neck / wear ring on impeller and casing to maintain close clearance for better efficiency and to minimise the wear and tear. Built in check valve prevents back flow and reduces the risk of water hammer effect. All mounting dimensions are in accordance with NEMA standards.
Nominal pump size: 6″
Power Range: 1½HP – 100HP
Speed: 3450 rpm
Maximum Flow: Upto 570 gpm
Maximum Head: Upto 2184 ft
Outlet Sizes: 2½”, 3″ & 4″
Flow range:- Max. 18.8 M3/h, Head range:- Max. 547m
4” Stainless Steel Submersible Pumps: Ideal for Irrigation, Civil/Industrial sector, Water-Supply or Firefighting. The AISI-304 stainless steel submersible pumps have been designed following the NEMA standards. 4 inch Stainless Steel Submersible Pumps are suitable for pumping clear and cold water (free of air/gasses) along with the thin, non-aggressive and non-explosive liquid that contains no fibers or solid particles (level of sand particles has to remain less than 50 g/m³). A non-return valve prevents the backflow in relation to the pump stoppage and reduces the risk of water-hammer to minimum. The valve casing minimizes the loss of pressure across the valve. The water-lubricated bearings ensure that the sand particles leave the pump mixed with the liquid. The stop ring (designed as the thrust bearing) limits a pump shaft’s axial movements and protects a pump during transport as well as during up-thrust when it starts running.
SS for drainage water
SSW for sewage water
Stainless steel pump body
Mechanical seal (Graphite/Ceramic or SiC/Graphite)
Stainless shaft
Stainless steel impeller
Thermal overload protector for single phase
Capacity: Q up to 33 m3/h; up to 145 gpm
Head: H up to 80 m; up to 242 feet
Temperature: T up to 40°C; up to 80°F
Speed: n 2900 rpm 3500rpm
