1.5KW 25M3/H Submersible Sewage Pump Export to Vietnam

Vietnam customer purchased 8 sets WQ65-25-7 with auto coupling DN65

1.5KW Submersible Sewage Pump Description

1.5KW 25M3/H WQ Submersible Sewage Pump is a multi-purpose pump with a vortex impeller. The impeller used mainly in volute pumps. Vortex impellers pump water by the eddy flow caused by interaction with the casing, which prevents internal clogging by solids and fibrous matter. The 1.5KW WQ Submersible Sewage Pump series is especially useful for pumping waste water containing large-particle matters of construction site and mine.

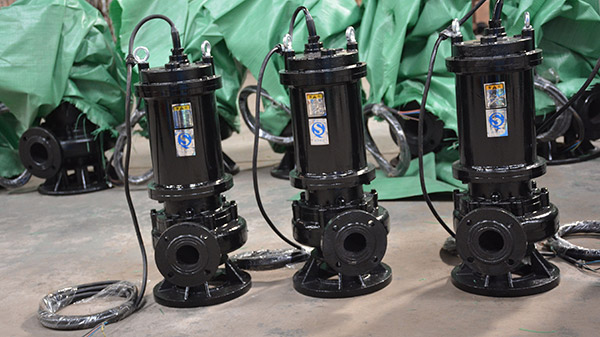

4 Sets WQ65-25-7 Submersible Sewage Pump With Auto Coupling DN65 Export to Vietnam

Product name: WQ65-25-7 Submersible Sewage Pump
Site: Vietnam
Product No: WQ65-25-7
Rated flow: 25m3/hr
Rated head: 7m
Main power supply: 380v,50hz,3phase
Type of impeller: CLOSED
Impellor stages: single
shaft seal: Mechanical seal
Curve tolerance: ISO9906:2012 3B
Cooling Type: OIL COOLING
Pump housing: cast iron
Impeller: cast iron
shaft: 45# steel
Bearing cast iron
Motor: cast iron
Location: Outdoor
Flange standard: GB
Pump inlet: FILTER
Discharge diameter: DN 65mm
Pressure stage: PN 10
Maximum submerged depth: 20 m
Inst dry/wet: SUBMERGED
Installation: VERTICAL
Pumped liquid: sewage water
Maximum liquid temperature: 40℃
Liquid temp: 38℃
Relative density: 1.157
viscosity: 3-6pas
corrosive: no
Solid content: ≤3%
Number of poles: 2
Rated power : 1.5kW
Mains frequency: 50 Hz
Rated voltage: 380 V
Rated speed: 2900 rpm
Insulation class F
IP class: IP68
Voltage tolerance: =10/-10%
Start. method: soft start
Max starts per. hour: 20
Rated current: 3.3A
Cos phi – power factor: 0.81
Cos phi – p.f. at 3/4 load: 0.7
Cos phi – p.f. at 1/2 load: 0.61

PDF: 1.5KW 25M3/H Submersible Sewage Pump Export to Vietnam Technical Sheet
