Water Pump Direct Sale
Professional Submersible Pump Manufacturer
Water Pump Direct Sale
Professional Submersible Pump Manufacturer

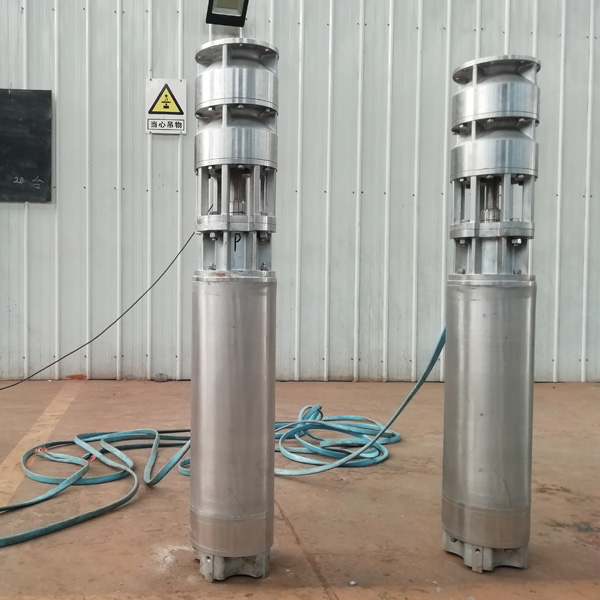

25hp clean water submersible pump is powered by electricity, AC submersible motor normally. If you or your clients would like to powered by solar panels, connecting an inverter from AC to DC.
25hp water submersible pump is pumping clean water or sea water, from deep well, river, tank, vessel, reservoir, lake and so on, which applied for agricultural farmland irrigation, hills and mountain, mine industry, clean drinking water, fountain projects.
E-mail: marketing@apkpump.com
WhatsApp: +86 175 3718 7726
| Model | Motor Power | Flow Range | Head Range | |
| QJ(H) Series | kw | hp | m3/h | m |
| 200QJ(H)20-175/13 | 18.5 | 25 | 18-22 | 150-210 |
| 200QJ(H)25-154/11 | 18.5 | 25 | 23-27 | 138-184 |
| 200QJ(H)32-117/9 | 18.5 | 25 | 29-35 | 90-132 |
| 200QJ(H)40-104/8 | 18.5 | 25 | 37-43 | 89-124 |
| 200QJ(H)50-78/6 | 18.5 | 25 | 46-54 | 63-93 |
| 200QJ(H)80-55/5 | 18.5 | 25 | 74-86 | 47-63 |
| 250QJ(H)50-80/4 | 18.5 | 25 | 46-54 | 68-92 |
| 250QJ(H)63-60/3 | 18.5 | 25 | 58-68 | 51-69 |
| 250QJ(H)125-32/2 | 18.5 | 25 | 116-134 | 27-37 |
| 250QJ(H)140-30/2 | 18.5 | 25 | 130-150 | 26-34 |
| 300QJ(H)200-20/1 | 18.5 | 25 | 186-214 | 17-23 |
The HCP SS/SF Series Submersible Pump is a stainless steel sump pump designed for the drainage of water for pharmaceutical, chemical, metal processing factories and sanitary sewer drainage for residential properties. The submersible water pump range, which can be customised to fit specifications, is available with an optional float switch and is able to handle solids of up to 50mm in size. The SS/SF Series wastewater pump is available with motors up to 18.5Kw and can achieve flow rates up to 400m³/hr.
Drainage of waste water and sanitary sewer drainage
Free passage of solids up to 50mm
Available with or without a float switch
Full stainless steel
Viton O Rings used as standard
Fitted with dry motor, double mechanical seals, Auto-cut protector, acid resistant Silicon carbide seals
Can be customised to fit specifications
380v and 3 phase 50Hz / 60Hz motor options
About factory: SLAPK factories produced pump accessories in 1986 and began to produce Diving Series in 1996. During this period, APK plant continued to expand the production scale of submersible pumps, introducing casting technology: wax pattern, lost foam and coated sand technology. We sincerely look forward to cooperating with our colleagues to provide high quality and efficient local service for local pump users. Welcome to visit our factory.
About team: Each of our sales managers has four or five years’experience in the design, installation, renovation and maintenance of Submersible Pump projects. In communicating with users, they can clearly understand the needs of users, and make a fountain submersible pump scheme according to the needs of users.
About products: On export Submersible pumps, most of our pumping equipment has passed a series of certifications such as ISO 9001, CE, BV, SGS, TUV, etc. Therefore, as the best fountain submersible pump factory, we can not only provide customized service for you, but also our strong factory can meet all your reasonable requirements.
The SBN(Stainless Steel 316) pumps are non-self priming vertical multistage pump of in-line design, flange or with Victaulic coupling with equally sized suction and discharge ports. Stage construction with stainless steel impellers, chambers and pressure casing. Pump stub shaft and motor shaft of the I EC-standards motor are directly close coupled. All pumps are equipped with a cartridge type mechanical seal for easy maintenance.
• Squirrel cage in short circuit, aluminum casing up to 22 kW, totally enclosed, fan-cooled, 2- pole standard motor.
• Standard supply Stairs motors up to 15 kW. Other motor brands for higher powers.
• Electrical data
-Enclosure class: IPSS
-Insulation class: F
• The motors have efficiency values that fall within the range normally referred to as high efficiency.
• Ambient temperature: Max. +122°F
