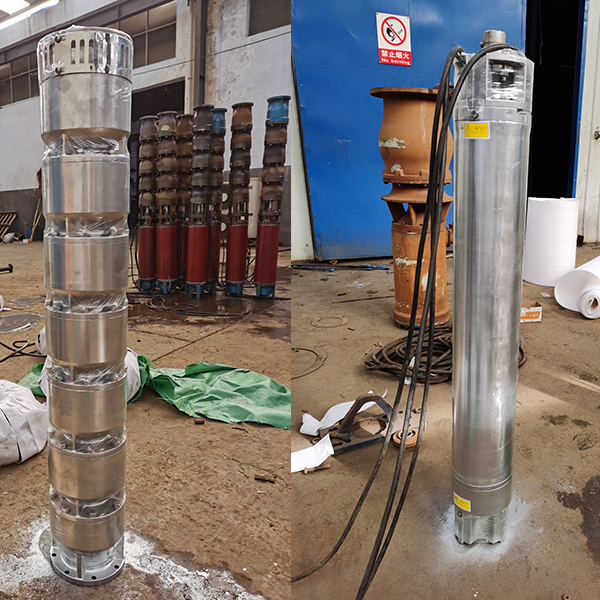

3 Phase 30KW Stainless Steel Submersible Pump

Introduction of three-phase stainless steel submersible electric pump

The three-phase stainless steel submersible electric pump is made of 304 stainless steel or other stainless steel, duplex steel, copper, etc. Beautiful, small size, (outer diameter only 128mm), three-phase power supply, easy installation, mechanical seal for shaft seal, strong corrosion resistance (PH value 4-10), no noise, no leakage, and long service life.

The three-phase stainless steel submersible electric pump is a submersible electric pump that is directly connected to the machine and pump. It runs directly in the water. It has a long and slender structure. It is a single-stage or multi-stage submersible pump. It has an automatic liquid level control system and can be set according to requirements. The liquid level control automatically starts and stops.

6″ 30kW 40HP Three Phase Submersible Bore Pump Motor

6″ Submersible Motor
Coupling dimensions as per NEMA standard.
Degree of protection : IP68.
Max water temperature : 35° C.
Starts per hour : 10 times (Max.).
Allowable voltage variation : +6% – 10%.
Motor shaft of Stainless steel.
Stator shell of Stainless steel.
Max depth immersion : 200 metres
Mounting : vertical
Motor Cable length : 3 metre /4 Core.
Cooling Flow : V=0.2 M/S.
Coolant : Clear Water.

30kw/40hp Franklin 6 inch Submersible Motor – 316SS

Franklin 40hp/30kw SAND FIGHTER™ submersible motors are built for superior dependability in sandy well applications. This innovative sealing system utilises an optimised mechanical seal with silicon-carbide faces in combination with numerous specially developed manufacturing processes.

The 316 Stainless steel shell provides better corrosion resistance for saltwater applications.

The motor protection device that can be used with 3 three phase motors is the SubMonitor.

Franklin’s SubMonitor overload protection option extends motor warranty to three years.

The SubMonitor protection system guards the motor against overload, under load, excessive winding temperature and rapid cycling.

3 Phase 30KW Stainless Steel Submersible Pump Feature

-Reliability: 100% high-grade stainless steel inside and outside with resistance to sand and corrosive water bulit in

-High-efficiency: superior hydraulics and a motor that is purpose made for the pump results in superior efficiency

-All SP pumps are delivered with a non-return valve(bulit-in) to minimize the risk of water hammering damage

-Motor and pump are vertical combination, no pumping stations are required

-Noise under 40DB when operating, lower than noise level 50-60DB when general water suction pump running

-Highest use environment temperature: 90℃
