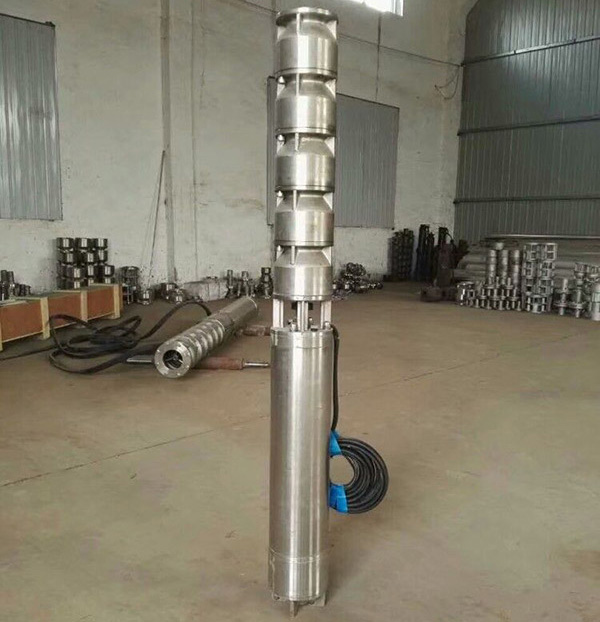

45kw 60hp submersible borehole pump, suitable for pumping clean water. Can be installed vertically or horizontally. This pump carries drinking water approval. Three-phase submersible deep-well pump AC motors don’t require starting capacitors, run capacitors, or centrifugal starting switches that can wear out and fail. They operate with a higher torque and greater efficiency than single-phase submersible deep-well pump motors of the same HP, rpm, and frame size.
E-mail: marketing@apkpump.com
WhatsApp: +86 175 3718 7726
USA customer requirements: the casing and screen diameter is 12 inch. The wells are deep wells and yeas the head 120m-140m, flow 60-74m3/h.
The 200QJ-63-140 model of Shenlong Pump Industry can meet the needs of customers, the detailed as bellow:
Type: 200QJ-63-140
Flow: 63m3/h
Head: 140m
Power: 45kw
Voltage: 380V 50HZ
Material: stainless steel
Outlet diameter: 3 inch
Iron cast, stainless steel 304/316/316l/duplex stainless/ss904l and 380v/440v/480v/600v/660v.
| Diameter | Model | Motor Power | Flow Range | Head Range | |
| Inch (“) | QJ(H) Series | kw | hp | m3/h | m |
| 8″ | 200QJ(H)20-351/26 | 45 | 60 | 18-22 | 298-403 |
| 8″ | 200QJ(H)20-405/30 | 45 | 60 | 18-22 | 345-465 |
| 8″ | 200QJ(H)32-247/19 | 45 | 60 | 29-35 | 210-284 |
| 8″ | 200QJ(H)32-288/18 | 45 | 60 | 29-35 | 245-330 |
| 8″ | 200QJ(H)50-180/12 | 45 | 60 | 46-54 | 153-207 |
| 8″ | 200QJ(H)50-195/15 | 45 | 60 | 46-54 | 165-225 |
| 8″ | 200QJ(H)63-154/11 | 45 | 60 | 58-68 | 130-180 |
| 8″ | 200QJ(H)100-105/7 | 45 | 60 | 80-120 | 102-107 |
| 10″ | 250QJ(H)50-180/9 | 45 | 60 | 46-54 | 150-210 |
| 10″ | 250QJ(H)50-200/10 | 45 | 60 | 46-54 | 170-230 |
| 10″ | 250QJ(H)63-160/8 | 45 | 60 | 58-68 | 130-184 |
| 10″ | 250QJ(H)80-120/6 | 45 | 60 | 74-86 | 102-138 |
| 10″ | 250QJ(H)100-80/5 | 45 | 60 | 80-120 | 68-92 |
| 10″ | 250QJ(H)100-108/6 | 45 | 60 | 80-120 | 96-126 |
| 10″ | 250QJ(H)125-80/5 | 45 | 60 | 116-134 | 68-92 |
| 10″ | 250QJ(H)140-75/5 | 45 | 60 | 130-145 | 65-86 |
| 10″ | 250QJ(H)160-60/4 | 45 | 60 | 148-172 | 52-69 |
| 12″ | 300QJ(H)240-44/2 | 45 | 60 | 223-257 | 37-51 |
| 14″ | 350QJ(H)320-30/1 | 45 | 60 | 305-335 | 28-32 |
| 16″ | 400QJ(H)500-20/1 | 45 | 60 | 460-540 | 18-22 |
