Water Pump Direct Sale
Professional Submersible Pump Manufacturer
Water Pump Direct Sale
Professional Submersible Pump Manufacturer
Water temperature: 0~40℃
Ambient temperature: 0~40℃
Solid passage: 35~50MM
Operating water depth: Max.8~10M
No 24hrs continuously running.
No use in (100%)pure sea water
2P dry type or oil type motor.
Insulation: F class
Protection: IP68
Frequency: 50HZ
Voltage: 1 phase 220~240V (0.5~2HP), 3 phase 220~440V (all models)
E-mail: marketing@apkpump.com
WhatsApp: +86 175 3718 7726
Non-clogging impeller minimizes abrasives wear and allows large solid passage.
Dry motor with overload protector; Cable with an epoxy resin sealed water-proof cable hood; Use deep groove C3 bearing to extend life time.
Superior abrasion resistant double mechanical seal made of silicon carbide (SIC) to ensure best seal effect and reduce abrasion from sewage.
SUS316 main sub. pump components minimize abrasion from sewage and wastewater.
Waste water drainage from all industries.
Sewage drainage from hotels, restaurants, schools, malls, and public buildings.
Fishery, animal husbandry, stock farm, piggery, and fecal sewage tank in water treatment plant.
Drainage of waste water containing fibrous additives from leather factory, dyeing factory and food processing factory.
PH3~11 industrial or domestic wastewater.

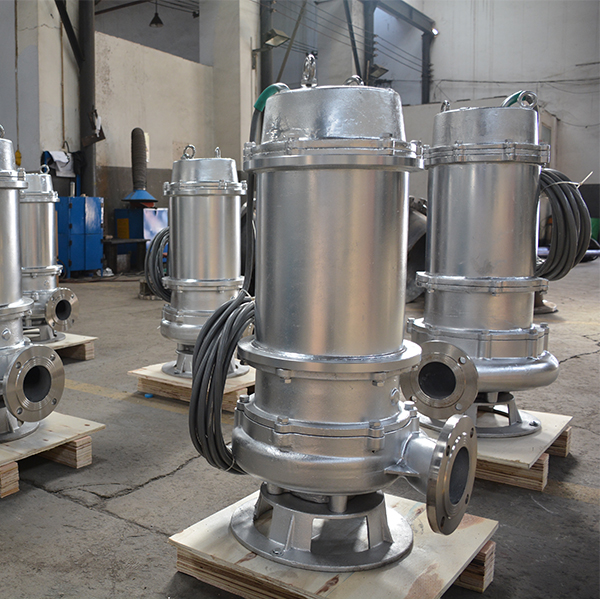

The great cast stainless steel construction with single blade semi-open non-clogging impeller with advanced shredder mechanism for best sewage handling in clean water or screened wastewater.
Hydro-dynamically well-balanced Dual blade semi-open non-clogging type for sewage application.
Fully Stainless SCS13(#304) Construction
Single Blade Semi-Open Non-clogging type Impeller.
Advanced “Shredder Mechanism”
Unique “Epoxy Cable Sealing Base”.
Double Mechanical Seal (SiC/SiC with Viton) and separate Viton Oil Seal.
Adopt Viton O-Ring for the whole pump.
TR submersible slurry pump has vertical single stage and single suction system in overhung structure, adopting wear-resistant alloy material and can convey the mud / slurry with bigger solid particles. Single screw pump is used in all fields widely to feel kinds of medium, running at a constant pressure continuously, without pulse and damage when feeding medium, and change the gauging aim through adjusting rotation speed.
Our YZ series submersible slurry pump consists of impeller, pump case, pump shaft, bearing, driven power, supporting frame, coupler, shaft sleeve, shaft seal. Usually we use the electrical motor to drive the pump. Popular flow rate of the pump varies from 25m³/h to 200m³/h.
Submersible slurry pump normally is used for feeding shale shaker for CBM, HDD or other drilling industry. It is vertical single stage and single suction system and made of abrasion-resistant alloy. The standard length of pump 1.3m but TR submersible slurry pump can be customized.
| Model | Flow | Lift | Speed | Motor |
| 50YZ25-12 | 25m3/h | 12m | 1430r/min | 3kw |
| 50YZ20-18 | 20m3/h | 18m | 1430r/min | 4kw |
| 80YZ50-20B | 40m3/h | 16m | 1440r/min | 5.5kw |
| 80YZ50-20 | 60m3/h | 17.5m | 1440r/min | 7.5kw |
| 80YZ80-20 | 90m3/h | 22m | 1460r/min | 11kw |
| 100YZ100-30A | 75m3/h | 30m | 1470r/min | 18.5kw |
| 100YZ100-30 | 60m3/h | 36m | 1470r/min | 22kw |
| 100YZ160-38B | 82m3/h | 33m | 1480r/min | 30kw |
| 100YZ120-60 | 120m3/h | 40m | 1480r/min | 45kw |
| 150YZ250-40A | 135m3/h | 35m | 1480r/min | 55kw |
| 150YZ250-40B | 120m3/h | 28m | 1480r/min | 37kw |
