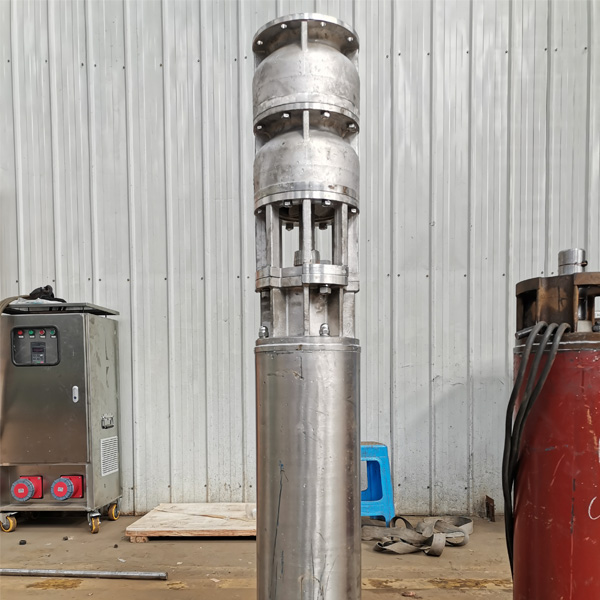

Easy Maintenance Submersible Pump Prices 50HP

37kw 50hp Electric Deep Well Submersible Pump Price

High head and big capacity
Pump efficiency not less than 70%
Continuous running 1800 hours
More than 7 years life with clean water
low noise and long lifetime
Water-filled motor, no water pollution

Franklin Electric 2366188125 Sand Fighter Motor- w/Subtrol 6″ 50-HP 460/380-Volts 60/50-Hz Three-Phase 3-Wire

Franklin’s 6-inch submersible motors are typically used in large demanding water wells requiring high flow rates or deeper installations. These motors are tought, built to last and come in a variety of construction options.

Double Flanged NEMA Mounting Design
Stainless Steel Splined Shaft
StatorShield Franklin’s Six Feature Encapsulation System
High-Capacity Kingsbury Type Water Lubricated Thrust Bearing
Factory-Filled with Franklin’s Non-Toxic Water Soluble Fill Solution
Field Replaceable Lead using Franklin’s Exclusive Water Bloc™ Technology
Full 3450 RPM 60 Hz Design Point
External Sand Slinger on Shaft
Mechanical Face Seal at Shaft Exit
Copper Bar Rotor
All Models Variable Frequency Drive (VFD) Compatible
Single-Phase Models must be used with a Franklin Electric Control Box

Crompton Greaves Three Phase 50 HP Submersible Pump-D4R50

Brand-Crompton Greaves, Type-Submersible Pump, Voltage Rating-220V, Outlet Size-150mm, Power Rating-50 HP and 37.5 kW, Head Range-100-72 Meter Flow Range-1000-2100 LPM, Phase-3, Weight-10 Kg, Packaging-1.
10″ Submersible Pumpset Suitable For 250mm Borewell.
CG offers a wide range of Submersible Pump sets suitable for 250mm borewells. Our Submersible Pumpsets are specially designed, with the use of latest manufacturing techniques, to meet the water requirements of the different needs in domestic and agriculture use.
Warranty as per manufacturer’s warranty policy.

Submersible Solids Handling Pump 50 HP 460V 3PH Manual 35′ Cord

Oil filled motor efficiently dissipates heat and locks out damaging moisture so you receive reliable pumping service. Easily field serviceable.
Standard construction is cast iron.
Stainless steel shaft eliminates corrosion and fatigue for longer pump life. The minimum shaft overhang decreases bearing and seal life. Tapered shaft allows for easy removal of impeller.
Available with a wide range of impellers for different applications. Pump-out vanes on the top shroud prevent the buildup of materials in the seal area and extend the life of the thrust bearing by significantly reducing axial thrust.
The connection box has two epoxy barriers and a compression fitting that prevent water contamination of the motor area, assuring long-term reliable operation. In addition, epoxy encapsulation and stripped leads positively eliminate “wicking” from the cable
Heavy duty upper and lower ball bearings are submerged in oil to provide permanent lubrication and ensure long service life.
Easily replaceable, true wear ring, with a top pullout design for easy disassemble operation.

BODY CONSTRUCTION: Class 30 Cast Iron
HORSEPOWER: 50 HP
RPM: 1750
MAXIMUM HEAD: up to 237′
MAXIMUM CAPACITY: up to 1200 GPM
DISCHARGE PIPE SIZE: 4″ Horizontal Discharge
MAXIMUM SOLIDS HANDLING SIZE: 3″
CORD LENGTH: 35′ Standard
OPTIONAL CORD LENGTH: 50′
CORD SIZE: 6-4; Type: SOOW/W
AMP DRAW (full load): 65.0
VOLTAGE: 3ø, 460V
MAXIMUM LIQUID TEMPERATURE: 140°F
MOTOR: Enclosed, Oil Cooled Induction, VFD Suitable
IMPELLER CONSTRUCTION: Balanced, Enclosed, 2 Vane, Ductile Iron, ASTM A536
IMPELLER SIZE: 12″
