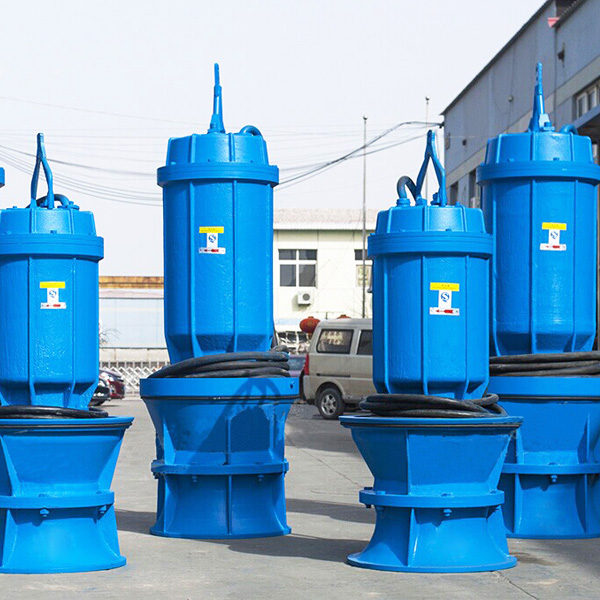

QHB QHZ Type Submersible Axial Flow Pump

Submersible Axialflow (Mixedflow) Pumps

The QZB (QHB) series of submersible axial-flow(mixed-flow) pumps are mainly used in large and medium-sized submersible pump stations and are electromechanical products featuring an integration of motors and axial-flow or mixed-low pumps and are pumps replacing the traditional long-axis axial-flow and mixed-flow pumps.

The QZB (QHB) series of submersible axialflow (mixedflow) pumps are eloctromechanical products featuring an integration of motors and axial-flow or mixed-flow pumps, and they are the next generation of traditional dry type axial-flow and mixed-flow pumps. They constitute the main equipement of a submersible pump station. Submersible pump station has been developing rapidly due to easy engineering, low project cost, convenient maintenance and management, simple installation, easy automation, a high degree of operating reliability and environmental beautification.

DSZ3 submersible axial flow pump

Heavy-duty, air-filled Class F insulated motor – operates cooler with higher efficiencies

Watertight cable entry system – protects against moisture and capillary action and reduces maintenance costs

Self-cooling jacket – provides high reliability and effectively dissipates heat

Double and triple row lubricated thrust bearings – L-10 life of 100,000 hours equates to long, dependable operation and lower maintenance costs

Float type leakage detector – provides early warning of mechanical seal failure avoiding costly motor repairs

Cartridge type, duplex mechanical seals – assembled in tandem arrangement leading to high reliability and easy maintenance
High-efficiency, axial flow impellers – are able to pass large diameter solids with high outputs, preventing clogging and lower operating costs

Replaceable case liner ring – maintains working clearances while reducing casing costs

SSP-GS Submersible Axial Flow Pumps

The SSP-GS-series is a submersible axial-flow pump designed to be installed in a discharge column. The pump offers an efficient and a high volume pumping at a low head application. It features, easy to install and to remove, taking less space for the installation, requiring no priming water, etc. The pump is suitable for a high volume pumping with the pumping head up to five meters. Available from 300 to 1500mm discharge bore sizes with various motor outputs.
