11KW YW Non Clogging Underwater Centrifugal Sewage Transfer Pump

Theory: Centrifugal Pump
Structure: Single-stage Pump
Usage: Water
Fuel: Electric
Application: Sewage
Pressure: High Pressure
Feature: Sewage Pump

E-mail: marketing@apkpump.com

WhatsApp: +86 175 3718 7726

Inquiry

Product Description
Get Price

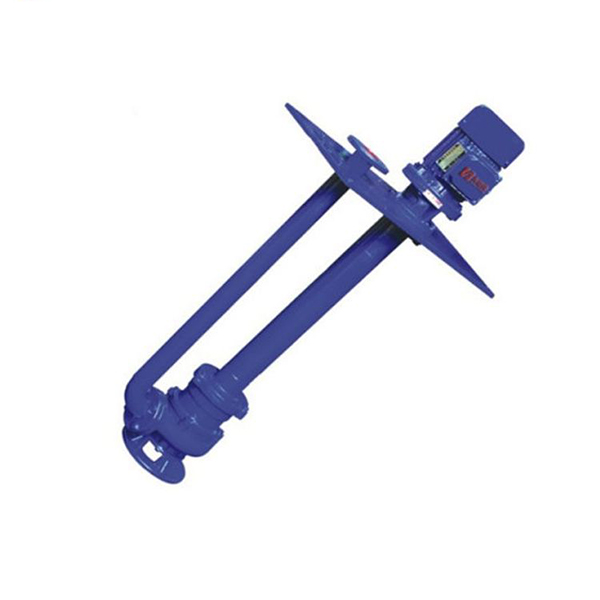

11KW YW Non-clogging Underwater Sewage Pump

YW non-clogging underwater sewage pump is a new generation pump developed with advanced technology in universal market. It is an ideal sewage pump for discharging liquid with solid particles and long fiber wastes.

suitable for stationary commercial plant for polluted wastewater discharges, residential sewage stations, urban sewage treatment plant drainage systems, air defense system, pumping station, water plant’s water supply facilities, hospitals, hotels sewage emissions, municipal engineering construction sites, mining facilities with machines, biogas digesters in rural areas, irrigation and other industries, conveyor belt particles of sewage, dirt.

YW100-100-25-11

First 100 — outlet caliber (6kg flange)
YW — underwater sewage pump
P — * P stainless steel
* B explosion proof
Second 100 — Q
15 — H
11 — rated power 11kw

YW Non Clogging Underwater Centrifugal Sewage Transfer Pump Features:

1. Design of large channel anti clogging hydraulic model.

2. Big dirt-diacharged capacity, can discharger fiber whose length is 5 times as the length of the pump’s diameter, and slos solid particles whose diameter is 50% of the pump’s.

3. Suitable design and motor. It has high efficiency.

4. Double-channel series seal. The material is hard wear-resistant tungsten carbide. The pump can operate for over 8000 hours.

Medium temperature ≤60℃. Density 1 – 1.3kg/m³.

Medium PH5~9. Pump made of stainless steel can work with general corrosive medium.

Environmental temperature ≤60℃. Humidity ≤95%. Altitude ≤1000 meters.

YW Non Clogging Underwater Centrifugal Sewage Transfer Pump Technical Datesheet

Model	Caliber	Flow	Head	Power	Speed	Efficiency
Model	(mm)	(m3/h)	(m)	(kw)	(r/min)	(%)
YW25-8-22-1.1	25	8	22	1.1	2825	38.5
YW32-12-15-1.1	32	12	15	1.1	2825	40
YW40-15-15-1.5	40	15	15	1.5	2840	45.1
YW40-15-30-2.2	40	15	30	2.2	2840	48
YW50-20-7-0.75	50	20	7	0.75	1390	54
YW50-10-10-0.75	50	10	10	0.75	1390	56
YW50-20-15-1.5	50	20	15	1.5	2840	55
YW50-15-25-2.2	50	15	25	2.2	2840	56
YW50-18-30-3	50	18	30	3	2880	58
YW50-25-32-5.5	50	25	32	5.5	2900	53
YW50-20-40-7.5	50	20	40	7.5	2900	55
YW65-25-15-2.2	65	25	15	2.2	2840	52
YW65-37-13-3	65	37	13	3	2880	55
YW65-25-30-4	65	25	30	4	2890	58
YW65-30-40-7.5	65	30	40	7.5	2900	56
YW65-35-50-11	65	35	50	11	2930	60
YW65-35-60-15	65	35	60	15	2930	63
YW80-40-7-2.2	80	40	7	2.2	1420	52
YW80-43-13-3	80	43	13	3	2880	50
YW80-40-15-4	80	40	15	4	2890	57
YW80-65-25-7.5	80	65	25	7.5	2900	56
YW100-80-10-4	100	80	10	4	1440	62
YW100-110-10-5.5	100	110	10	5.5	1440	66
YW100-100-15-7.5	100	100	15	7.5	1440	67
YW100-85-20-7.5	100	85	20	7.5	1440	68
YW100-100-25-11	100	100	25	11	1460	65
YW100-100-30-15	100	100	30	15	1460	66
YW100-100-35-18.5	100	100	35	18.5	1470	65
YW125-130-15-11	125	130	15	11	1460	62
YW120-130-20-15	125	130	20	15	1460	63
YW150-145-9-7.5	150	145	9	7.5	1440	63
YW150-180-15-15	150	180	15	15	1460	65
YW150-180-20-18.5	150	180	20	18.5	1470	75
YW150-180-25-22	150	180	25	22	1470	76
YW150-130-30-22	150	130	30	22	1470	75
YW150-180-30-30	150	180	30	30	1470	73
YW150-200-30-37	150	200	30	37	1480	70
YW200-300-7-11	200	300	7	11	970	73
YW200-250-11-15	200	250	11	15	970	74
YW200-400-10-22	200	400	10	22	1470	76
YW200-400-13-30	200	400	13	30	1470	73
YW200-250-15-18.5	200	250	15	18.5	1470	72
YW200-300-15-22	200	300	15	22	1470	73
YW200-250-22-30	200	250	22	30	1470	71
YW200-350-25-37	200	350	25	37	1980	75
YW200-400-30-55	200	400	30	55	1480	70
YW250-600-9-30	250	600	9	30	980	74
YW250-600-12-37	250	600	12	37	1480	78
YW250-600-15-45	250	600	15	45	1480	75
YW250-600-20-55	250	600	20	55	1480	73
YW250-600-25-75	250	600	25	75	1480	73
YW300-800-12-45	300	800	12	45	980	76
YW300-500-15-45	300	500	15	45	980	70
YW300-800-15-55	300	800	15	55	980	73
YW300-600-20-55	300	600	20	55	980	75
YW300-800-20-75	300	800	20	75	980	78
YW300-950-20-90	300	950	20	90	980	80
YW300-1000-25-110	300	1000	25	110	980	82
YW350-1100-10-55	350	1100	10	55	980	84.5
YW350-1500-15-90	350	1500	15	90	980	82.5
YW350-1200-18-90	350	1200	18	90	980	83.1
YW350-1100-28-132	350	1100	28	132	740	83.2
YW350-1000-36-160	350	1000	36	160	740	78.5
YW400-1500-10-75	400	1500	10	75	980	82.1
YW400-2000-15-132	400	2000	15	132	740	85.5
YW400-1700-22-160	400	1700	22	160	740	82.1
YW400-1500-26-160	400	1500	26	160	740	83.5
YW400-1700-30-200	400	1700	30	200	740	83.5
YW400-1800-32-250	400	1800	32	250	740	82.1
YW500-2500-10-110	500	2500	10	110	740	82
YW500-2600-15-160	500	2600	15	160	740	83
YW500-2400-22-220	500	2400	22	220	740	84
YW500-2600-24-250	500	2600	24	250	740	82
