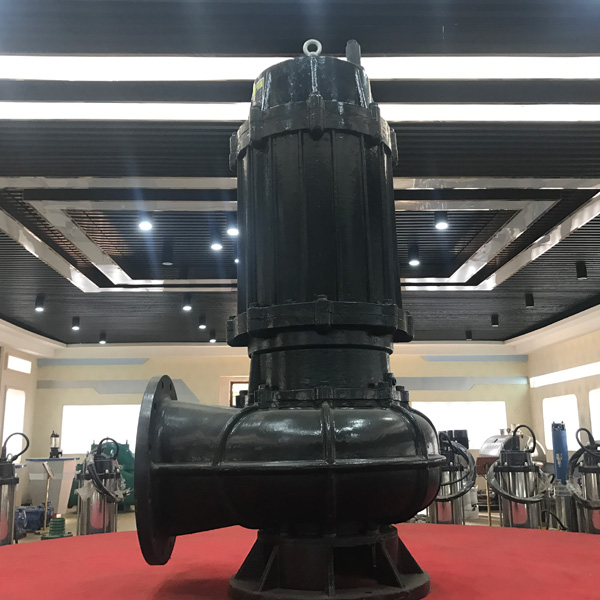

300 AFP Series Activated Sludge Submersible Pumps

300 AFP Series Activated Sludge Submersible Pumps Description

The submersible sewage pump type ABS AFP range offers reliable and economical pumping of heavily polluted sewage in commercial, industrial and municipal applications. The AFP range provides excellent rag handling, and power up to 550 kW (50 Hz), 600 kW / 805 hp (60 Hz).

300 AFP Series Activated Sludge Submersible Pumps Application

• Clear and wastewater, for sewage containing solids and fibrous material
• Faecal matter
• Sludge
• Fresh and process water pumping
• Raw water for drinking water supply
• Surface and rain water
• Sewage
In combination with the ABS automatic coupling system, the below ground level wet installation is a particularly economical and environmentally friendly solution.

Submersible Sewage Sludge Pumps

In past few decades industrial manufacturing sector has grown with a rapid pace leading to higher living standards. This has also led to major problem by form industrial effluent and household sewage. Vast quantities of waste water have damaged the eco system and polluted our water source to a great extent. Toshio Technology has been making every endeavor in developing the waste water treatment equipment. In addition to waste water pumps and sewage pumps, the company has developed submersible aerator for efficient treatment rate of waste water. These aerators have been widely used in domestic and overseas waste water treatment plants.

A submersible pump (or sub pump, electric submersible pump (ESP)) is a gadget which has a hermetically fixed engine close-coupled to the pump body. The entire get together is submerged in the liquid to be pumped. The principle favorable position of this sort of pump is that it counteracts pump capitation, an issue related with a high height contrast amongst pump and the liquid surface. Submersible pumps push liquid to the surface instead of fly pumps pulling liquids. Submersibles are more proficient than fly pumps.

Electric submersible pumps are multistage centrifugal pumps operating in a vertical position. Liquids, accelerated by the impeller, lose their kinetic energy in the diffuser where a conversion of kinetic to pressure energy takes place. This is the main operational mechanism of radial and mixed flow pumps.

Non Clogging Sludge Pumps, Flow Rate (Q) 8 – 300 (m3/h)

Outlet Diameter 25 – 200
Flow Rate (Q) 8 – 300 (m3/h)
Lift Head (H) 7 – 35 (m)
Power Consumption 0.75 – 37 (kw)
Particle Size Tolerance 15 – 80 (mm)
Fiber Length Tolerance 150 – 1,000 (mm)

The Series GW / LW / YW non-clogging sludge pumps have been developed with the current advanced technologies at home and abroad. The products are equipped with the special single-channel impeller and two sets of hard alloy dynamic seals and possess the features of non-clogging, long life expectancy, high efficiency and energy saving. The Series GW in-line non-clogging sludge pumps are applicable to both the forced water transportation and the process of sludge / slurries containing big particles and fibers. The pumps are widely employed in the chemical, textile, pharmaceutical and waste recycling industries. The Series LW vertical non-clogging sludge pumps are able to operate either movably or at a fixed site, suitable for sludge pumping of civil engineering projects and business buildings. They can also serve as pulp pumps or be used for irrigation. With either single line or double line models, the Series YW submersible non-clogging sludge pumps can be mounted in a water tank or pool so that the pump body locates under liquid. The pumps are used for domestic waste water drainage, slurry pumping in construction sites, underground sewage drainage and discharging industrial sewage containing big solids.

Sand Sludge & Slurry Industrial Pumps JST-KB & JST-KZN Series

JS Pump. JST KZN Top discharge submersible pumps designed to face the toughest of pumping jobs of sand, sludge and slurries. These superb high quality pumps are a must on construction and mining sites for the drainage of water, aggregate, mill scale and coal ash, also used in slag pits and for mud drilling.

JS Pump. JST KB Top discharge submersible pumps designed to face the toughest of pumping jobs of sand, silt and slurries. These superb high quality pumps are a must on construction and mining sites for the drainage of water and aggregate, also used for dam drainage and retention ponds. Built in agitator helps to swirl up solids before discharging.v
