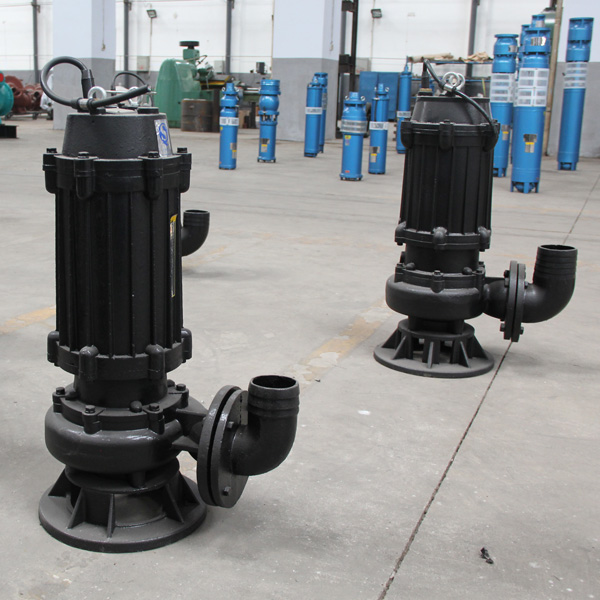

Cast Iron Electric Submersible Sewage Pump With Cutter

Durable, corrosion proof materials for resistance to sewage
Integrated float switch for auto start/stop function
Max head up to 9.8m
Max immersion depth of 5m
Soft solids handling up to 30mm
Thermal overload protection

Cast Iron Sewage Pumps with Cutter

With high-speed cutter is fixed at the inlet hole of the pumps, make it easy to cut off long-fiber and firm sundries contained in the sewage. Made of cast iron, suitable for sewage and dirty water systems with solids, waste water, removal of treated liquid waste and tank emptying and general dirty water duties.

Cast Iron Sewer Submersible Pump With Cutter Wholesale Price

Model No flow rate(m3/h) head(m) power(kW) discharge          (inch)  Efficiency(%)
50WQ20-55-11 20 50 11 2 37.9
65WQ30-40-11 30 40 11 2.5 40
80WQ60-30-11 60 30 11 3 56.1
100WQ80-25-11 80 25 11 4 58.1
150WQ100-20-11 100 20 11 6 57.6
200WQ180-11-11 180 11 11 8 64.2
50WQ20-70-15 20 70 15 2 41
65WQ30-60-15 30 60 15 2.5 42.1

HEAVY DUTY Sewage Pump with cutter – Submersible – 1100w/2inch

This 2 inch 1100w Macerator pump is built to a very high specification and is suitable for Sewage as well as Grey/Drainage water. The cutting system is especially designed for domestic sewage.

The pump is made of durable cast iron with a stainless steel spindle and cast steel macerator blade.

It is equipped with an integral float switch for automatic operation and an overload protection mounted on the cable.

APPLICATION: Pumping sewage from domestic storage and septic tanks and draining flooded rooms, houses, garages and premises to 15m maximum head – 400 litres minute.

PUMP WARRANTY WILL BE VOID IF THIS PUMP IS USED FOR PUMPING ANYTHING OTHER THAN SEWAGE, FOUL AND DIRTY WATER. FACE/CLEANING WIPES, NAPPIES OR THE LIKE MUST NOT BE PUMPED.

OPERATING CONDITIONS: Maximum liquid temperature 35C, ambient temperature 40C. Class B Insulation.

OPERATING MODE: IP68 profection. Water PH – 5-8. CE approved.

The CTR pump range is equipped with thermal cut-out/reset protection mounted on the power cable.

MATERIALS: cast iron motor housing, cast iron pump body, stainless steel AISI 304 motor shaft, cast iron impeller, ceramic/graphite mechanical seal. Rotational speed of the electric motor: 2850 rpm. Cable length: 10 m with EU 2 pin plug and a 13amp UK plug.

Automatic Submersible Sewage Cutter Pumps

This heavy duty submersible sewage cutter pumps can lift water up to 9.8M and pump effluent up to 380 Litre/per min.

They are supplied with 10 meters of cable for easy installation.

These cutter pumps are commonly used in our packaged pump stations where raw household effluent or sewage needs to be pumped from an underground tank uphill to the septic system.

Model Number = RCE90
Max Flow = 380LPM
Max Head = 9.8m
Outlet = 40mm / 1.5″
Particle Size = 30mm
Warranty = 1 Year
Dimensions = L 220mm x W 160mm x H 380mm

These sewage cutter pumps are designed to cut raw sewage and toilet paper but nothing more than that. If you know that other items may be flushed down into the tank then a sewage grinder pump would be more suitable.

They are tough performers that are built to the highest standard to guarantee a lasting investment. The motor is precision manufactured with stringent quality control to ensure consistent reliability and endurance. The triple seal system provides additional protection from the harsh environment found in sewage systems.
