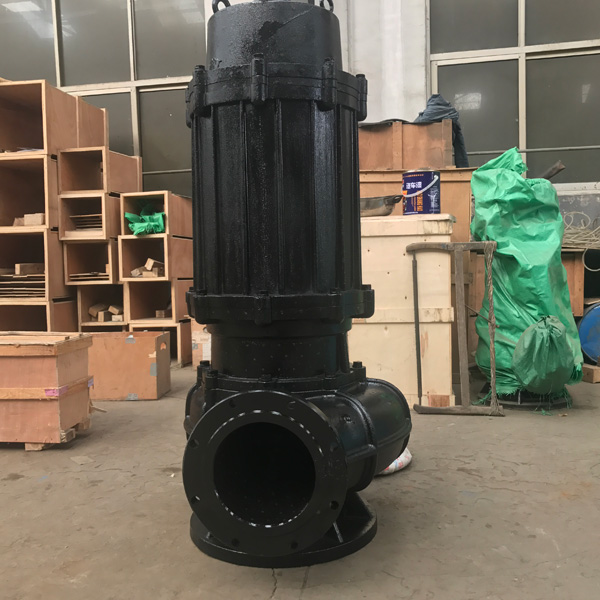

Centrifugal Submersible Pump For Sewage Water

Working Principle: Submersible centrifugal pump
Size: 25~600mm
Flow: 8~4000 m3/h
Head: 7~60 m
Power: 0.75~315 kW
Shaft Seal Type: Mechanical Seal
Material: Cast iron, SS304, SS316, 2205 duplex stainless steel

What is a Centrifugal Pump?

A centrifugal pump only has an impeller as a moving part. Impeller is attached to a shaft that is driven by a motor. The other main part of the pump is a diffuser. Impellers are usually made of stainless steel, cast iron, bronze, thermoplastic, or a variety of different materials. A diffuser, also called Volute, houses the impeller and captures the water coming off of the impeller

Sump Pump | Sewage Pump | Effluent Pumps

Sump Pump: A sump pump is a centrifugal pump used to drain water from basement of the house. Sump pumps remove water from the basement. A sump is a hole dig in the basement of the house to collect ground water. The sump pit holds water. The pit is also known as basin and holds the sump pump. The sump pump monitors the water level and pumps the water out when it reaches a certain level. The discharge line that is used to move the water out of the house is also called “effluent”. It connects the sump pump to the drainage area.

Submersible Sewage Water Pump

Applied with the advanced technology of abs pump manufacturing co. in Germany , QW submersible sewage pump is an advanced model among similar products in China. Combined with the efforts of pump researchers and experts in our company and in China and repeated improvements , this pump has reached the advanced level of similar products domestic and overseas. This pump has the features of high energy-saving efficiency, unique structure etc. After the launch of the product, it receives favourable comment and welcome from our massive users and is used as substitutes for imported products by many departments.

Based on the QW submerged sewage Pump, YW submersible sewage pump, GW non-block pipeline sewage pump and LW vertical sewage pump series have rational design according to customer’s requirements and conditions of use. Since the launch of the products, we have been receiving favourable comments and welcome from our massive users for their unique designs and reliable quality.

Centrifugal Submersible Sewage Pump Selection Chart

Type Outlet Dia. (mm) Capacity (m3/h) Head (m) Power (kw) Efficiency (%)
50WQ15-8-0.75 50 15 12 0.75 52
50WQ25-36-7.5 50 30 15 7.5 48
65WQ30-10-2.2 65 30 10 2.2 62
65WQ30-35-7.5 65 30 35 7.5 50
80WQ50-8-2.2 80 50 8 2.2 60
100WQ80-7-3 100 80 7 3 64
150WQ150-10-7.5 150 150 10 7.5 72
200WQ300-10-15 200 300 10 15 74
250WQ500-10-30 250 500 10 30 72
300WQ700-19-55 300 700 19 55 75
350WQ1100-25-110 350 1100 25 110 76
400WQ2000-23-185 400 2000 23 185 80
500WQ3000-15-132 500 3000 15 185 72
600WQ4000-20-315 600 4000 20 315 77
