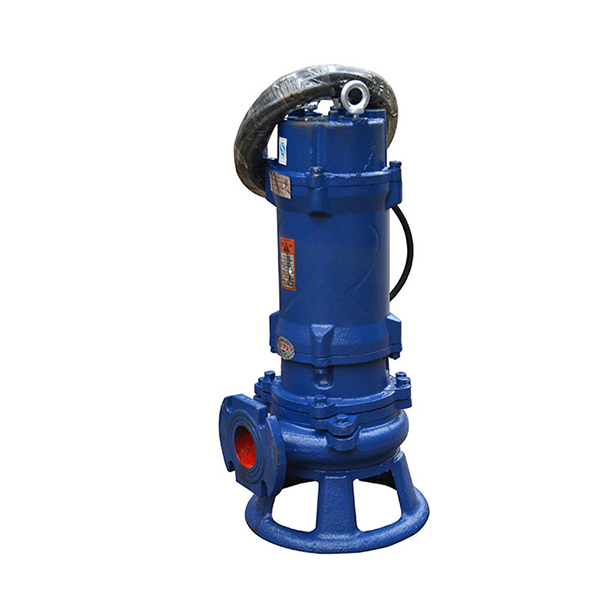

GNWQ Alloy Cutting Type Without Blockage Sewage Submersible Pump

GNWQ Submersible Cutting Pumps

GNWQ Submersible Cutting Pumps has a semi-open impeller design with a reliable grinding system.

The large-diameter impeller generates a high pressure and the grinding system grinds solids into small pieces, which can be drained without clogging the pipes.

The pump can be connected to pipes directly or to an auto-coupling system.

Its recommended to connect these pumps to a Multifunction Controller to protect them against clogging from foreign objects and possible motor burnout. Controller will also protect the pump against under voltage or over voltage issues which can also lead to motor burn outs.

Non-clogging Cutter Submersible Sewer Pumps 0.75 to 1.5kw 230 volts

The GNWQ series is a robust, high-performance submersible macerator pump. The heavy duty patented cutting device makes it excellent for pumping wastewater in residential, commercial and agricultural applications.

The GNWQ series is engineered to meet all challenges of a wastewater system. It fitted with a unique impeller for optimum hydraulic efficiency and a heavy-duty cutting device, which grinds solids into small particles to enable easily transporting fluids. The cutting impeller is design to macerate and shred diapers, sanitary pads, rags and plastic bags. The impeller has a unique back angle design which prevents materials winding on the rotor which prevents clogging..

All components are specially designed and manufactured to optimize operation and prolong pump service life.

Non-clogging Cutter Submersible Sewer Pumps 11 to 132 kw 380 volts

Delivery: up to 1200 m³/h
Head: up to 58 m
Power supply: Three-phase 50 Hz
Power: 11 to 132 kw
Temperature of pumped liquid: to 40 °C
Maximum immersion depth: 5 m
Pump flange compatible with Duck-foot guide rail system.
Pumps come complete with flange elbow
