Water Pump Direct Sale
Professional Submersible Pump Manufacturer
Flow rate: ≤3000m3/h
Head: ≤50m
Motor power: 0.55~280kw
Speed: 1450rpm, 2900rpm
Caliber: DN25~DN500
Design pressure: 1.6Mpa
Temperature: ≤80℃
Voltage: 380V 50Hz, the voltage can be as local demand
E-mail: marketing@apkpump.com
WhatsApp: +86 175 3718 7726

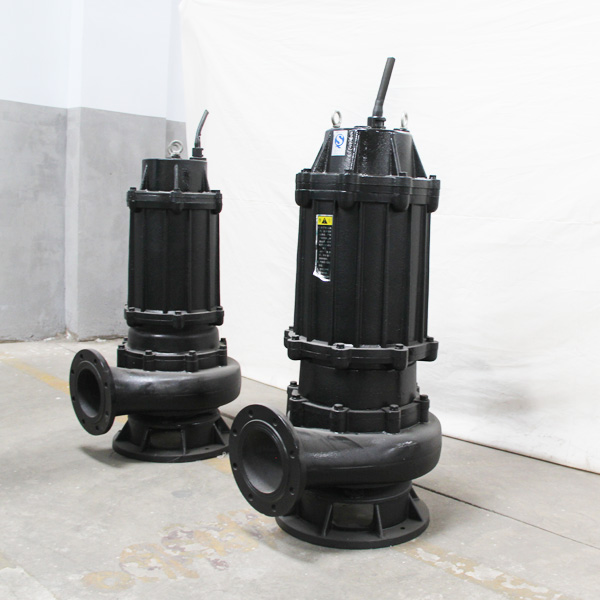

QW series non-blocking cast iron sewage submersible pump is the non-blocking submersible sewage pump developed by our company to introduce the advanced technology of German ABS pump company and has been improved by our company’s scientific research personnel. Energy efficient, unique structure. After the product was put on the market, its unique design and reliable quality were welcomed and praised by users.
We promise to exchange our best quality Magnetic Drive Centrifugal Pump, Vertical Submerged Centrifugal Pump, Self-priming Sewage Pump and considerate service for the success of our cooperation with all customers! We always give back to consumers with advanced technology and excellent quality. We do our best to create fine services for our customers. Since its establishment, our company has been pursuing the novelty and usability of products as the enterprise development goal and to establish the industry image. Our company will comprehensively combine talent advantages, brand advantages, and cultural advantages.
QW type submersible non-clogging sewage pump with a unique single leaf or double blade impeller structure, greatly improving the ability of dirt through the submersible sewage pump can effectively pass the sewage pump pump diameter 5 times the fiber material and diameter Sewage pump pump diameter of about 50% of the solid particles.
QW type submersible non-clogging sewage pump mechanical seal using a new type of hard corrosion-resistant tungsten carbide material, while the seal is improved to double-end seal, so that long-term operation in the oil chamber can make the submersible sewage pump safe continuous operation 8000 Hours or more.
QW type sewage pump overall compact structure, small size, low noise, energy saving effect is obvious, easy maintenance, no need to build pump room, dive into the water to work, greatly reduce the project cost.
QW type submersible non-clogging sewage pump seal oil chamber is equipped with high precision anti-jamming leak detection sensor, and stator windings embedded in the thermal element, the QW submersible sewage pump motor absolute protection.
According to the needs of users with automatic safety control cabinet, submersible sewage pump leakage, leakage, overload and over-temperature and other absolute protection, improve product safety and reliability.
float switch can be based on the required liquid changes, automatic control of submersible sewage pump start and stop, without special care, the use of extremely convenient.
QW type sewage pump can be equipped with dual-rail automatic coupling installation system according to user’s needs. It is very convenient for installation and maintenance. People do not have to enter the sewage pits for this purpose.
can be used in the whole lift range, and ensure that the motor will not overload.
QW type submersible non-clogging sewage pump has two different installation methods, fixed automatic coupling installation system, mobile free installation system.
80QWP40-15-4
80: The pump discharges the nominal diameter
QW: mobile submersible sewage pump
P: stainless steel
40: flow rate (m³ / h)
15: head (m)
4: Equipped with motor power (KW)
We combine technological innovation with cost advantages, strive to create value for customers, and become an advanced solution provider in the Treatment Of Textile Wastewater, Fine Bubble Disc Diffuser, Paper Industry Wastewater Treatment industry. We are willing to offer perfect service for every customer and expects sincere cooperation for proceeding with time. Corporate culture is an emerging management science, and a good corporate culture has become an indispensable element for building a company’s core competitiveness. In order to meet market demand and enrich consumers’ choices, we are working hard to develop new products. In line with the business philosophy of integrity, pragmatism and win-win, we have established a perfect marketing network and after-sales service system to provide the best products for consumers.
Model | Outlet | Capacity | Head | Speed | Power | Efficiency |
(mm) | (m3 /h) | (m) | (r/min) | (KW) | (%) | |
25WQ7-8-0.55 | 25 | 7 | 8 | 2900 | 0.55 | 45 |
25WQ8-25-1.1 | 25 | 8 | 25 | 2900 | 1.1 | 45 |
32WQ8-12-0.75 | 32 | 8 | 12 | 2900 | 0.75 | 48 |
40WQ12-15-1.5 | 40 | 12 | 15 | 2900 | 1.5 | 48 |
50WQ20-7-0.75 | 50 | 20 | 7 | 2900 | 0.75 | 62 |
50WQ10-10-0.75 | 50 | 10 | 10 | 2900 | 0.75 | 54 |
50WQ20-15-1.5 | 50 | 20 | 15 | 2900 | 1.5 | 51 |
50WQ15-30-2.2 | 50 | 15 | 30 | 2900 | 2.2 | 51 |
50WQ17-25-3 | 50 | 17 | 25 | 2900 | 3 | 53 |
50WQ25-32-5.5 | 50 | 25 | 32 | 2900 | 5.5 | 49 |
65WQ25-15-2.2 | 65 | 25 | 15 | 2900 | 2.2 | 52 |
65WQ37-13-3 | 65 | 37 | 13 | 2900 | 3 | 60 |
65WQ25-30-4 | 65 | 25 | 30 | 2900 | 4 | 58 |
80WQ40-7-2.2 | 80 | 40 | 7 | 2900 | 2.2 | 50 |
80WQ80-15-7.5 | 80 | 80 | 15 | 1450 | 7.5 | 45 |
80WQ100-32-18.5 | 80 | 100 | 32 | 2900 | 18.5 | 65 |
80WQ40-15-4 | 80 | 40 | 15 | 2900 | 4 | 57 |
80WQ65-25-7.5 | 80 | 65 | 25 | 2900 | 7.5 | 56 |
100WQ85-10-4 | 100 | 85 | 10 | 1450 | 4 | 62 |
100WQ100-35-18.5 | 100 | 100 | 35 | 1450 | 18.5 | 67 |
100WQ65-15-5.5 | 100 | 65 | 15 | 1450 | 5.5 | 59 |
100WQ100-15-7.5 | 100 | 100 | 15 | 1450 | 7.5 | 70 |
100WQ85-20-7.5 | 100 | 85 | 20 | 1450 | 7.5 | 71 |
100WQ100-25-11 | 100 | 100 | 25 | 1450 | 11 | 61 |
150WQ145-9-7.5 | 150 | 145 | 9 | 1450 | 7.5 | 63 |
150WQ200-10-15 | 150 | 200 | 10 | 1450 | 15 | 64 |
150WQ180-15-15 | 150 | 180 | 15 | 1450 | 15 | 67 |
150WQ180-20-18.5 | 150 | 180 | 20 | 1450 | 18.5 | 74 |
150WQ150-26-18.5 | 150 | 150 | 26 | 1450 | 18.5 | 72 |
150WQ180-35-22 | 150 | 180 | 35 | 1450 | 22 | 69 |
150WQ200-30-37 | 150 | 200 | 30 | 1450 | 37 | 65 |
150WQ150-35-37 | 150 | 150 | 35 | 1450 | 37 | 63 |
200WQ300-7-11 | 200 | 300 | 7 | 980 | 11 | 75 |
200WQ250-11-15 | 200 | 250 | 11 | 1450 | 15 | 72 |
200WQ250-15-18.5 | 200 | 250 | 15 | 1450 | 18.5 | 72 |
200WQ400-10-22 | 200 | 400 | 10 | 1450 | 22 | 75 |
200WQ300-15-22 | 200 | 300 | 15 | 1450 | 22 | 71 |
200WQ400-13-30 | 200 | 400 | 13 | 1450 | 30 | 76 |
200WQ250-22-30 | 200 | 250 | 22 | 1450 | 30 | 71 |
200WQ300-25-37 | 200 | 300 | 25 | 1450 | 37 | 73 |
200WQ250-35-45 | 200 | 250 | 35 | 1450 | 45 | 69 |
200WQ400-30-55 | 200 | 400 | 30 | 1450 | 55 | 72 |
250WQ600-9-30 | 250 | 600 | 9 | 980 | 30 | 78 |
250WQ600-12-37 | 250 | 600 | 12 | 1450 | 37 | 76 |
250WQ600-15-45 | 250 | 600 | 15 | 1450 | 45 | 73 |
250WQ600-20-55 | 250 | 600 | 20 | 1450 | 55 | 73 |
250WQ600-25-75 | 250 | 600 | 25 | 1450 | 75 | 71 |
300WQ800-12-45 | 300 | 800 | 12 | 980 | 45 | 74 |
300WQ480-15-45 | 300 | 480 | 15 | 1450 | 45 | 66 |
300WQ400-20-45 | 300 | 400 | 20 | 1450 | 45 | 64 |
300WQ600-20-55 | 300 | 600 | 20 | 1450 | 55 | 73 |
300WQ800-20-75 | 300 | 800 | 20 | 1450 | 75 | 75 |
300WQ950-20-90 | 300 | 950 | 20 | 1450 | 90 | 76 |
300WQ950-24-110 | 300 | 950 | 24 | 1450 | 110 | 76 |
350WQ1100-10-45 | 350 | 1100 | 10 | 980 | 45 | 85 |
350WQ1180-13-75 | 350 | 1180 | 13 | 980 | 75 | 84 |
350WQ1200-15-90 | 350 | 1200 | 15 | 980 | 90 | 84 |
350WQ1130-18-90 | 350 | 1130 | 18 | 980 | 90 | 83 |
350WQ1250-19.5-110 | 350 | 1250 | 19.5 | 740 | 110 | 83 |
350WQ1500-20.6-132 | 350 | 1500 | 20.5 | 740 | 132 | 82 |
350WQ1500-26-160 | 350 | 1500 | 26 | 740 | 160 | 83 |
400WQ1800-9.5-75 | 400 | 1800 | 9.5 | 740 | 75 | 85 |
400WQ1690-12-90 | 400 | 1690 | 12 | 980 | 90 | 85 |
400WQ2000-13.5-110 | 400 | 2000 | 13.5 | 980 | 110 | 85 |
400WQ1700-22-160 | 400 | 1700 | 22 | 740 | 160 | 83.5 |
400WQ2000-18.4-160 | 400 | 2000 | 18.4 | 980 | 160 | 85 |
400WQ1950-23-185 | 400 | 1950 | 23 | 980 | 185 | 85 |
400WQ1980-26-220 | 400 | 1980 | 26 | 980 | 220 | 83 |
400WQ1800-32-250 | 400 | 1800 | 32 | 740 | 250 | 82 |
450WQ2300-9.5-90 | 450 | 2300 | 9.5 | 740 | 90 | 85 |
450WQ2250-11-110 | 450 | 2250 | 11 | 740 | 110 | 85 |
450WQ2260-14-132 | 450 | 2260 | 14 | 740 | 132 | 85 |
450WQ2280-20-185 | 450 | 2280 | 20 | 740 | 185 | 83 |
450WQ2300-25-250 | 450 | 2300 | 20 | 740 | 250 | 83 |
450WQ2300-29-280 | 450 | 2300 | 25 | 740 | 280 | 83 |
450WQ2100-36-315 | 450 | 2100 | 29 | 740 | 315 | 83 |
500WQ2490-10-110 | 500 | 2490 | 36 | 740 | 110 | 85 |
500WQ2500-16-160 | 500 | 2500 | 10 | 740 | 160 | 85 |
500WQ2490-18.5-185 | 500 | 2490 | 18.5 | 740 | 185 | 85 |
500WQ2500-12-132 | 500 | 2500 | 12 | 740 | 132 | 85 |
500WQ2400-22-220 | 500 | 2400 | 22 | 740 | 220 | 85 |
500WQ2650-24-250 | 500 | 2650 | 24 | 740 | 250 | 85 |
500WQ2400-28-280 | 500 | 2400 | 28 | 740 | 280 | 85 |
