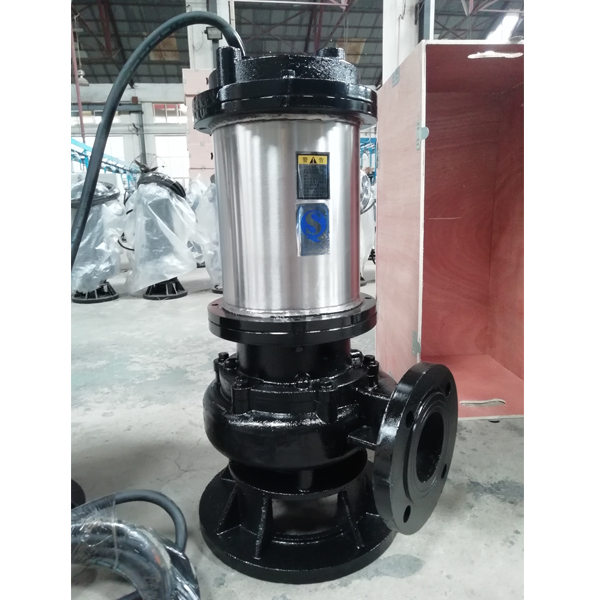

MAF Submersible Pumps For Sewage

Compression Flanges: DN 50 – DN 300 (PN 10- PN 16)
Impeller diameters: ø140 – ø360 mm
Flow: 1600 m3/h’ e kadar
Discharge head: 45m’ ye kadar
Speed: 3600 d/dk’ ya kadar
Operating temperature: 40 ºC’ ye kadar
Body Pressure (Pmax): 10 bar

Submersible Sewage and Wastewater Pumps

Pump is fully protected with a protection relay against possible electric motor overheat, overload and phase failure problems. H70RN-F class rubber coated cables, high resistance to corrosiveness of sewage water. If the cable gland seal fails, the cable gland sealed with resin prevents any possible leakage into the motor housing. Single and double row bearings ensure reliable operation by carrying long loads on the pump. There is a double mechanical seal system which is positioned in an oil bath as tandem for optimum operational safety.

MAF Submersible Sewage Pump Pump Sumo Pumping Machine Feature:

1. Adopting Italian double mechanical seal can ensure the pump to operate for more than 8000 hours continuously

2. The cable adopts anti-fog design, with excellent waterproof performance

3. With unique impeller and volute design, large solid particles can pass through easily (see table for specific particle size)

4. Fully automatic control cabinet can be equipped according to the needs of users to automatically protect the pump from electric leakage and overload, which improves the safety and reliability of the product

Water Pump MAF7.5

60Hz-MAF Submersible Sewage Pump
Power:10kw,7.5hp
Max.Flow:140 m3/h

MAF 0.75kW (1.0HP) x 2′ Submersible Sewage Pump

Model MAF207, MAF207A (Auto Float)
Power 750W (1.0HP)
Voltage 220V-240V
Frequency 50HZ
Current 6.6A
Speed 2850rpm
Max flow 50m3/hour (833L/min)
Max head 11.6mtr
Outlet 50mm (2″)
Max particle 7mm
Insulation Class
Protection IP68
Weight 19kgs
Warranty 12 months

MAF submersible sewage pumps manufacturer

Manufacturer of a wide range of products which include submersible sewage pump, submersible slurry pump, submersible wastewater pump, automatic submersible sewage pump and submersible cutter pump.
