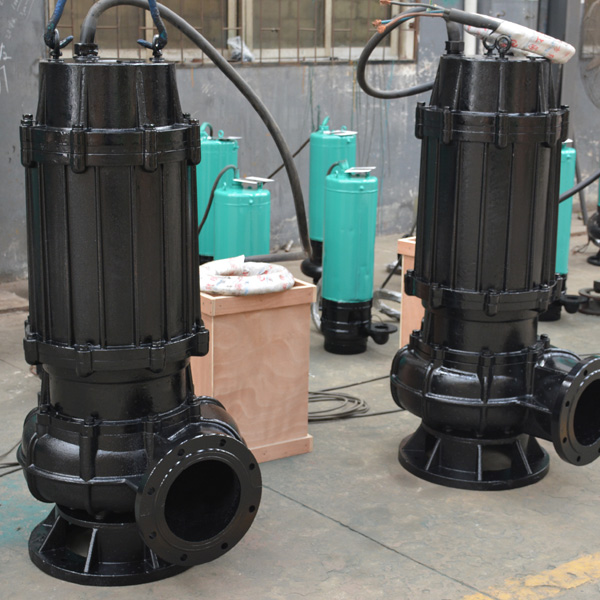

QW Vertical Non Clogging Submersible Sewage Pump Tsurumi Pump

Introduction Of WQ Series Non Clogging Fixed Submersible Sewage Pump:

QW (WQ) non clogging submersible sewage pump is a new generation of pump products developed on the basis of advanced technology and combined with the use characteristics of water pumps. It has the characteristics of remarkable energy-saving effect, anti entanglement system, non clogging, automatic installation and automatic control. It has good effect in discharging solid particles and long fiber waste.

This series of sewage pump adopts unique impeller structure and new mechanical seal, which can effectively transport combined solids and long fibers. Compared with the traditional impeller, the pump impeller adopts the form of single channel or double channel. It is similar to an elbow with the same cross-section size and has better overcurrent. Equipped with a reasonable worm chamber, the pump has high efficiency. After the dynamic and static balance test of the impeller, the pump has no vibration in operation.

Vertical Non Clogging Submersible Sewage Pump Features:

1.Mechanical seal of tungsten carbide, silicon carbide and hard alloy materials avoids the water entering the motor.

2. Auxiliary impeller applies to balance outer pressure of the oil cavity and prolong the motor’s service life.

3. Unique wide flow-channel design ensures the pump has powerful passing capacity and will not easily be silted or intertwined.

4. Can work normally even in low water level, since over 18.5kw power pumps cool off with outer circulating water automatically.

5. Automatic protection device and control case ensure the good performance of the pump.

Model Definition Of WQ Series Non Clogging Fixed Submersible Sewage Pump:

100——Discharge diameter
QW——Q stands for diving and W stands for sewage
YW——Y stands for submerged and W stands for sewage
GW——G stands for pipeline and W stands for sewage
LW——L stands for vertical and W stands for sewage
100——Flow
15——Lift
7.5——Motor power

Tsurumi Sewage Pumps

Tsurumi C Series Cutter Pump is solids handling non-clog submersible pump with a unique tungsten carbide tipped single or multi-vane impeller & high chrome serrated wear plate for shredding of solids.

UZ Serie: Vortex impeller and wide interior pump casing to handle suspended solids.

PU Series: Multi-purpose pump with a semi-vortex impeller to handle solids. Medium head / high volume pump.

MG Series: Foreign matter is finely ground by the built-in grinder mechanism

BZ Series: Solids handing non-clog submersible pump with unique channel impeller designed for raw sewage in wastewater.

BK Series: Solids handling non-clog submersible pump featuring a standard cooling jacket at lo water levels without overheating.
