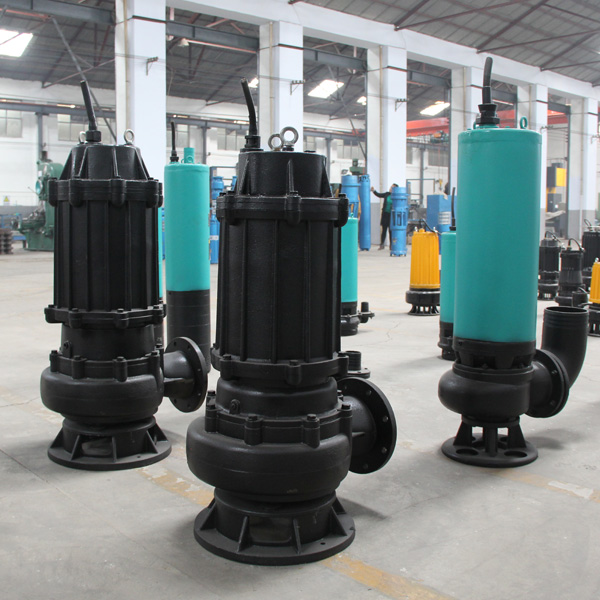

Series Sewage Submersible Water Pump Pumping

Sewage Submersible Pump-JBSP Series

JBSP Series pumps take on the toughest applications of sewage water handing and get the job well done. Every component and parts are designed and manufactured to deliver highly efficient performance. Design of impeller is such that most solid objects entering the pump will pass through the impeller between the impeller vanes.

Number Of Stages: Single-stage Pump
Motor Horsepower: 1.0 to 20 Hp
Brand: JB Pumps
Type: Portable
Discharge Outlet Size: 2 to 6 inch
Insulation: F Class
Impellers: C.I FG 260/ SS 304/ SS 316
All Hardware: SS 316
Motor Body: Stainless Steel / C.I /Aluminum
Mechanical Seal: Double type with variant face combination
Casing: C.I FG 260/ SS 304/ SS 316
Material of Construction: C.I FG 260/ SS 304/ SS 316
Motor Speed: 2900 rpm
Type of Submersible Pumps: Sewage Submersible
Installation/After Sales Service: Yes
Voltage: 220 V (1 Ph) / 420 V (3 Ph)
Solid Size: Up to 80 mm
Flow range: 200 lpm to 5000 lpm
Head range: Up to 60 mtr

Submersible Sewage Pumps ( ENS Series )

Flow ( Q ) : Upto 90m³ / hr or 1500 LPM
Delivery Head ( H ) : Max. 38m
Motor Range : 0.75Kw to 7.5Kw / 1HP to 10HP
MOC : Motor Body SS, Shaft SS.
All other parts in Cast Iron.
Dual Mechanical Seal
Solid Handling upto 30mm

Heavy-Duty Sewage Pumps (LHP series)

Flow range: up to 2520 m³/h
Head range: up to 49 metres
Rating: 3.7 kW & 55.00 kW
Rated speed: 2900, 1450, 960, 750 rpm

The pump shall be designed for liquids which are non-aggressive and non-explosive, sewage/effluent water with solids or fibers.

The pumps shall have non clog, semi open or closed type impeller with material of construction of Cast Iron FG260 (standard supply), CF8 and CF8M, stainless steel shaft, suitable for pumping liquid up to 50 deg. C.

The Pump shall be supplied with double mechanical shaft seal with material of construction of SiC /SiC/Viton/S.S 316 at the pump end.
The pump shall be close coupled with dry submersible motor, having class F insulation, IP 68 protection, epoxy sealed cable entry, with S1 duty for fully submerged and S3 duty for partially submerged, suitable for 3 phase, 415volts, 50 Hz power supply.

All cast iron parts shall be CED (cathode electrode deposition) coated for corrosion resistance with uniform coating and controlled deposition thickness of 20-30 microns.

HCP AF Series Waste Water and Sewage Submersible pump

Max Flow Rate – 1860M³H
Max Head – 40M
Max Temp – 40°C
Max Viscosity – 10 cst
Max Solid Passage – 120mm
Self Priming – N
Inlet/Outlet Sizes – 50mm to 410mm
Drive – AC Electric
Max Suction Lift – 0

The HCP AF range of submersible pumps are heavy duty and designed to handle waste water, sewage many other fluids that contain suspended solids or fibrous content. There are a many different sized pumps within this range, with the largest capable of achieving flow rates up to 1860m³/hr and heads up to 40m.

This HCP AF range is available with several impeller types depending on the nature of the fluid being pumped and the types of solids, these include; vortex, semi-open, twin vane, single vane and closed impellers.

Common applications for this sump pump include; discharging sewage from tanks, attenuation tanks, purifying tanks, sewage treatment works, pumping sewage from domestic properties, sceptic tanks, surface water irrigation, farms, agricultural, draining sewage from commercial buildings, restaurants, hotels and schools, transferring waste water and fluids containing fibrous content from factories.

WQ-Series submersible sewage pump

WQ-Series submersible sewage pump is developed based on imported advanced technology abroad. It has the advantages of high efficiency, not easy to enlace, no clogging, auto-coupling and auto-control, etc. It specializes in discharging of solid granule and long fiber garbage.

WQ-Series submersible sewage pump Features

Compact and reliable structure.
Effective design of unique seal cable avoids cable breakage that leads to leakage.
Leakage detector inside the wiring chamber alarms if there is leakage inside, with control system protecting the pump.
The insulation class for the rotor of the motor is F. Every phase is equipped with overheating and overloaded protective components.
Stainless steel is used for the rolling motor shaft. The dynamic balance of rotor is carried out to make pumps run more smoothly.
Normally, a pump is not supposed to run dry. Yet a circulation cooling system within the pump can cool down the motor rotor, which improves the motor’s working condition so that the pump could expose outside the water surface or the pump runs dry. (Circulation cooling system does not apply to pumps under 18.5kW)
Two sealing detectors to alarm any seal leakage.
Carborundum or carborundum double end face is used in mechanical seal to ensure that the pump can operate safely and reliably for a long period of time.
Full head, powerful flow, block-proof and high efficiency thanks to the flow impeller design. Easy adjustment on capacity. Great for model selection.
