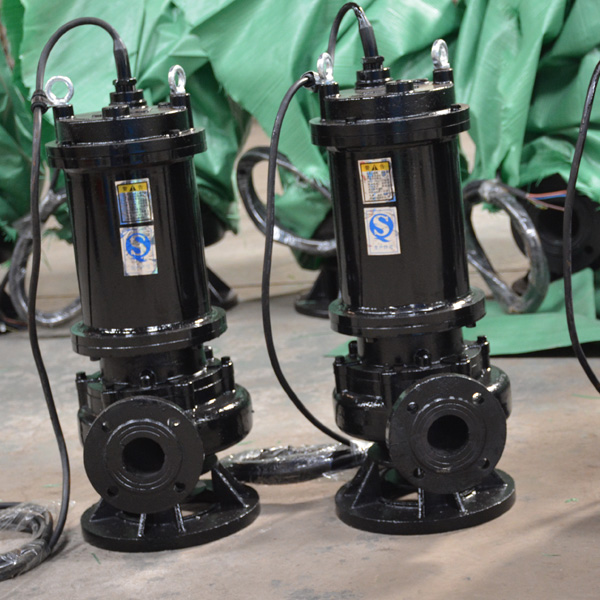

Submersible Pump Single Stage EP Series Non Clog Sewage Pump

RANGE : 3.0 HP TO 150 HP
HEAD : UP TO 90 MTR.
CAPACITY : UP TO 650 M3/HR
SOLID SIZE : UP TO 125 mm (suspended solid)
SPEED : 2850 rpm/1440 rpm/960 rpm

Ep Series Stainless Steel Sump Pumps

The Shenlong EP Series Sump Pumps offer you a complete comprehensive range of submersible drainage pumps for pumping slurry, dirty and semi-dirty water.

Never before have benefits this big been offered in a drainage pump. The versatility and rugged construction of these pumps allow for confident use in fixed or mobile service with either automatic or manual operation.

The EP series is engineered for applications involving sewage, effluent, wastewater processing and solids laden media.

EP series pumps are available with either oil-filled submersible motors OR Premium Efficient Air Filled envie3 motors. Envie3 motors allow for installation into submersible, dry pit, vertical and horizontal installations. Available in both standard and explosion proof designs, SH pumps are offered up to 150HP in 3″, 4″, 6″, 8″, and 10″ discharge.

Non-clog Type Submersible Sewage pump EP series

Non-clog type impeller is applied in order to protect the impeller.

Longer life mechanical seal is applied for the shaft seal.

There are two variations for these models, one in Flange Type (Self-standing type), the other in Quick Coupling Type so as to meet the need of customers.

Drainage out of sewage water treatment plants, stock farms, food industries as well as irrigation works in agricultural industries.

Submersible Pump Single Stage EP Series Non Clog Sewage Pump

Non-Clog Sewage Submersible Pump Features

Cable base and core wire are dealt with Epoxy Resin to avoid the moisture into the motor.
Volute casing is equipped with the vortex impeller for drawing out mud and sewage effectively.
Equipped with vent bolt at volute casing is to avoid air lock ensuring the pump operation steady.
Equipped with a high-quality dual SIC mechanical seal.
Motor is B class(130°C) insulation, enclosure IEC IP68.
Auto-cut prevents the motor from overheat.
This type can be equipped with a lift bracket.

Non Clog Sewage Submersible Pump Manufacturer

The Shenlong Pump make “EP” Series is designed in single stage submersible Non-clog Sewage pump of close coupled vertical ( mono-block type) construction.

EP Series non clog submersible sewage pump offer simple the most economical and most reliable way of solving the pumping and disposal of sewage containing suspended solids, pumping of raw unscreened sewage and effluent, storm water , sand with water as well as raw and waste water containing large solid objects.. Shenlong rich experience over several year in the filed of designing and manufacturing of varieties of reliable and efficient pump which need practically no maintenance . These pump compactly designed pump are easy to handle and can be installed permanently with the help of automatic coupling in a small sump form where sewage is to be pumped or can be use portable duty .Being submersible they do not require any other pump house.
