Water Pump Direct Sale
Professional Submersible Pump Manufacturer
Flow rate:3~1800m³/h
Head:2~66m
Temp:0℃~+40℃
Voltage:220V/380V
Material:Stainless steel/Cast iron
E-mail: marketing@apkpump.com
WhatsApp: +86 175 3718 7726
The sewage submersible pump is composed of two parts: the motor and the pump. The two are separated by an oil chamber and a mechanical seal assembly. Divided into fixed automatic coupling installation and mobile installation

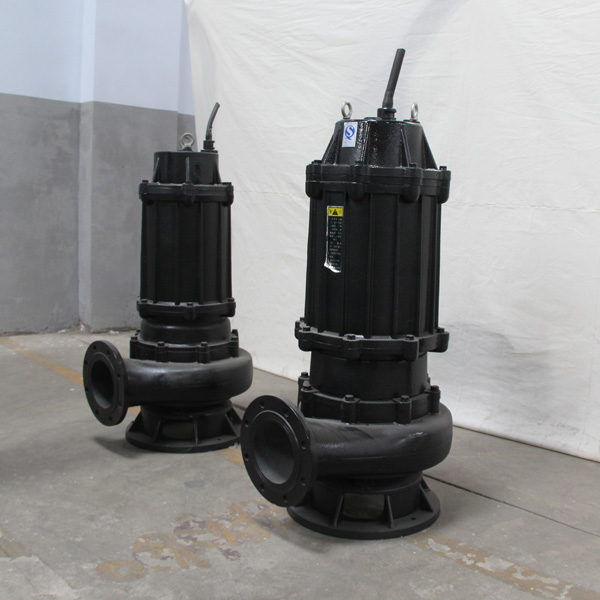

WQ(I) type submersible sewage pump
WQ-JY(I) type submersible sewage pump
WQ-QG(I) cutting type submersible sewage pump
WQ-W(I) non-clogging cutting type submersible sewage pump
WQ-X(I) type submersible sewage pump
WQ-H(I) high head high solid passing submersible pump
WQ series submersible sewage water pump Max.permissible fluid temperature:80°C. WQ sewage pump casing material:cast iron or stainless steel(SUS 304,SUS 316).
Botou kemai pump WQ series submersible sewage water pump is new-generation products.
It is an ideal pump for waste water,dirty water, rainwater, living water, sewage contains solid, food plastic bags,long fiber and other suspensions.
The impeller adopts particular largechannel structure, so the drain capacity has been improved greatly.
Mechanical seal adopts the latestmaterial and is made with extra care, so its life is over 8000 hours.
The dirty water submersible pump canadopt double-way and automatic coupling installation device which makes theinstallation, maintenance of the unit convenient and quick.
Product Name: | WQ 380v Non-clogging Submersible Sewage Pump | ||
Material: | Cast iron | ||
Seal Material: | Graphite/silicon carbide | ||
Max. Flow: | 2400m3/h/ 10567GPM | ||
Max. Head: | 40m | ||
Max. Pressure: | 4bar/58psi | ||
Max. Working temperature: | 60℃/140F | ||
Max. rev: | 2950rpm | ||
Motor Power: | 0.55kw~315kw | ||
Voltage: | 220v,380v | ||
Motor: | AFT,50hz/60hz | ||
Available Connection: | Flange(EN1092-2,IS07005-2) | ||
Operated: | Electric | ||
Application Scope: | Sewage treatment system | ||
Packaging Details: | Wooden box | ||
Delivery details: | 7-20 days after receiving payment | ||
Brand: | LYSON or OEM |
