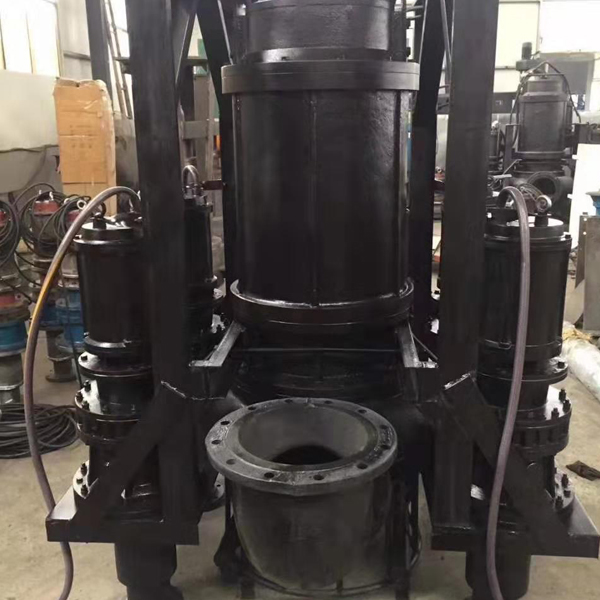

110KW Heavy Duty Submersible Sand Pump With Controller Box

110kw Submersible Sand Dredging Pump

The SS series submersible sand dredging pump are specially designed to pick up and transport abrasive materials wit the least of water. The design incorporates the patented agitator, attached directly to the pump shaft, which together with the closed impeller, large open passages for the easy passage of solids, heavy duty shaft/bearing configuration, results in the most rugged submersible slurry pump.

The agitatore eliminates solids accumulating on the sump floor and can significantly reduce maitenance costs resulting from digging out sumps and downtime due to solids building up and choking off the suction of conventional pumps. It is because of the agitator’s patented blade that the highest efficiency in material mixing can be accheived.

110KW Sand Dredging Pump With Rotating Agitator Product Feature

1)Large cut water clearance

The pump casing features a large cut water clearance which allows the easy passage of large solids and reduce wear and erosion to improve service life and energy saving

2) Integral agitator

The 27% chrome white iron agitator assists in the pumping of slurry by breaking up large particles and agitating high concentrations of solids.

3)Heavy duty construction

The pump casing, impeller, backplate and agitator are made from high quality 27% chrome white iron. It is extremely tough construction material which can withstand continous use in heavy duty applications and allow SS pumps to transfer the abrasive and dense slurry.

4) motor insulation

F class is used to ensure reliable operation in heavy duty applications in temperatures up to+40℃, H class motor insulation can be used when the temperature is up to 70℃.

5)upport frame and strainer

A heavy duty mild steel fram with round base and stainer provide excellent stability and durability whilst preventing blockages.

6)Double mechanical seal

It provides excellent shaft sealing between electric motor and wet end. The seals are oil bath lubricated and feature carbon or ceramic seal faces in the wet end and tungsten ceramic face in the drive end,which can extend service life

7)Oil chamber leakage probe

The oil chamber incorporate a water leakage probe which detects when the water to oil ratio is too high and automatically shuts down the motor to prevent damage

8)Motor float switch

A float switch is located in the bottom of motor, it can detect the ingress of water and shut down the motor to prevent damage

9)Motor temperature sensors

Temperature sensor are located in the motor stator, when the temperature is beyond the setting figure and can shut down the motors.

10)Thrust bearing sensors

Temperature and moisture sensors are located in the motor thrust bearings to detect excessive temperature and the ingress of water and shut down the motors

11) Optional external cooling

Cooling jackets can be provided with external water supply in high temperature applications to keep motor cooling

Specifications of ZJQ600-30-110 110kw heavy duty submersible sand pump with controller box

Model – ZJQ600-30-110
Flow capacity – 600m3/h
Pump head – 30m
Power – 110Kw
Rotation Speed – 980Rpm
Outlet – 250mm or 10 inch
Max passing diameter – 35mm
Power supply – 3 phase 380V 50HZ

110KW Mining Submersible Pump used for Reservoir Dredging

10 inch mining submersible pump ( also named the 10 inch submersible slurry pump or submersible dredge pump) is one water conservancy machinery, which puts the electrical motor and mechanical pump on the same axis to make it running reliably and efficiently.

The overflow components of this submersible sand pump are made of alloy and have a high degree of wear resistance. The bottom mixing impeller can directly contact the sand layer, and the sand absorbing effect is good. The motor adopts water-cooled motor, which has high specification for insulation and protection grade, which fully meets the requirements of underwater operation. And the 10 inch mining submersible pump adds protection devices (inlet protection, overload protection). When performing underwater operations, the operator cannot observe the naked eye, so when the fault occurs, the signal can be self-issued to protect the sand suction pump from damage. This sand suction pump is mainly used in tailing cleaning, dredging and dredging of rivers, sand pumping in inland lakes, and fine sand recovery in sedimentation tanks.

110kw 150hp water submersible pump

110kw 150hp deep well pump diameter of 10 12 22 24 inches submersible pump. Motor power 150hp, rated current 223.4A. Mainly used for water diversion from Wells, rivers, seas and lakes; Farmland/water irrigation; Aquaculture; Provision of water or drainage systems for urban, industrial and livestock facilities; Fetch water in the mountains;Submersible pump structure is simple, motor and pump integration, installation, maintenance, disassembly is convenient, vertical installation, occupies a small area, no pollution to the water source.

Pump diameter :10 12 22 24 inch 110kw well submersible pump
Flow range :74-1200 m3 / h
Head range :325 m
Voltage:380v/420v/660v/1140v or as required
Purpose: water pump
Materials: cast iron or stainless steel 304/316/316l/duplex stainless/904l
Installation: vertical
Frequency: 3 phase 50hz 60hz
