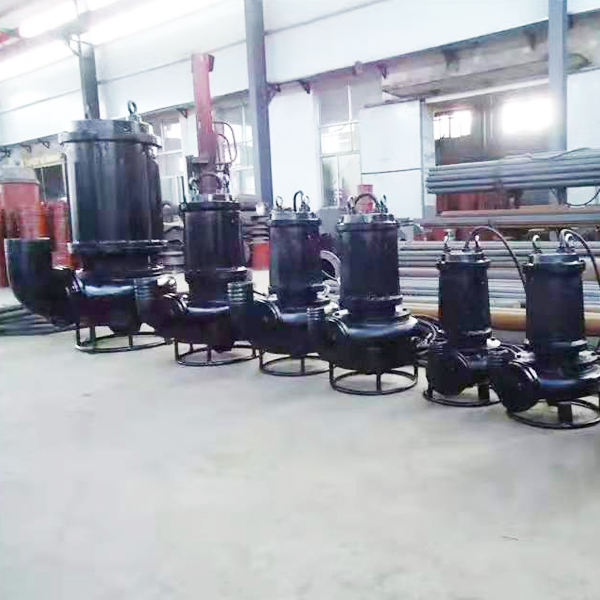

40HP Submersible Mud Pump 60Hz

40hp submersible dredging pump

ZJQ type submersible dredging pump in Double Mechanical Seal, provides excellent shaft sealing between the electric motor and wet ends. The seals are oil bath lubricated and feature carbon/ ceramic seal faces in the wet end and tungsten ceramic faces in the drive and tungsten ceramic faces in the drive end to provide excellent durability and service life across a wide range of duties and applications.

40hp Submersible Sewage Pump

WQ series submersible sewage pump designed for transfer waste water containing fabric, solids(Diamter between 20~145mm). The pump discharge diameter from 50 to 600mm, flow rate from 10 to 7000m³/h, discharge head from 5 to 60m, power various from 1.5 to 315kw.

WQ series submersible non-clogging sewage pump adopts unique single-vane or double-vanes impeller structure, which greatly improves the passing solid capacity and can effectively pass 5 times of fiber material of pump diameter and solid particles of diameter of about 50% of pump diameter.

WQ series submersible non-clog sewage pump mechanical seal is equipped with a new type of hard tungsten carbide corrosion resistant material. At the same time, the seal is modified into a double-end seal to make it run in the oil chamber for a long time, and the pump can be continuously operated for more than 3,000 hours.

30kw 40hp 3 Phase Submersible Pump 18 – 335m3/H Flow High Efficiency

Pump parameter:7 8 10 12 14 Inches well submersible pump
Flow rate: 18-335m3/h
Head rate: 14-325m
Motor Power: 30kw/40hp submersible pump
Volatge: 380v/440v/480v/600v or As your request
Frequency: 3 phase 50hz/60hz
Material: Cast iron/Stainless steel
Install: vertical

High head and large capacity; Pump efficiency not less than 70%; Continuous running 2500 hours; More than 7 years life with clean water; Low noise and long lifetime; Water-filled motor, no water pollution

40 HP Submersible Pumps Applications and Benefits

Submersible pumps can be set on a steel drop pipe to the depth best for your specific testing or dewatering application. At SLAPK, our rental units are capable of flow rates from 20 to 900 GPM, and can be used at depths up to 1,000 feet. To ensure reliable operation in any environment, we use Franklin electric motors with Grundfos, Berkley or Aeromotor pump ends. Each pump is also tested in our shop to ensure the proper flows for your job.

Potential applications for a submersible pump include:

Industrial — Submersible pumps are used in many industrial applications, including oil and gas drilling, water removal and more.
Agricultural — Agribusinesses use submersible pumps as part of sophisticated irrigation and dewatering systems, as well as for remediating damage caused by seasonal flooding.

Municipal— Submersible pumps are an important component of many sewage treatment plants, and they are used in residential septic tank cleaning operations.

There are multiple factors to consider when renting a submersible pump from SLAPK. To meet the needs of organizations of all sizes, we have one of the largest inventories of rental pumps in the country, with multiple pump head and motor configurations availabl
