Good Price Sump Slurry Pump

What is a sump pump?

A sump pump is a pump used to remove water that has accumulated in a water-collecting sump basin, commonly found in the basement of homes. … Sump pumps are used where basement flooding happens regularly and to solve dampness where the water table is above the foundation of a home.

What is a slurry sump pump?

For sump pump, which is used to pump slurry can be named slurry sump pump. Our V series slurry pump is designed to pump slurry. Also its a kind of sump pump, so we can call it slurry sump pump.

China Best 20/18 Slurry Pump Goog Price list – VS Vertical Sump Slurry Pump

VS pumps are vertical, centrifugal slurry pumps submerged in sump to work.They are designed for delivering abrasive,large particle and high density slurries.These pumps have no need of any shaft seal and sealing water. They can also be operated normally for insufficient suction duties.Wet parts of type VS pump are made of abrasion-resistant metal. All parts of type VSR pump immersed in liquid are lined with rubber outer liner.They are suited to transport non-edge angle abrasive slurry.

Sump Slurry Pump

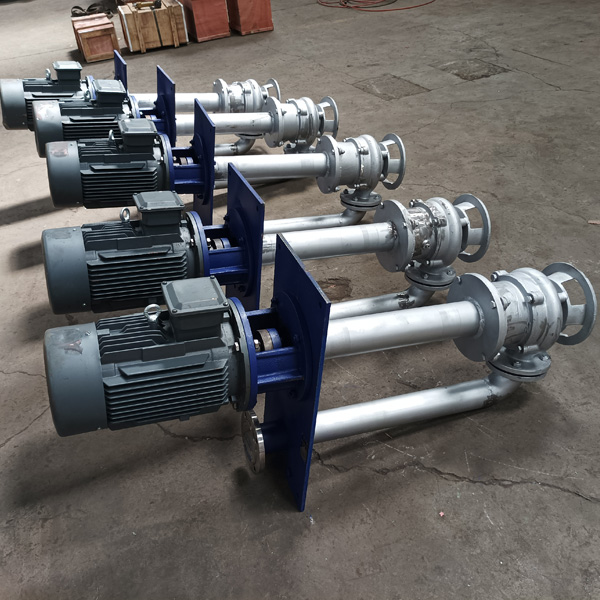

VS sump slurry pump is a single-stage, single suction cantilever structure. The hydraulic components of the pump are connected with the bearing seat, support seat and connecting pipe. The liquid is discharged from the liquid outlet pipe components. The impeller of the pump is a semi open impeller, and the mixing blade is set at the inlet extension of the impeller blade. The main feature of the pump is that the pump shaft at the underwater part has sufficient stiffness, and there is no bearing between the impeller and the pump shell, Without shaft seal, the medium containing large concentration of fixed particles can be transported. The length of the pump inserted into the liquid is between 800-2000mm. If necessary, it can be equipped with a suction pipe. The shaft seal uses a larger pump to insert into the liquid for operation without shaft seal. The transmission is installed on the motor support and support seat by a vertical motor and connected with the pump by a coupling. The pump is connected with the motor through an elastic coupling. From the direction of the prime mover, the pump rotates clockwise.

Vertical slurry pump manufacturer

SHAFT– Different lengths of pump drive shafts are available to meet your working condition requests.

LARGE PARTICLE IMPELLERS– Large particle impellers are also available and enable passing unusually large solids.

BEARING ASSEMBLY–Maintenance friendly Bearing Assembly has heavy duty roller bearings, robust bearing housings, and a massive shaft.

CASING–The metal pumps have a heavy walled abrasive resistant chrome alloy. The rubber pumps have a molded rubber casing.

COLUMN AND DISCHARGE PIPE– The metal pump columns and discharge pipes are steel, and the rubber columns and discharge pipes are rubber covered.

UPPER STRAINERS– Snap in polyurethane strainers fit in column openings on the smaller sizes and steel strainers on the larger sizes.

LOWER STRAINER– Bolt on steel strainers on the metal pump and molded snap on polyurethane strainers on the rubber pumps.

Attention

1. Pay attention to the pump bearing temperature, which shall not exceed the external temperature by 35 degrees, but the maximum temperature shall not be greater than 75 degrees.

2. The oil cup shall be filled with calcium base grease to ensure normal lubrication of the bearing.

3. Replace the grease in the motor support oil cup within the first month of operation or after 100 hours of operation, and replace it every 2000 hours later.

4. Check the elastic coupling regularly and pay attention to the temperature rise of motor bearing.

5. In case of noise or unusual sound during running, stop the machine immediately for inspection.

6. The sump slurry pump shall be inspected periodically every 2000 hours of operation. The friction loss of the clearance between the impeller and the pump body (or pump cover) shall not be too large, and the maximum clearance shall not exceed 1.5mm. If it exceeds, the impeller or front cover can be replaced.

7. When the pump works for 6 hours, check the mechanical seal and repair or replace it according to the wear degree, otherwise the pump shaft and bearing will be damaged.
