Submersible sewage pump is made up of motor and pump, which are separated through oil isolation room and mechanical seal, it is short in length that motor and pump share the same axle (rotor), the structure is compact.
E-mail: marketing@apkpump.com
WhatsApp: +86 175 3718 7726

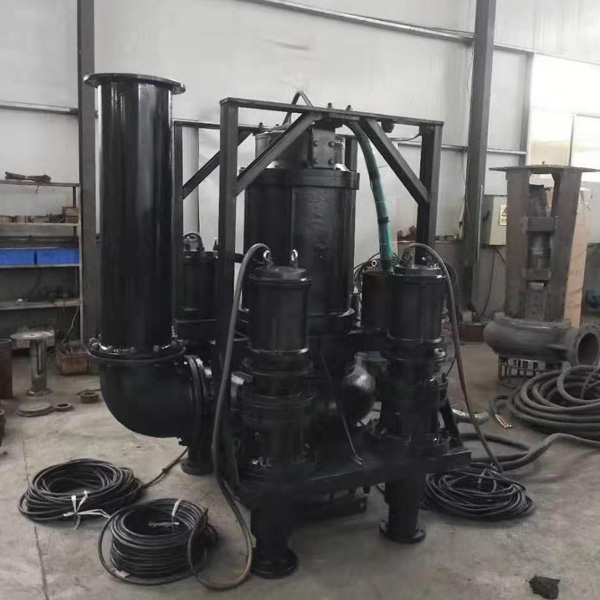

Hydraulic submersible sand slurry pump are designed to handle a wide range of slurries and abrasive particles in submersible applications in mining and insustry.
Centrifugal submersible pump for sand barge are avaliable in 72 different models in sizes ranging from 80mm to 400mm(3.15-16 inches) discharge and are capable of flow rates from 23 to 2400 cubic meters per hour(100- 10560USGPM) and head up to 64 metres(210ft).
Centrifugal submersible pump for sand barge can pass solids up to 60mm(2.4inches) in diameter enabling them to transfer dense slurries with large abrasive particles.
| Working Principle: | Centrifugal, submerged, vertical |
| Main applications: | Sewage Water |
| Driver: | Electric motor |
| Power Specs: | 220/380/415V 3phase, 110/220/240V single phase; 50hz/60hz |
| Max. fluid temperature: | 80°C(176°F) |
| Type of connection: | Flange, Fast coupling, Elbow |
| Installation position: | Vertical |
| Casing material: | Cast iron, Stainless steel |
| Shaft seal type: | Double Mechanical seal |
| Maximum free passage: | 50% of caliber diameter |
| Maximum drive rating: | 315KW(420HP) |
| Maximum caliber: | 500mm(20nch) |
| Max discharge-side pressure: | 0.36MPa(3.6bar) |
| Maximum head: | 60m |
| Flow rate range: | 7-2650m3/h(30.8-11660US.GPM |
SLAPK Pumps boasts a complete workshop where we assemble our centrifugal pumps. We conduct machining, assembly, and testing on every product we create. We do this to meet our stringent Customer Satisfaction policy.
SLAPK Is A Company Dedicated To Research, Development, Manufacturing And Installation Of Pump Systems. SLAPK Has Been Working In The Pump Industry For 20 Years.
In SLAPK, Devoting To Offer Customers The Greatest Value And Satisfaction Is Our Target. Each Product Undergoes Comprehensive Production Testing To Verify The Quality Standards Of Each Product.
