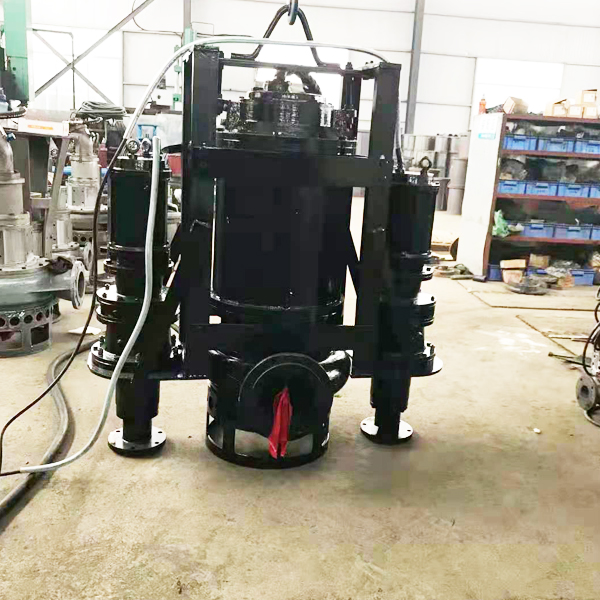

High Chrome Alloy Submersible Pump For Wet Sand Suction

Electric High Chrome Alloy Submersible Sand Slurry Pump

The product is designed and manufactured by domestic and oversea advanced technologies. Besides the main impeller, the bottom of the pump is additionally provided with a set of agitation impeller which can spray the deposited sludge into turbulent flow.

The unique mechanical seal device can effectively balance the pressure inside and outside the oil chamber, so as to protect the reliability of the mechanical seal to the maximum extent.

The motor adopts various protective measures such as overheat protection, water inlet detecting protection, and can operate safely for a long term in harsh working condition.

High Chrome Submersible Pump For Slurry And Sand

ZJQ series submersible is duarable electro slurry pump, it can deliver the abrasive and high denstity slurry in mining, civil construction etc.

1) large cut water clearance: allow the easy passage of large solids and reduce wear

2) Intergral aigitator: 27% high chrome agitator help the pumping of slurries by breaking up large particles and agitating high concentrations of solids

3) heavy duty construction: high chrome spare parts can withstand continous use in heavy duty applications and allows pump to transfer abrasive and dense slurry with minimal wear.

4) Motor Insulation: F class motor ensure reliable operation in temperature up to+ 40 centrigrade, H class allow operating temperature up to 70 centrigrade

5) support frame and stainer: mild steel frame with round base and stainer prevent blockages

6) double mechanical seal:it provide excellent shaft sealing with the electric motor and wet ends

High Chrome Alloy Submersible Pump For Wet Sand Suction Application

• Rivers, lakes, sea, reservoirs, pumping sand.
• Rivers, lakes, reservoirs, pumping port dredging silt.
• Pumping sand beneficiation: Select iron sand pumping, pumping sand gold, rare earths.
• Sewage treatment plant settling ponds cleanup.
• Municipal pipelines, storm water pumping station, hydroelectric sediment cleanup.
• Construction (sinking bridge construction, etc.) discharge of sediment, mud.
• Steel plant blast furnace slag, slag, pumping iron oxide delivery.
• Concentrator tailings, slag, slurry transportation.
• Coal cinder, coal, coal slurry cleanup.
• Power plant fly ash, coal, coal slurry transportation.
• To learn all kinds of diamond sand, quartz sand, slag solid particles.

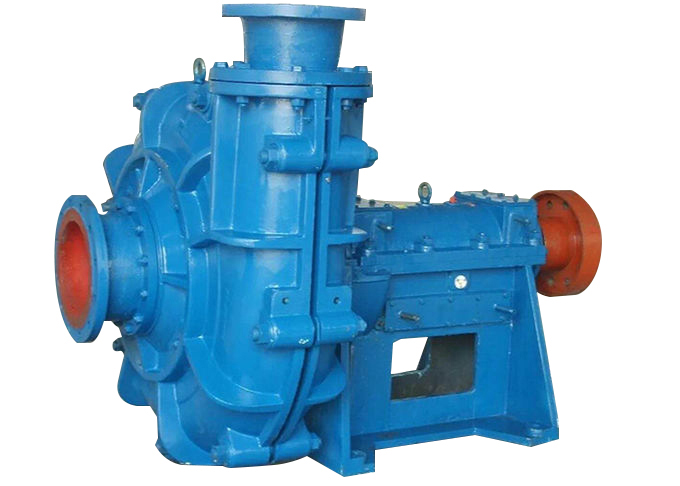

High Chrome Alloy Light Sand Gravel Suction Pump For Boat , Speed 600 – 1400r / min

Sand suction dredging pump is mainly used for continuous transportation of highly abrasive materials which are too large to be transported by normal slurry pump. This sand suction dredging pumps are mainly horizontal centrifugal pumps with single pump covering structure. The special clamp is used for fixing the pump body and the pump casing. It is easy to install and use.

Gravel pump is single-stage single-suction horizontal centrifugal pump, connected directly or by belt. It is light, good anti-cavitation performance and easy to install. It is applied to conveying of sands, mud and slurry with bigger solid partices.

Gravel pump is consisted by casing, seal devices, bearing devices and frame. It is lubricated by grease. The materials of working parts are wear-resistance alloy or alloy steel, the hardness is no less than 58HRC.

Model no	Max power of Motor (kw)	Flow rate (m3/h)	Head (m)	Speed (r/min)	NPSHr (m)	Efficiency(%)
6/4D-G	60	36-250	5-52	600-1400	2.5-3.5	58
8/6E-G	120	126-576	6-45	800-1400	3-4.5	60
10/8S-G	560	216-936	8-52	500-1000	3-7.5	65
10/8S-GH	560	180-1440	24-80	500-950	2.5-5	72
12/10G-G	560	360-1440	10-60	400-850	1.5-4.5	65
12/10TU-G	1200	288-2808	16-80	350-700	2-10	73
14/12TU-G	1200	576-3024	8-70	300-700	2-8	68
16/14G-G	600	72-3600	18-44	300-500	3-9	70
16/14G-G	1200	324-3600	26-70	300-500	3-6	72
