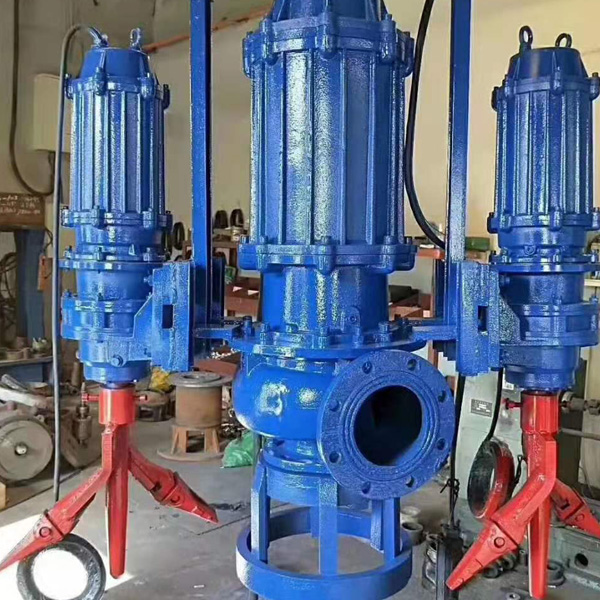

High Quality Electric Submersible Dredging Pump

Submersible Electric Dredge Pump on Dredger

The submersible electric dredge pump is a submersible three-phase portable slurry pump, it is equipped with a high-chromium alloy agitator which helps to inhale the sediment smoothly. The electric submersible dredge pump has a very high efficiency and quality compared with ordinary cast iron materials. The wear parts are made of wear-resistant material, it has very high durability.

The special engineered main impeller adds a set of stirring impellers at the bottom, which can spray the deposited slag into a mixed liquid of water and solid particles. The water pump can achieve high-concentration delivery without auxiliary devices. The unique sealing device can effectively balance the pressure inside and outside the oil chamber, so that the pressure at both ends of the mechanical seal is balanced, ensuring the reliable operation of the mechanical seal to the greatest extent, and greatly extending its service life. The motor can increase the water inlet detection, according to user requirements. Various protection devices such as overheating enable the product to operate safely for a long time under severe working conditions.

High Quality Electric Submersible Dredge Pumps

▪ Electric Motors are all Class H insulated and have a minimum 1.25 service factor.

▪ Submersible Dredge Pumps are equipped with a unique lip seal system to prevent material from penetrating the seal.

▪ High quality abrasion resistance materials ensure long life of all components.

▪ Temperature sensor, embedded in the electric motor, and Moisture sensor, in the oil chamber, are available options to protect the pump in the most demanding application.

▪ Adjustable Hi-Chrome suction side Wear Plate maintains maximum performance for extended periods by a simple adjustment of the gap between the wear plate and the impeller.

▪ Replaceable wear parts: casings, impellers, wear plates all can be replaced independently.

▪ Lube Oil Inspection Ports: a wide angle port outside the submersible slurry pump ensures easy inspection of shaft seal oil levels as well as providing easy access for oil replacement.

▪ The excavating action is created by the Hi-Chrome agitator blades that lift settled sediments which then get sucked into the submersible Dredge pump, creating a continuous flow of concentrated slurry.

Submersible Dredging/Slurries/Solids

SLAPK heavy duty submersible agitator pumps are designed for handling slurries with a high content of abrasive solids. The pumps have been extremely successful for clients operating in specialized sectors who face severe conditions and difficult applications including dredging in the marine and energy sectors as well as in mining for minerals and other materials. Handling slurries with up to 70% solids content and specific gravity up to 1.7, with a capacity of up to 5300 gpm at 275 feet of head.
